5.1.2.5 The diagnosis menu

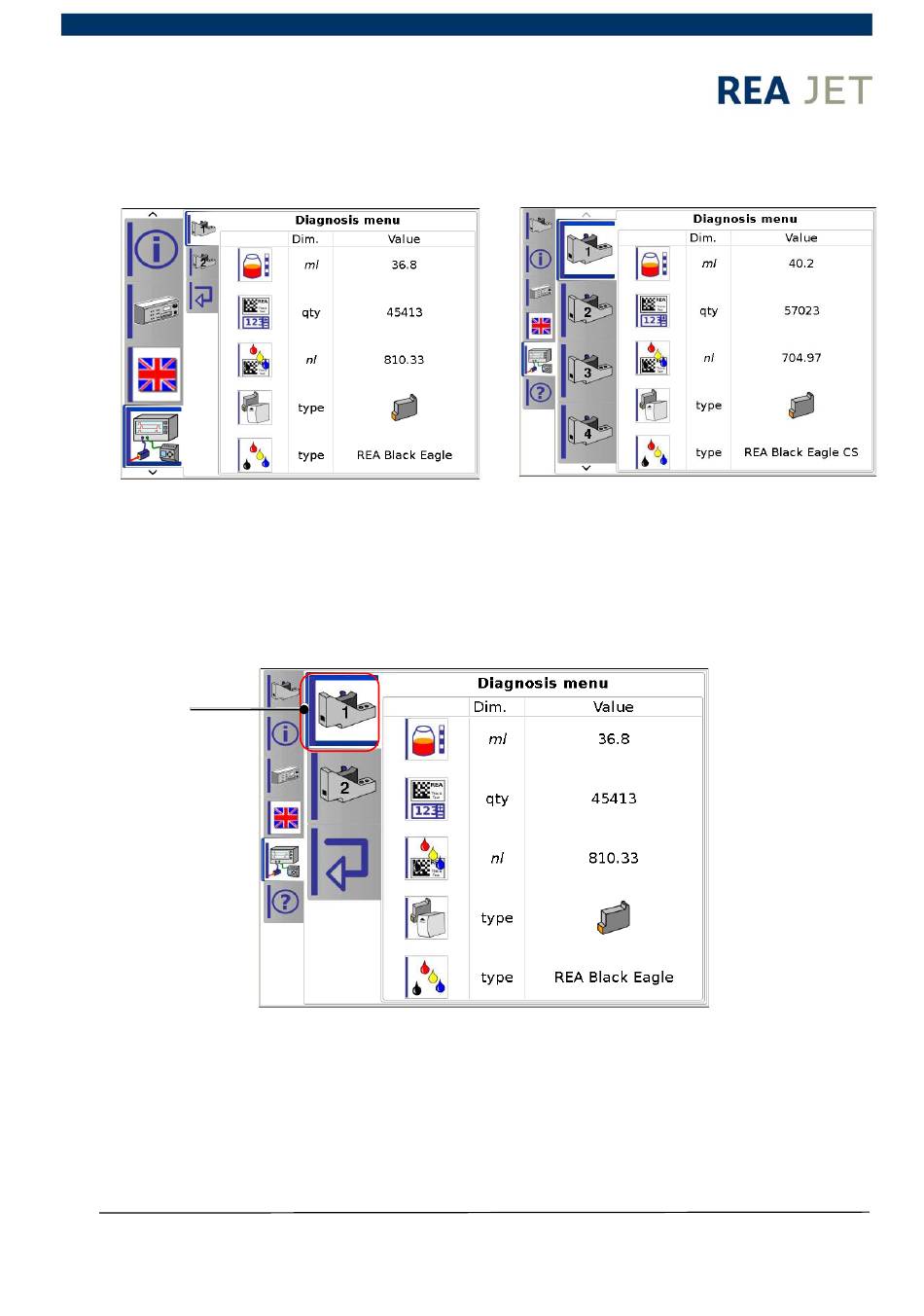

Figure 226: Diagnosis menu REA JET HR pro 2K/4K
The diagnosis menu of the REA JET HR pro 2K/4K provides the current display of the cartridge
status.
The following illustration shows the diagnosis menu of a REA JET HR pro 2K with the current
cartridge status. The selection of print head 1 or 2 is done with the rotary knob. To leave the menu,
go the 'Back' and press the rotary knob.
1
Figure 227: Display print head 1
