6.2.6 Web server
REA JET HR pro 2K/4K is equipped with a web server. It enables full operation and
parameterization of the marking system with a graphic user guidance. The web server offers the
following benefits:

Simple parameterization (set up) and operation of the marking system via PC, without
installation of additional software, with all standard Internet browsers.

Password-protected access with each standard web browser (e.g. Mozilla Firefox, Microsoft
Internet Explorer, Google Chrome, ...).

Reduced training for operators through the use of known programs (Internet browser).

System-/plant-wide set up and administration of marking systems via any standard network.
The connection to the web server can be established two ways.

Enter the IP address of REA JET HR pro 2K/4K in the address line of the web browser.

Double click in the link embedded in the static website of REA JET HR pro 2K/4K. This is
marked in
Figure 236
Access data to the web server are marked
If you have access points in your network for W-LAN and allow end devices with proprietary web
browsers, such as Android phones or Apple iPhone, this is an elegant alternative for the mobile
monitoring of the installed device basis. REA offers suitable apps to easily find devices via UPnP.
Instruction manual
REA JET HR pro 2K / 4K
V 3.5x_001 28.05.2015
with the no. 1.
Figure 236

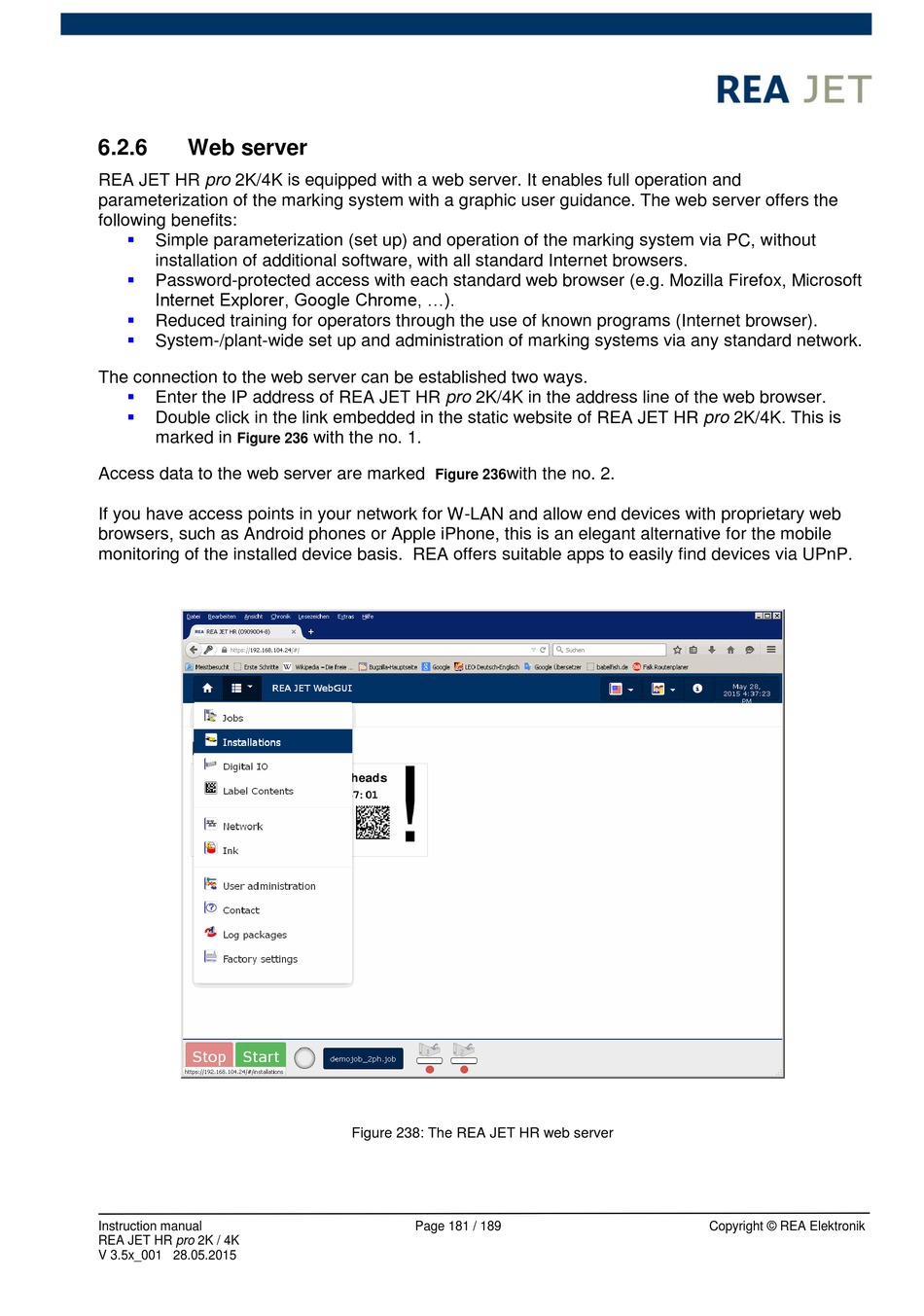

Figure 238: The REA JET HR web server
Page 181 / 189
with the no. 2.
