4.2.12.1.1

Assignment of the I/O connection (A8, A14)

Pin HR Name / Function
A A8:outlet 3 / A14: Outlet 7
C A8: Outlet 4 / A14: Outlet 8
E A8: Outlet 2 / A14: Outlet 6
G A8: Outlet 1 / A14: Outlet 5
J A8: Inlet 3 / A14: Inlet 9
L A8: Inlet 4 / A14: Inlet 10
M A8: Inlet 5 / A14: Inlet 11
N UB+ of the HR internal power
supply
O UB+ Connection for the HR
internal I/O circuit
P A8: Inlet 2 / A14: Inlet 8
R A8: Inlet 1 / A14: Inlet 7
S Mass connection for the HR
internal I/O circuit
T Mass of the HR internal power
supply
U A8: Inlet 6 / A14: Inlet 12
Table 22: Assignment of the I/O connection (=A8, A14)
The description of the I/O connection cable incl. pin
assignment and wire colors can be found in chapter
4.2.21.3.1 on page 142.
Instruction manual
REA JET HR pro 2K / 4K
V 3.5x_001 28.05.2015
Value
I/O
24V DC
24V DC
Mass

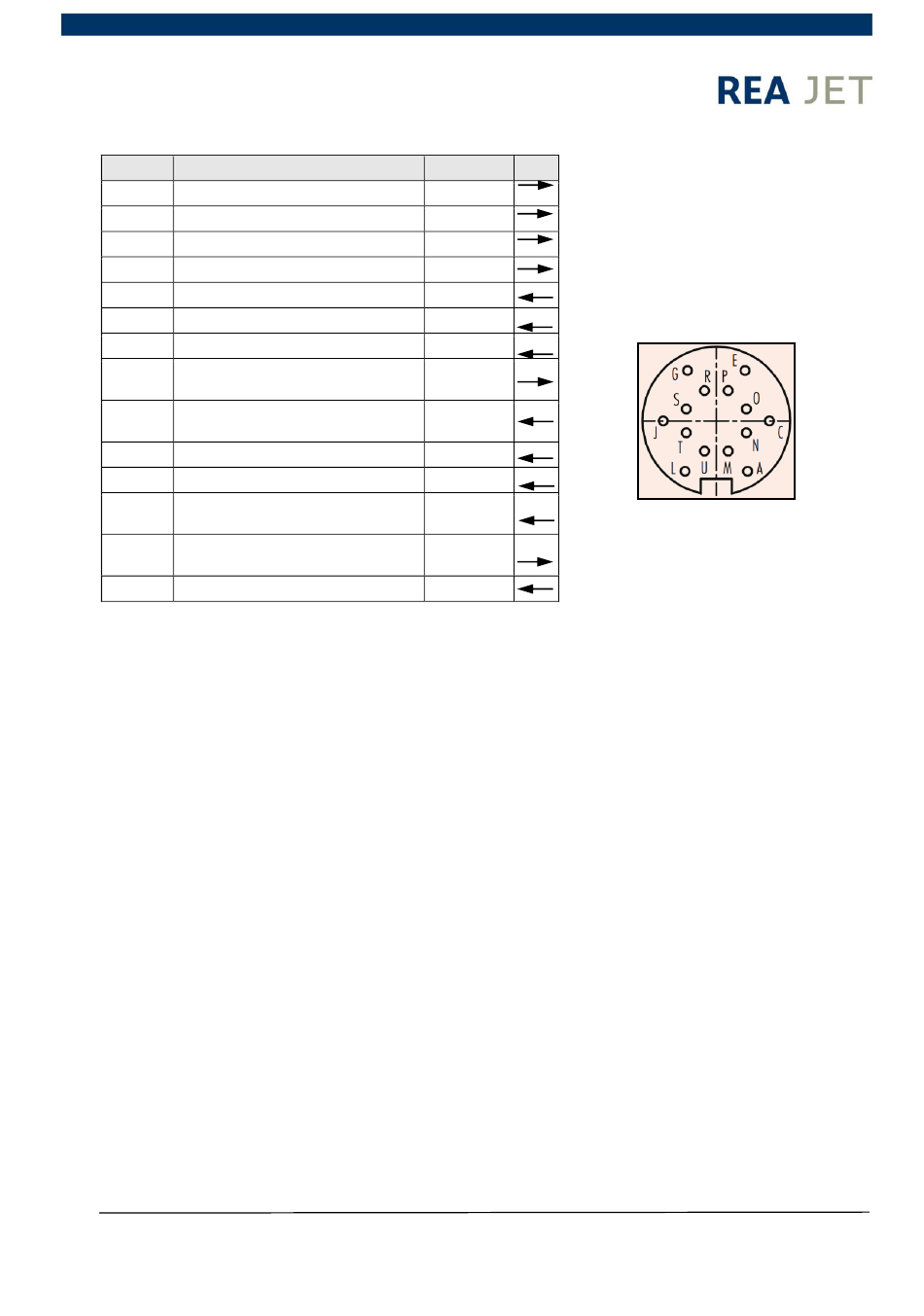

Figure 158: View of the soldering side of
Mass
Page 118 / 189
connector
