REA JET HR pro 2K User Manual page 3

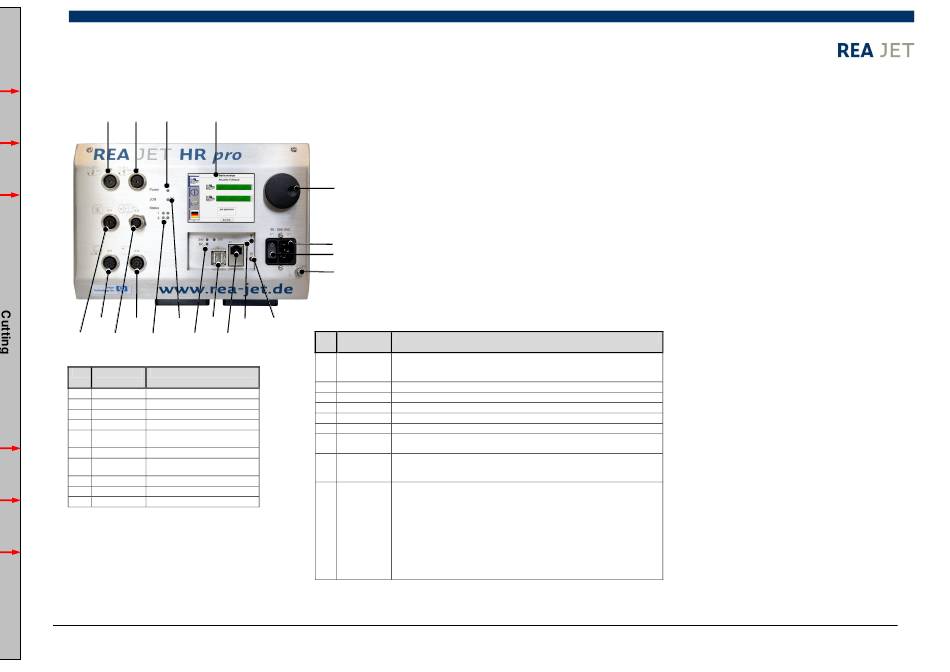

REA JET HR pro 2K
A15 A16 B1 B2
A7 A5 B8 A4
A8 A6 B9 B7 A3
No. Connection Description
descriptor
A1 X1 Mains connection
A2 X2 Ground bolt, M5
A3 X3
Ethernet
A4 X4, X5 USB connections
A5 X15 Bulk ink supply 1
(currently not
available)
A6 X13 Shaft encoder 1
A7 X16 RS232 / RS422
(availability
based on firmware version)
A8 X14 Digital inputs/outputs 1
A15 X12 Print head 2
A16 X11 Print head 1
Instruction manual
REA JET HR pro 2K/4K
V 3.5x_001 28.05.2015
B3
A1
B4
A2
B6 B5
No. Connection
descriptor
B1 Power Power LED: When operational, the power LED emits a green light. While
booting REA JET HR pro 2K the LED is orange. The LED is also green if
the display light has been deactivated by the power-save mode.
B2 Display
B3 S2 Rotary knob with touch function
B4 S1 Power switch
B5 R Reset. The device will be restarted
B6 T
Reset to factory settings
B7 5V, 24V, These LEDs represent the status of the power supply voltages 5V, 24V
30V and 30V. Ensure that all voltages are available when starting the device.
B8 JOB
The JOB LED indicates an activated print job. If this LED is green, labeling
can be initiated by triggering a print job. Start is only possible if a print job
had been previously assigned.
B9 Status Status LEDs: Shows the status of the connected print heads.
Left LED: green
Print head connected, print cartridge with chip inserted and locking lever
closed.
Green flashing:
Print head connected, print cartridge without chip inserted and locking
lever closed.
Right LED: red
Print head error. Print head connection and no ink cartridge inserted or ink
cartridge inserted and locking lever is open.
Description
Page 3 / 189 Copyright © REA Elektronik
