The Device View Navigation Tree is displayed on the left side of the
browser window and allows you to perform operations for the
Webcache.
The Device View Information area is displayed on the right side of the
browser and contains the device mimic and the Device Summary table.
Device Mimic

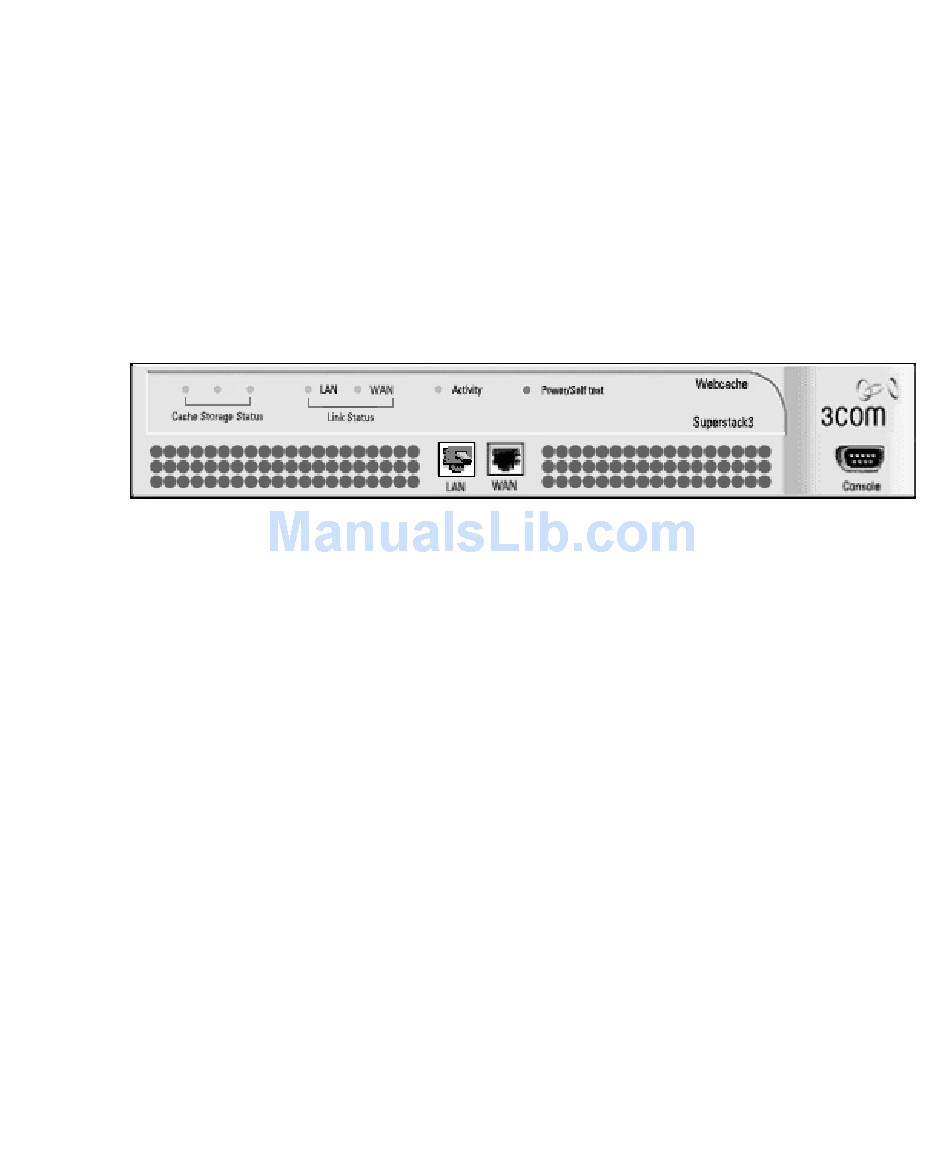

Figure 19 The Device Mimic
The device mimic is a virtual, interactive representation of the Webcache.
All of the ports on the Webcache are shown, even though the LAN, WAN
and Console ports are actually located on the rear of the unit. The device
mimic is periodically updated to reflect changes in the Webcache. You
can also perform certain operations by clicking on parts of the device
mimic called "hotspots":
Console Port Hotspot
I
The Console Port on the mimic is a "hotspot". Click the port to open
a pop-up menu that contains an operation which you can launch for
the console port.
The operation is Setup Console Port.
LAN Port Hotspot
I
The LAN Port on the mimic is a "hotspot". Click the port to open a
pop-up menu that contains an operation which you can launch for the
LAN port.
The operation is Clear Cache.
Unit Hotspot
I
The non-port area of the mimic is a "hotspot". Click anywhere on this
area to open a pop-up menu that contains operations which you can
launch for the Webcache as a whole.
The operations are:
