20 C 1: I
HAPTER NTRODUCING THE
Webcache — Rear
View Detail

Power Socket

Console Port

W
EBCACHE
LED Color
Activity LED
Green flashing The cache is active and caching is occurring.
Off
Power/Self test LED
Green
Green flashing The Webcache is either initializing or performing a software
Yellow
Off

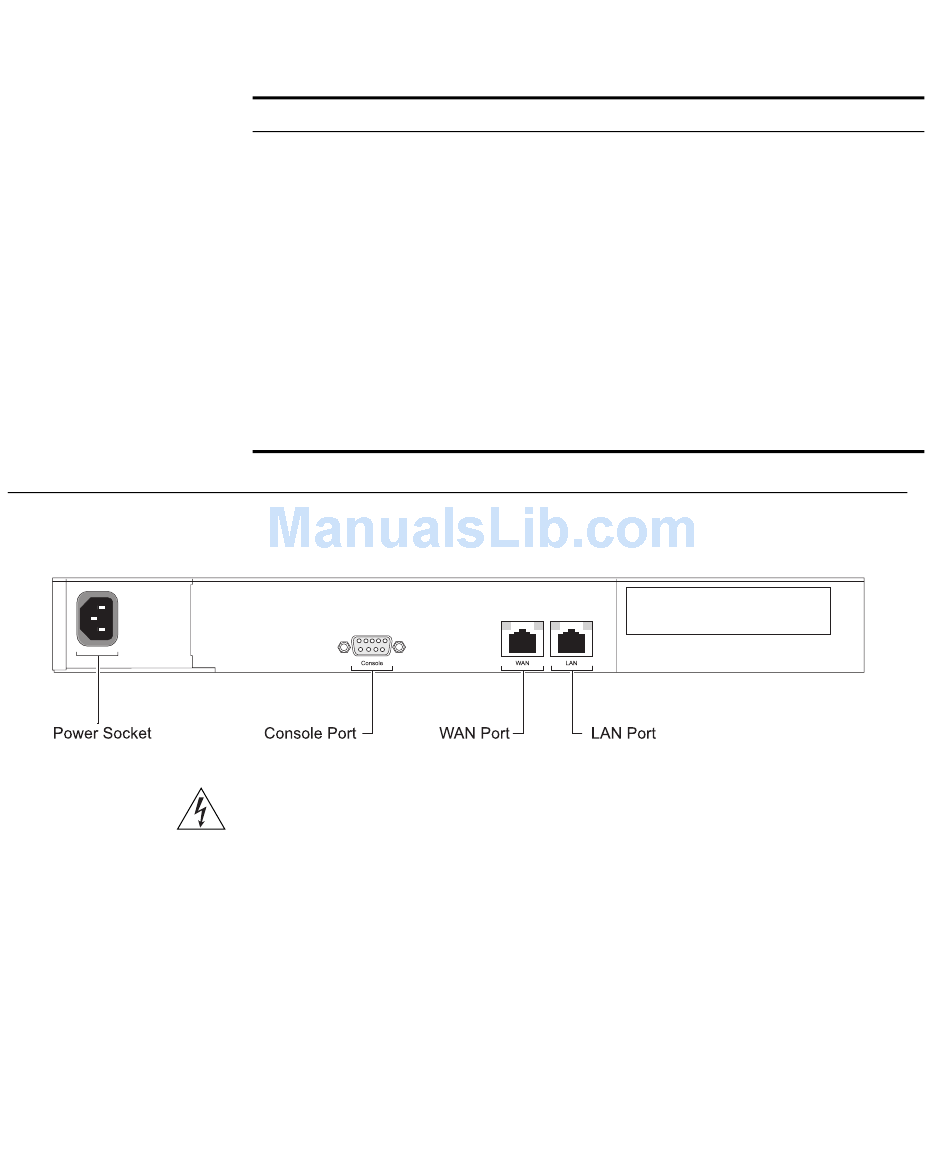

Figure 2 Webcache — Rear View
WARNING: WAN and LAN RJ-45 Ports. These are shielded RJ-45 data
sockets. They cannot be used as standard traditional telephone sockets, or to
connect the unit to a traditional PBX or public telephone network. Only
connect RJ-45 data connectors, Switches or Routers to these sockets.
Either shielded or unshielded data cables with shielded or unshielded
jacks can be connected to these data sockets.
The Webcache automatically adjusts its power setting to any supply
voltage in the range 90-240 VAC.
The console port allows you to connect a terminal, terminal emulator or
modem and perform remote or local out-of-band management. The
Indicates
The cache is not active. This is normal behavior for an idle
Webcache.
The Webcache is powered-up and operating normally.
upgrade.
The Webcache is powered-up but is not caching - a failure has
occurred.
The Webcache is not powered-up. This may indicate a power
failure.
