console port uses a standard null-modem cable and is set to 9600 baud,
8 data bits, no parity and 1 stop bit.

WAN Port

The WAN port is an auto-negotiating 10BASE-T/100BASE-TX RJ-45 port.
It is used to connect the Webcache to the network in an inline
deployment environment.
CAUTION: The Webcache does not support inline deployment in Version
1.0. You should not connect network cabling to the WAN port.

LAN Port

The LAN port is an auto-negotiating 10BASE-T/100BASE-TX RJ-45 port. It
is used to connect the Webcache to the network in either Proxy or
Transparent deployment environments. Web network traffic travels to
and from the Webcache via the LAN port. For more information, see
"Deploying the Webcache in Your Network" on page 33.
You must connect the LAN port to your network using an appropriate
network cable. For more information, see the "Cable Specifications and
Pin-outs" appendix on page 147.
WAN and LAN Port

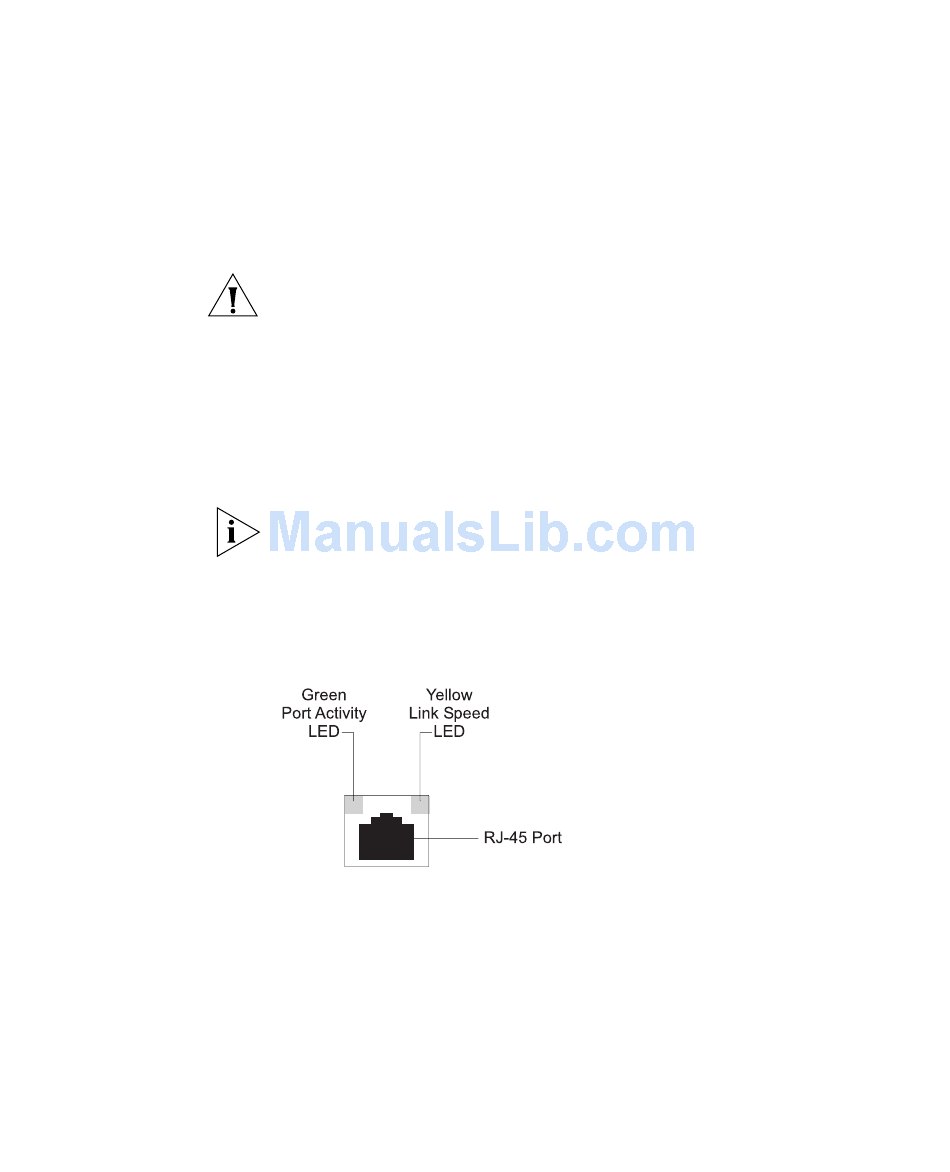

Figure 3 Webcache — WAN and LAN Port LEDs
LEDs
Table 4 lists LEDs visible on the rear of the Webcache, and how to read
their status according to color. For information on using the LEDs for
problem solving, see "Solving Problems Indicated by LEDs" on page 32.
