User Manual
Rack-Mounting the Webcache
The Webcache is 1U high and will fit in most standard
19-inch rack mounts.
CAUTION: The rear of the Webcache must be
supported. This is best achieved through the use of a
19-inch 4-posted rack.
CAUTION: Disconnect all cables from the Webcache
before continuing.
You must use the rack-mounting rails and screws
supplied with the Webcache. Damage caused to the
Webcache by using incorrect rails and screws
invalidates your warranty.
A Rack-Mounting Kit is supplied with the Webcache
which contains the items shown in Figure 1. The
rack-mounting rails and rack-mounting brackets are
attached to the Webcache. The adjustable brackets and
screws are contained within the Webcache packaging.
Part No. DMA1611-5AAA01
Published January 2002
S
S
UPER
TACK
R
M
ACK
OUNTING
®
3 W
EBCACHE
G
UIDE

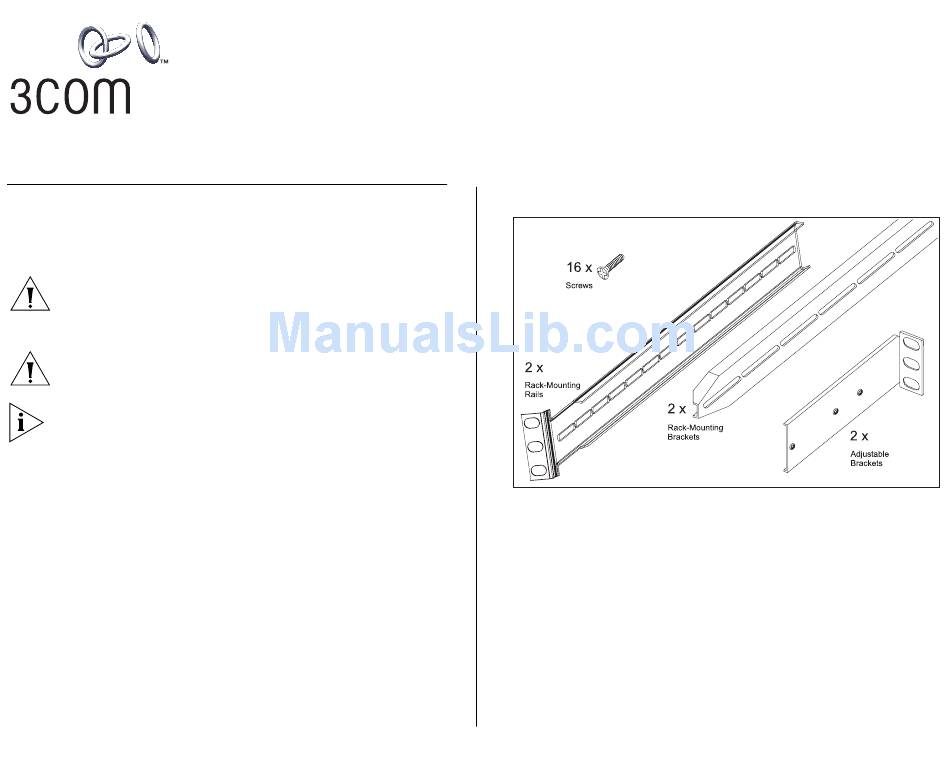

Figure 1 The Rack-Mounting Kit Contents
1000/3000
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for 3Com SuperStack 3C16115
Summary of Contents for 3Com SuperStack 3C16115
- Page 1 UPER Rack-Mounting the Webcache The Webcache is 1U high and will fit in most standard 19-inch rack mounts. CAUTION: The rear of the Webcache must be supported. This is best achieved through the use of a 19-inch 4-posted rack. CAUTION: Disconnect all cables from the Webcache before continuing.
- Page 2 ® 1000/3000 R UPER TACK EBCACHE To rack-mount your Webcache: Place the Webcache the right way up on a hard flat surface, with the front facing towards you. The rack-mounting brackets are attached to each side of the Webcache, as shown in Figure 2. Figure 2 Rack-Mounting Bracket Attached to the Webcache Slide the rack-mounting rails off the rack-mounting brackets on both sides of the Webcache.
- Page 3 Attach the rack-mounting rail to the front of the rack. To do this: Insert two screws through aligned openings in the front plate, rack and rack-mounting rail as shown in Figure 4. Tighten the screws with a suitable screwdriver. Figure 4 Fitting a Rack-Mounting Rail to the Front of the Rack Slide the rack-mounting brackets on the sides of the Webcache into the rack-mounting rails.
- Page 4 Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may not be registered in other countries. 3Com and SuperStack are registered trademarks of 3Com Corporation. The 3Com logo is a trademark of 3Com Corporation.
