Disconnecting And Removing The Lan+Modem Card; Disconnecting The Cables - 3Com 3CCFEM556 User Manual

10 C
HAPTER
3 To add a telephone set to the configuration, connect
the cable from the telephone to the telephone port
on the modem adapter, as shown in Figure 7. The
telephone port on the modem adapter is labeled with
a telephone icon.

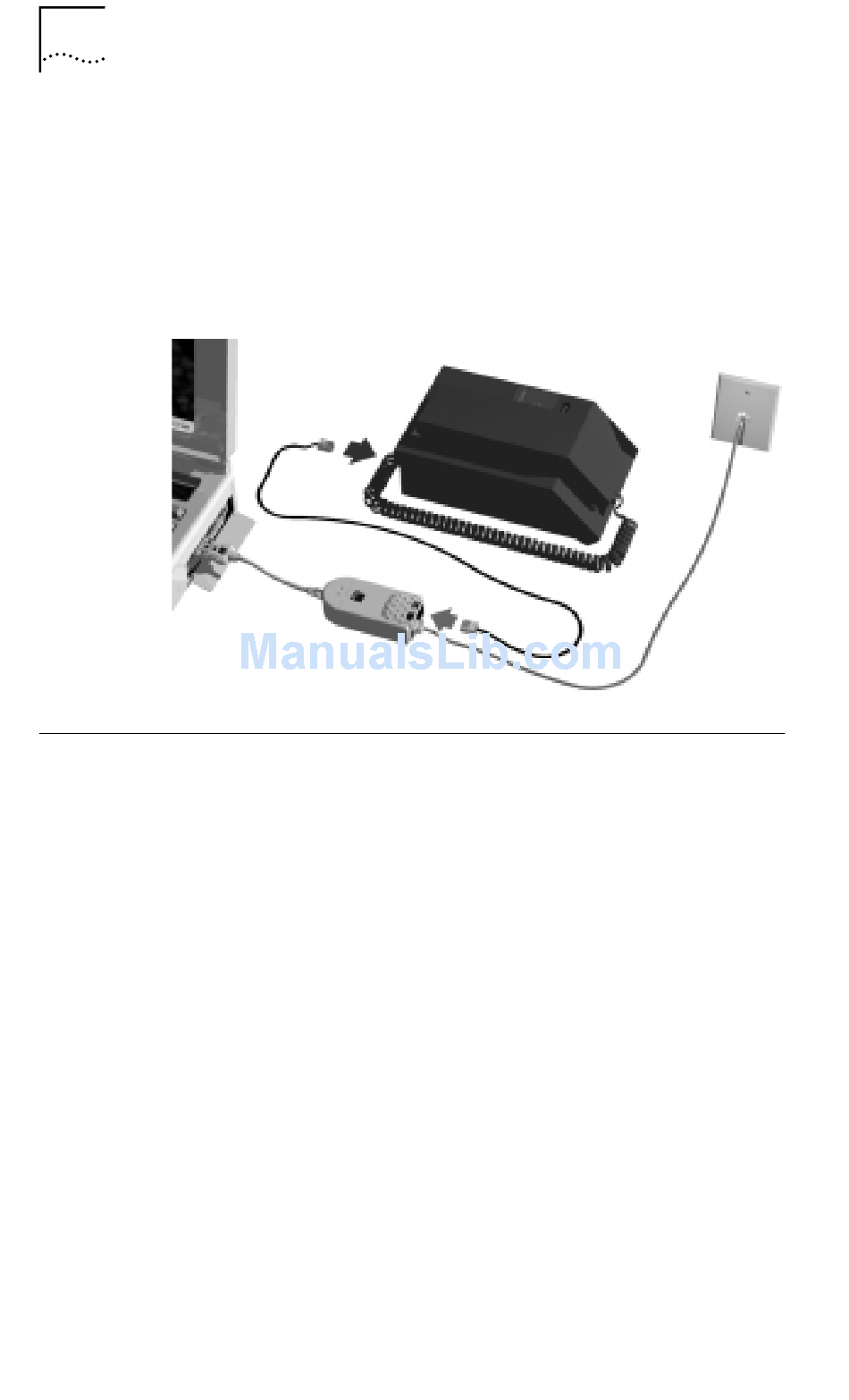

Figure 7 Adding a Telephone to the Modem Configuration

Disconnecting and Removing the LAN+Modem Card

Disconnecting the Cables

The LAN and modem cables are designed to lock in place
when you connect them to the card. Figure 8 shows the
location of the clips that unlock the connector so you can
remove it.
