Connecting to a Telephone Line

1 Attach the modem adapter to the modem port on the
LAN+Modem card. Refer to Figure 5.

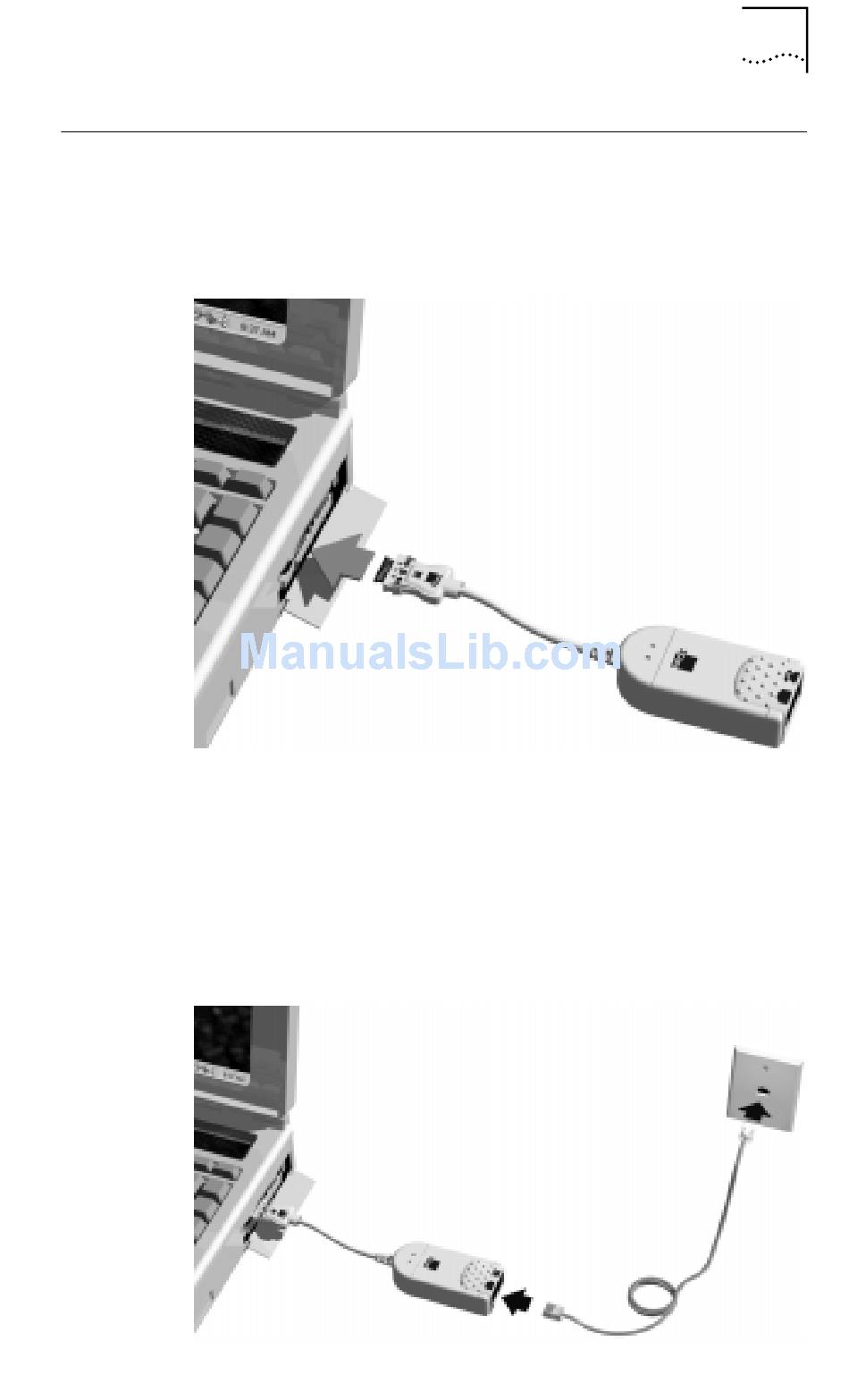

Figure 5 Connecting the Modem Adapter to the Card
2 Connect the RJ-11 telephone extension cable
(supplied with the LAN+Modem card) from the
telephone outlet to the line port of the modem
adapter, as shown in Figure 6.
The line port on the modem cable connector is labeled with
an RJ-11 icon. Attach the connector with the icon facing up.
Figure 6 Connecting the Modem Adapter to the Telephone Line
Connecting to a Telephone Line 9
