3Com OfficeConnect 3C3SH573BT Software Manual

3Com OfficeConnect 3C3SH573BT Software Manual

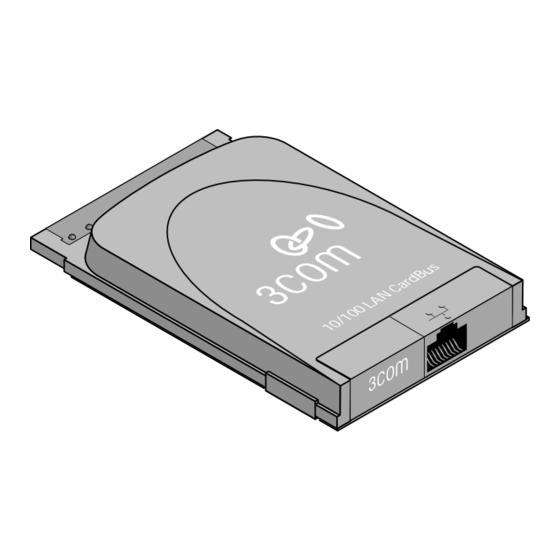

10/100 lan cardbus pc card
Hide thumbs Also See for OfficeConnect 3C3SH573BT:

Advertisement

Quick Links

Download this manual See also: User Manual
OfficeConnect
The following procedures explain how to configure the OfficeConnect 10/100 LAN CardBus PC Card for a
broadband connection on notebooks running the following operating systems: Windows 95, Windows 98,
Windows Millennium Edition (Windows Me), Windows 2000, and Windows NT 4.0.

Windows 95 and Windows 98

1 Select Start / Settings / Control Panel / Network .
2 Select TCP/IP -> FE573B-3Com 10/100 LAN CardBus-Fast Ethernet, and then click Properties .
3 If your ISP provided a specific IP address and subnet mask, select IP Address .
4 Click Specify an IP address: and type the IP and subnet mask addresses in their respective
text boxes.
http://www.3com.com/
http://www.3com.com/productreg
Published May 2001
Version 1.0.0
Broadband Connection
®
10/100 LAN CardBus PC Card
Configuring a

Advertisement

loading

Related Manuals for 3Com OfficeConnect 3C3SH573BT

Summary of Contents for 3Com OfficeConnect 3C3SH573BT

  • Page 1: Windows 95 And Windows 98

    1 Select Start / Settings / Control Panel / Network . 2 Select TCP/IP -> FE573B-3Com 10/100 LAN CardBus-Fast Ethernet, and then click Properties . 3 If your ISP provided a specific IP address and subnet mask, select IP Address .
  • Page 2 Configuring a Broadband Connection 5 If your ISP provided WINS server information, select WINS Configuration . 6 Click Enable WINS Resolution: and type the Primary WINS Server and Secondary WINS Server addresses. 7 If you were supplied with scope ID information, type it in the Scope ID: text box. If you were not supplied with scope ID information, leave the text box blank.
  • Page 3 9 If your ISP provided DNS information, select DNS Configuration. 10 Click Enable DNS and type the host and domain addresses in their respective text boxes. If you were provided with DNS server information only, type your computer name in the Host: text box and leave the Domain: text box blank.
  • Page 4 If you do not see the Network icon in the Control Panel, go to the Tools menu and select Folder Options . Click View , and select Display all Control Panel options and all folder contents . 2 In the Network window, select TCP/IP -> FE573B-3Com 10/100 LAN CardBus-Fast Ethernet and click Properties .
  • Page 5 7 If you were supplied with scope ID information, type it in the Scope ID: text box. If you were not supplied with scope ID information, leave the text box blank. 8 If your ISP provided gateway information, select Gateway and type the IP address(es) of the gateway(s) into the New gateway: text box.
  • Page 6 Configuring a Broadband Connection 9 If your ISP provided DNS information, select DNS Configuration . 10 Click Enable DNS and type the host and domain addresses in their respective text boxes. If you were provided with DNS server information only, type your computer name in the Host: text box and leave the Domain: text box blank.

  • Page 7: Windows 2000

    2 Right-click Local Area Connection and select Properties . The Local Area Connection Properties window will appear. 3 Verify that the Connect using: text box displays: FE573B-3Com 10/100 LAN CardBus-Fast Ethernet . NOTE: You may have more than one local area connection.
  • Page 8 Configuring a Broadband Connection 8 If you received DNS server information, click Use the following DNS server addresses: and type the DNS server IP address(es) in their respective text boxes. 9 If your ISP provided WINS server information, click Advanced… in the Internet Protocol (TCP/IP) Properties window.

  • Page 9: Windows Nt

    4 If your ISP provided a specific IP address and subnet mask, select IP Address. 5 Select FE573B-3Com 10/100 LAN CardBus-Fast Ethernet from the Adapter: drop down list. 6 Click Specify an IP address and type the IP and subnet mask addresses in their respective text boxes.
  • Page 10 After typing each suffix, click Add. The suffix(es) will appear in the text field below the text box. 11 If your ISP provided WINS server information, select WINS Address. 12 Select FE573B-3Com 10/100 LAN CardBus-Fast Ethernet from the Adapter: drop down list. 13 Type the primary and secondary server addresses in their respective text boxes.
  • Page 11 The PC Card is now configured for broadband service. Copyright © 2001 3Com Corporation. All rights reserved. 3Com is a registered trademark and the 3Com logo is a trademark of 3Com Corporation. Other brand and product names may be registered trademarks or trademarks of their respective holders.
