BenchCel Microplate Handler User Guide

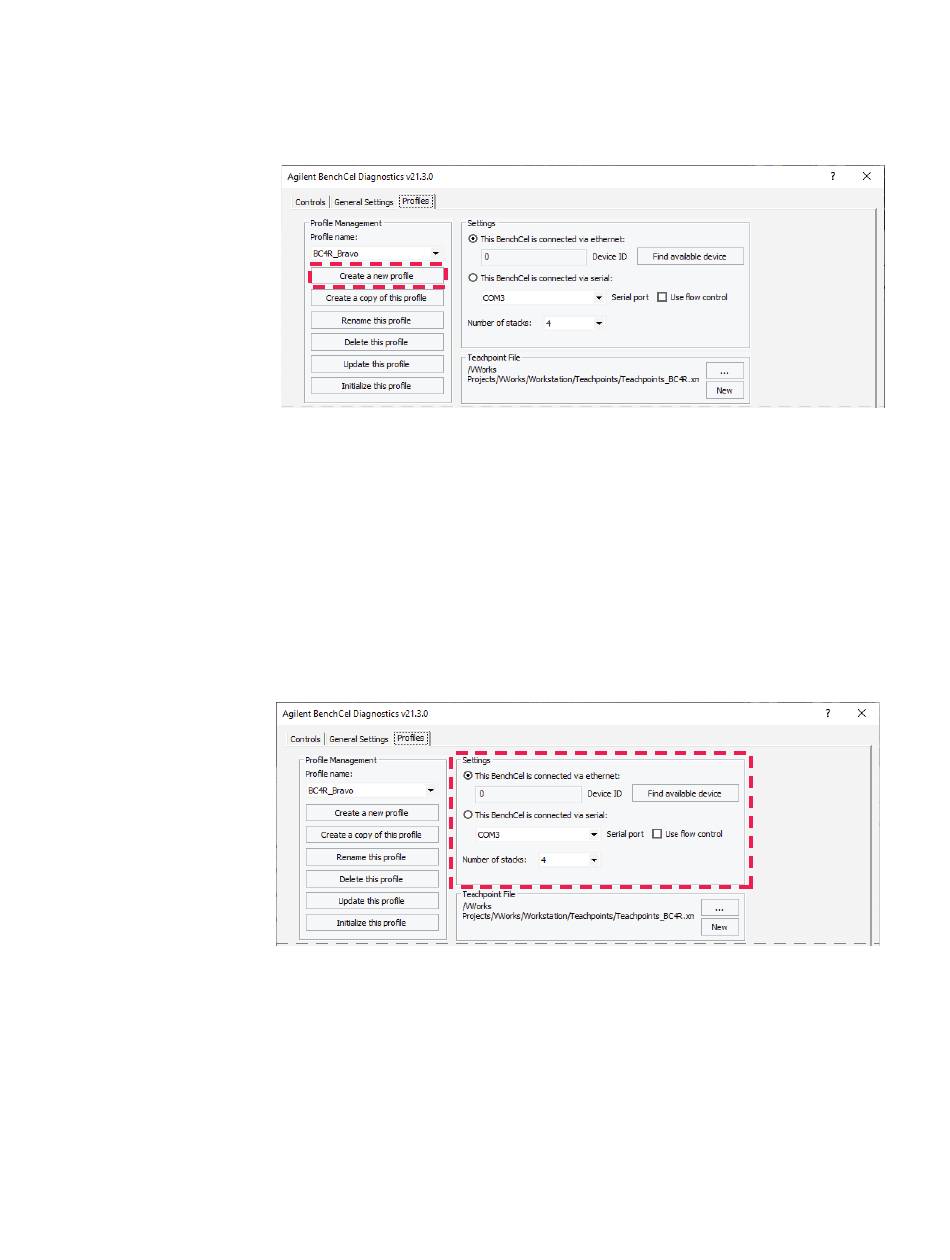

To create a BenchCel profile:
1
Open BenchCel Diagnostics.
2
On the Profiles page, click Create a new profile.
3
In the Create Profile dialog box, type a name, and click OK. Use a profile name that
identifies the specific configuration, for example, you can use the device serial
number.
The change appears in the log area at the bottom of the page. For a description of
this area, see "About the profile logs" on page
VWorks Plus only. If an audit trail is being logged for records in the development
state, the Audit Comment dialog box opens. Select or type the audit comment, and
then click OK.
4
In the Settings area, select one of the following:
•
Ethernet connection. Select This BenchCel is connected via ethernet, and
proceed to step
•
Serial connection. Select This BenchCel is connected via serial, and go to
5
Ethernet connection only. Click Find available device to select the device to
associate with the profile. In the Discovered BioNet Devices dialog box that opens:
a
Select the correct Ethernet adapter for the device connection. A list of devices
appear.
b
In the list of devices that appear, select the BenchCel device. If you have
multiple BenchCel devices on the network, use the MAC Address to identify the
BenchCel device you want. To successfully communicate with the BenchCel
device, the Status column must display New or Matched for the device.
5.
4 Setting up the BenchCel device
Creating profiles
80.
step 6.
77
