Labware racks
24
The labware racks are available in two models:
•
Front-load rack in 250-mm and 660-mm sizes
•
Top-load rack in 660-mm and 860-mm sizes
Both rack models have the following basic components.

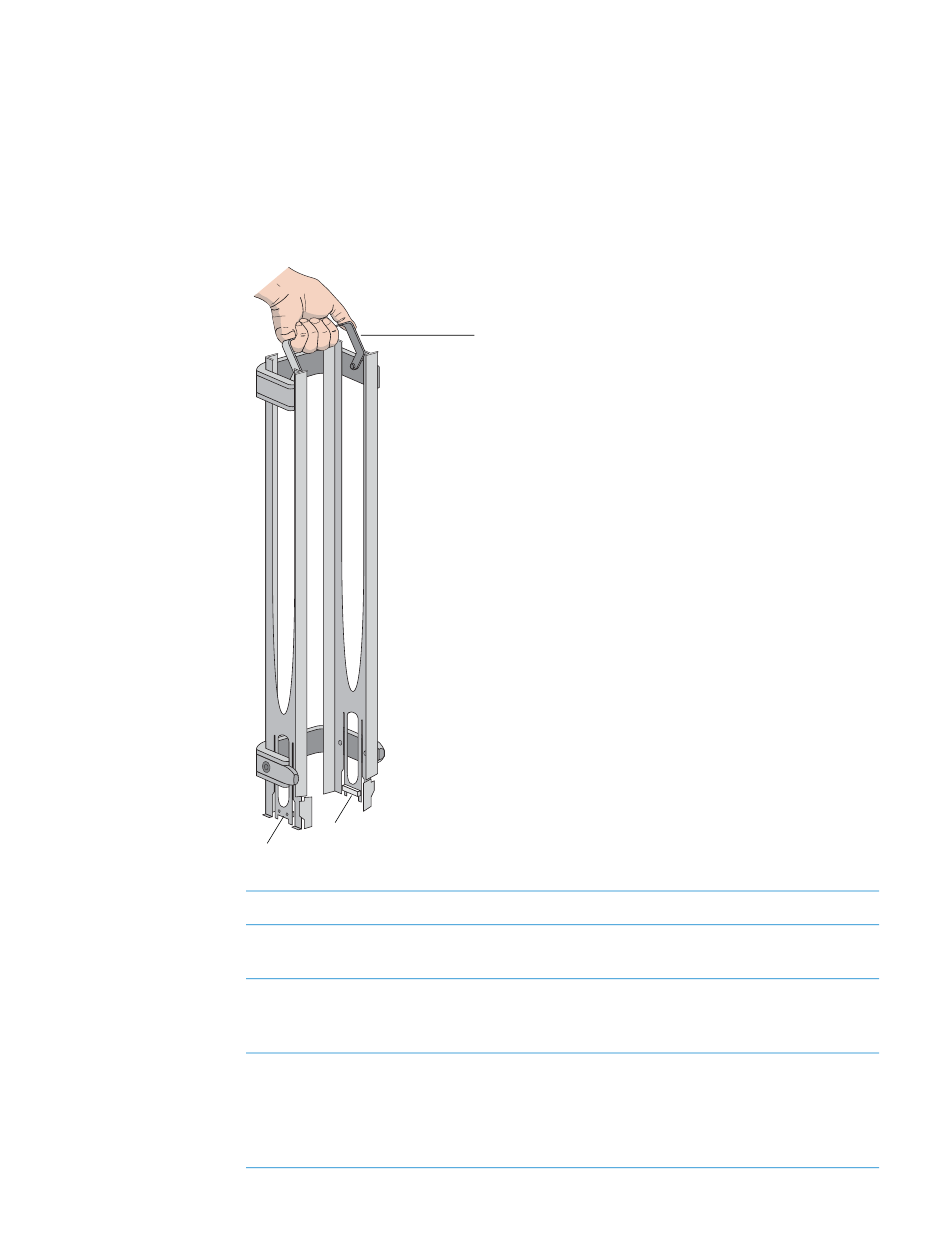

Figure
Front-load rack components
3
2
Item Name
1 Carrying handle
2 Tabs
3 Stacker grippers
1
Description
The top-load and front-load racks have fold-down
carrying handles.
A pair of vertical tabs are located at the bottom on the
rack sides. The tabs insert into slots on the device
when you mount the rack onto the device.
A gripper is located on the interior bottom of each tab.
The pair of grippers hold a microplate during the
labware loading, unloading, downstacking, and
upstacking processes. A clamp in the device opens
and closes the grippers.
