BenchCel Microplate Handler User Guide

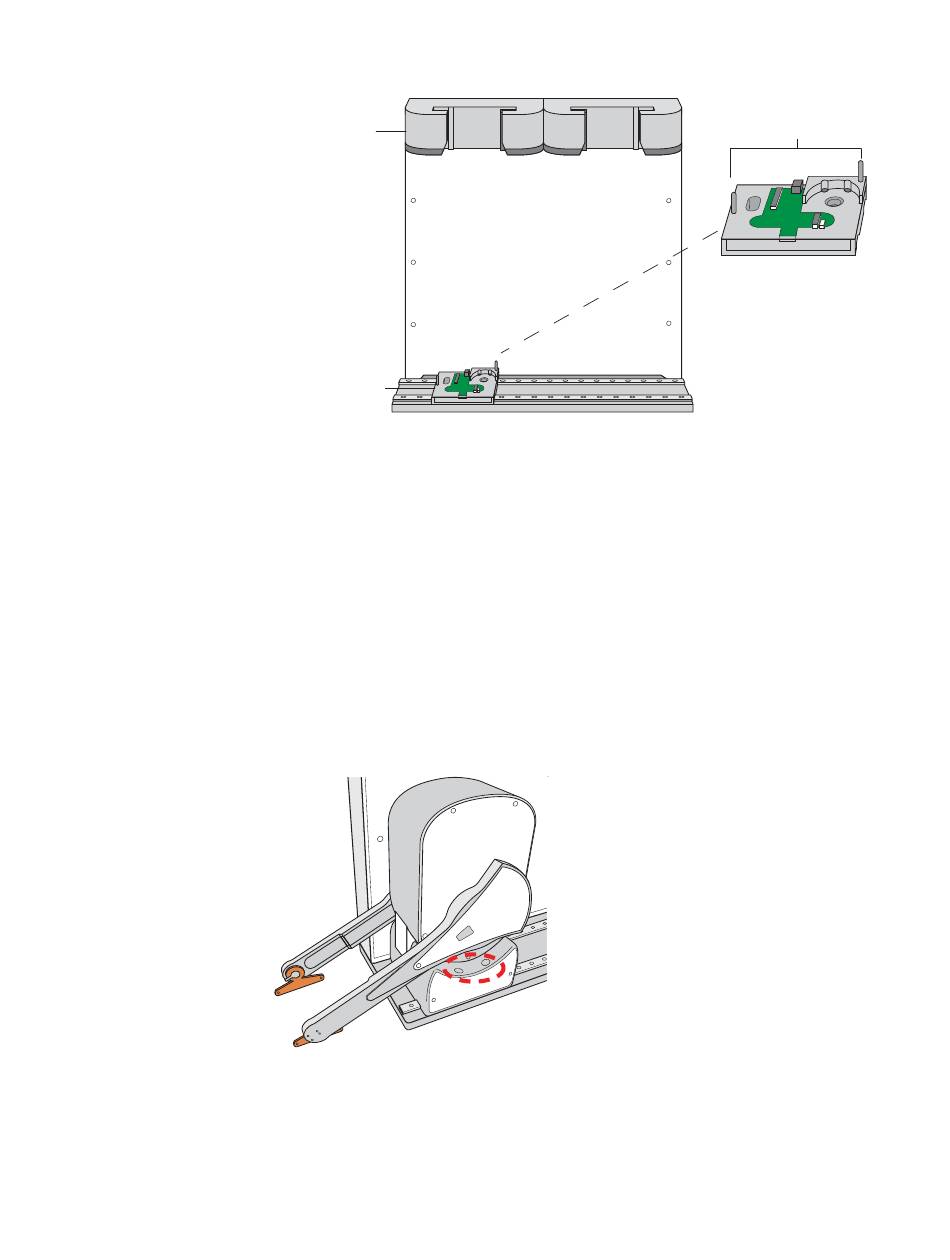

Figure
BenchCel device with shipping bracket removed from the x-axis carriage
Stacker head
x-axis
carriage
2
Slide the x-axis carriage into position directly under a stacker head opening.
3
Inspect the x-axis carriage and ensure any cables are recessed.
4
Using the correct lift points, grasp the robot head and, carefully, lower it onto the
x-axis carriage, aligning the two holes on the robot z-column bottom with the dowel
pins on the x-axis carriage.
5
Gently slide the robot downwards. When the robot is in position, push down on it to
ensure the electronics are fully connected.
6
Gently rotate the robot arms to one side to expose the two screw holes on the
robot base. Insert the two 35-mm M6 screws and tighten to secure the robot to the
base.
Figure
BenchCel robot with rotated arms to expose screw holes in the base
7
Lift the robot head from the base to expose the remaining two screw holes in the
base. While firmly supporting the robot head, install the two 45-mm M6 screws to
finish securing the robot base to the x-axis carriage.
3 Installing BenchCel Microplate Handler
Mounting the robot
x-axis carriage
(closeup view)
Alignment pins
45
