7 Maintenance and troubleshooting
Diagnostic tools

Jogging the robot

C AU T I O N
148
Jogging the robot moves the robot and robot grippers in small, precise increments
along one of the axes. You can jog the robot to fine-tune its position when creating and
editing teachpoints.
To jog the robot:
1

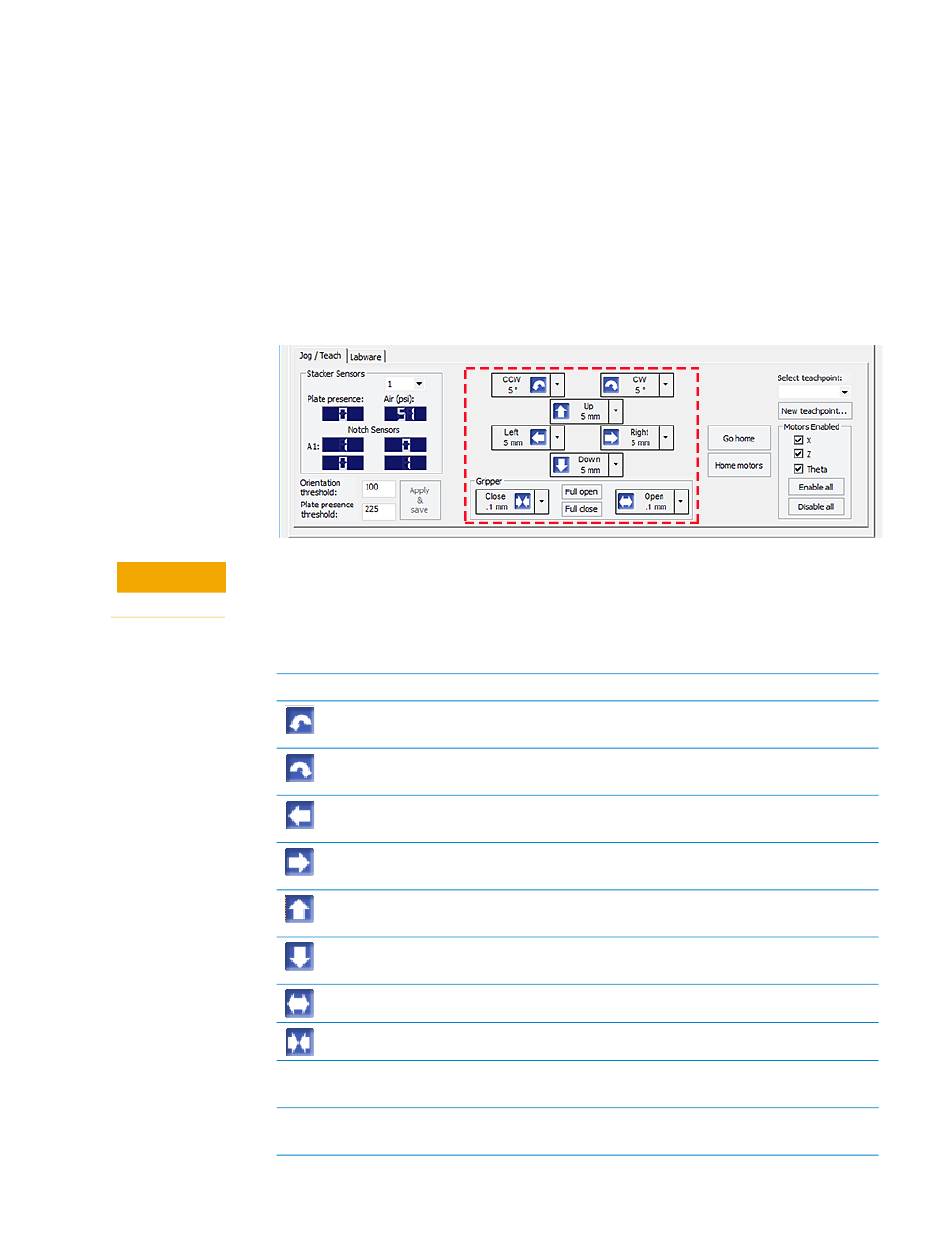

On the BenchCel Diagnostics Controls page, click the Jog/Teach tab.
2
Enable the robot motors. See
page 147.
3
In the robot movement area, select the jog distance from the corresponding
increment list, if applicable.
Use smaller jog increments than you think you need to ensure that the robot does not
bump into obstacles in its path (such as the stacker heads and plate stages).
4
Click the directional button:
Command
Full Open
Full Close
"Disabling and enabling the robot motors" on
Description
Jogs the robot arm counterclockwise from the current
position by the specified theta-axis increment.
Jogs the robot arm clockwise from the current position by
the specified theta-axis increment.
Jogs the robot head left from the current position by the
specified x-axis increment.
Jogs the robot head right from the current position by the
specified x-axis increment.
Jogs the robot head up from the current position by the
specified z-axis increment.
Jogs the robot head down from the current position by the
specified z-axis increment.
Opens the robot grippers by the specified grip increment.
Closes the robot grippers by the specified grip increment.
Opens the robot grippers to the Robot Gripper Open
Position value set in the Labware tab.
Closes the robot grippers to the Robot Gripper Holding
Stack value set in the Labware tab.
BenchCel Microplate Handler User Guide
