3Com OfficeConnect 3C892A User Manual page 48

C 4: S U
42
HAPTER ETTING P
TCP/IP W M
FOR INDOWS AND

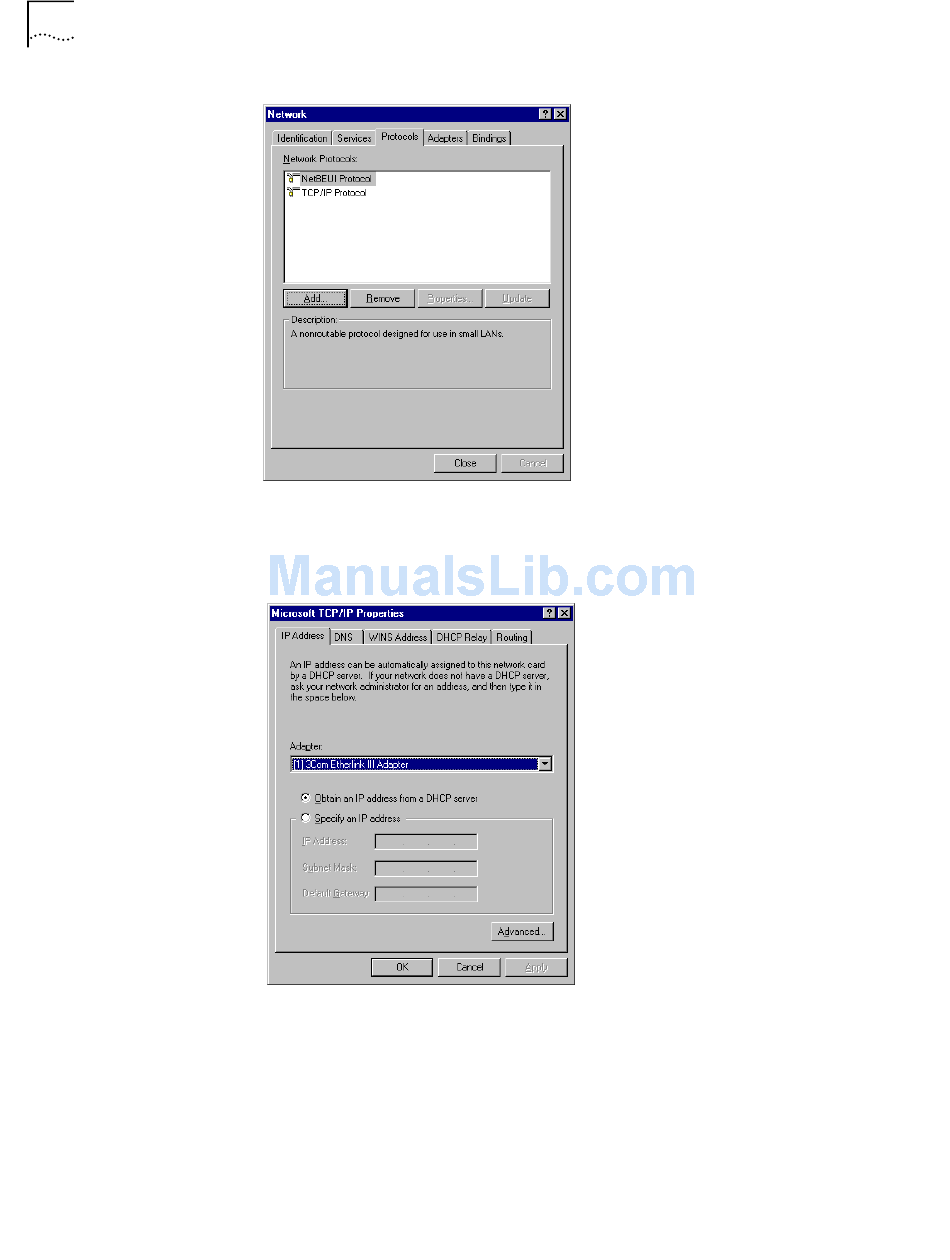

Figure 28 Network Protocols Group Box
8 Click Close.
The Microsoft TCP/IP Properties window appears, as shown in Figure 29.
Figure 29 Microsoft TCP/IP Properties Window
9 From the Adapter drop down list box, select the Ethernet card that is connected to
the ISDN LAN Modem.
10 If this LAN uses dynamic IP addresses, select Obtain an IP address from a DHCP
server. If this LAN uses static IP addresses, enter the IP address and subnet mask.
11 Click OK.
12 Click Yes to restart your PC and allow the changes to take effect.
ACINTOSH
