C 2: ISDN LAN M
24
HAPTER
Setting Up the Server
Side of the Tunnel
Setting Up the Client
Side of the Tunnel
F D
ODEM UNCTIONALITY ESCRIPTION
One of the protocols which enables a VPN to be created is PPTP. The PPTP protocol
allows for multiple workstations to establish a secure multi-protocol connection to
a remote, private network via a single, locally-dialed ISP account as shown in
Figure 10. Any networking protocols such as IP, IPX and NetBEUI can be supported
transparently through the tunnel. While the ISDN LAN Modem supports PPTP, it
does not play an active role in creating or terminating a tunnel.
LAN STATUS
Alert POWER ISDN B1 B2 TX COLL 1 2
OK
LAN Modem

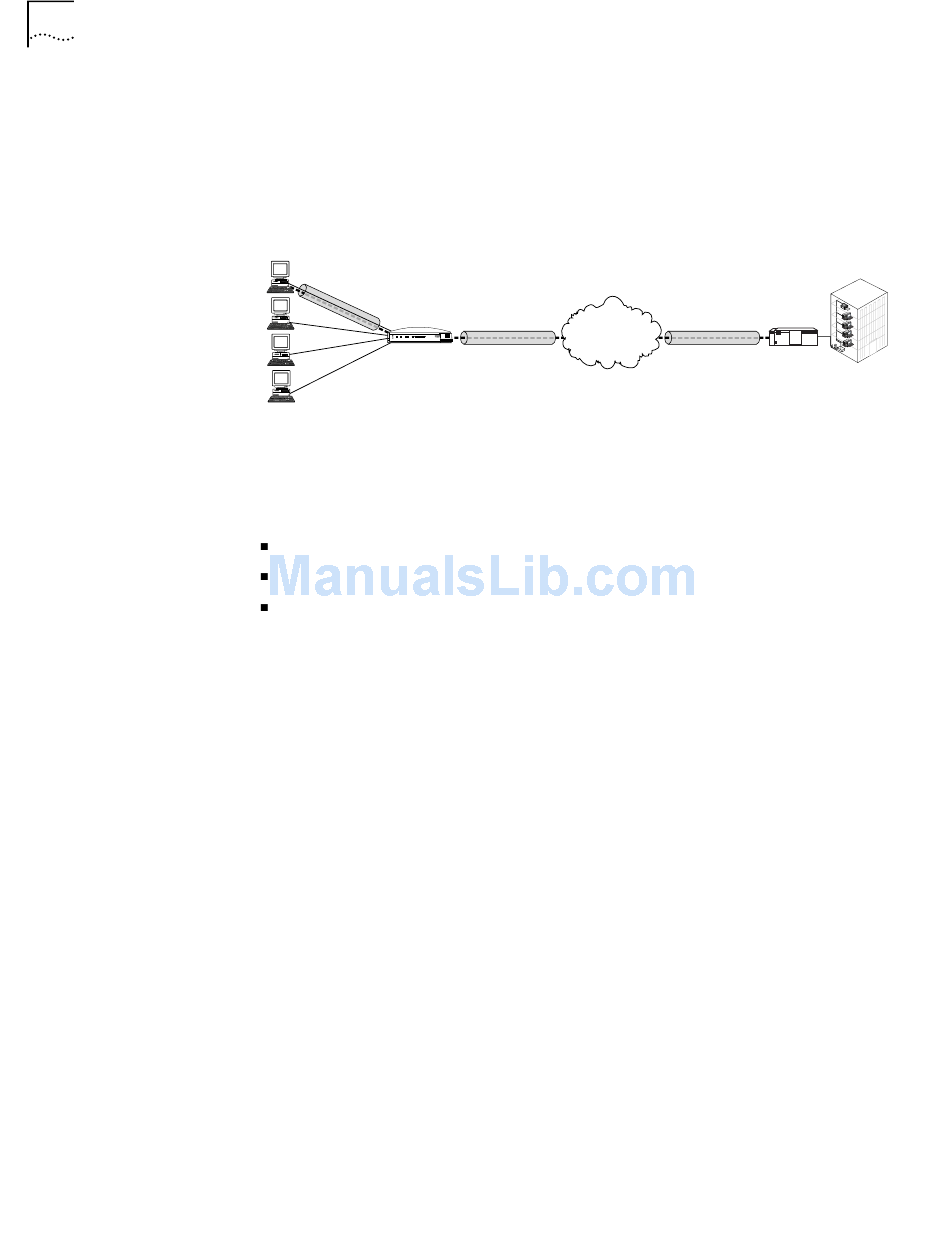

Figure 10 Connection to an Remote Private Network via an ISP
The main steps for creating a VPN are as follows. Each step is explained in detail in
subsequent sections.
Set up the server side of the tunnel connection
Set up the client side of the tunnel connection
Initiate a tunnel between client and server using your client software
In order to establish a tunnel, the client side must be able to dial into a PPTP tunnel
server on the remote private network such as a Windows NT server version 4.0 or
later. If you use Windows NT 4.0, then Service Pack 3 or greater and RAS must be
installed. Also, the protocols required for the private network must be installed on
the PPTP tunnel server. It is recommended that an experienced network
administrator set up the server side. Note that protocols required for the private
network must be installed on each PPTP tunnel client as well as the PPTP tunnel
server.
In order to establish a tunnel, the client side must have PPTP tunnel client software
such as Windows Dial-Up Networking version 1.3 which includes the required
software VPN adapter or Windows NT operating system with Service Pack 3, or
Network TeleSystem's TunnelBuilder™ VPN software for Windows 3.11 and
Macintosh operating systems. This software should reside on all workstations that
wish to create a tunnel to the tunnel server. Follow instructions provided for
installation and set up.
Internet Service
Com 3
ISDN LAN Modem
3 4 Provider
3C892
Tunnel
terminator
Corporate
network
