Connecting to a
10BASE-T Ethernet Port
To connect a computer to the ISDN LAN Modem, do the following.
1 Insert one end of the 10BASE-T Ethernet cable into one of the four LAN ports on
the back of the ISDN LAN Modem, as shown in Figure 14.
C
V D
1 8
1 0 -
A X
A M
0 . 8

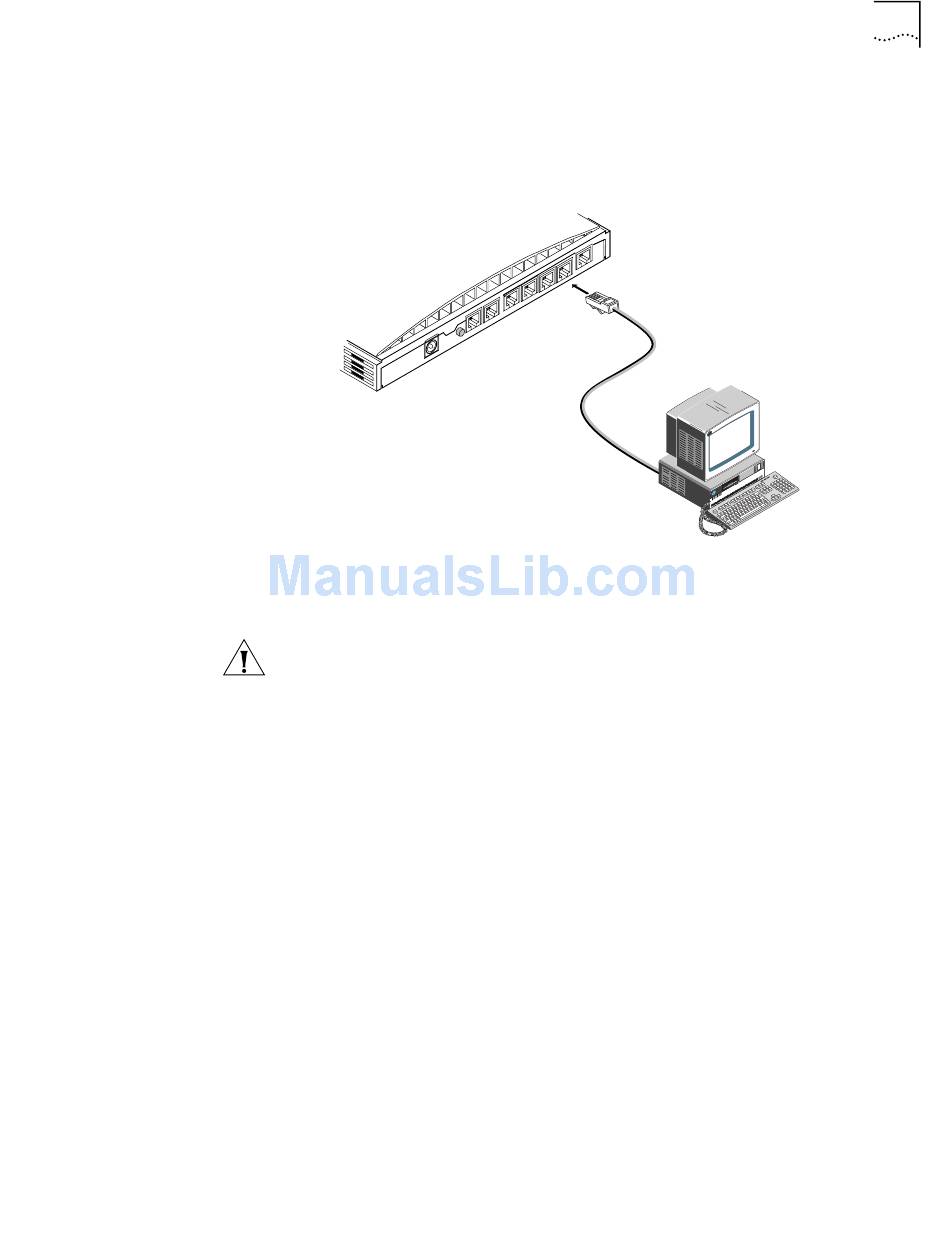

Figure 14 10BASE-T Ethernet LAN Connection
2 Insert the opposite end of the cable into your computer's 10BASE-T Ethernet port.
CAUTION: You should only have one computer physically connected to the ISDN
LAN Modem during configuration. Once you complete the configuration process,
connect any other computers you would like to have on the LAN and then power
cycle each computer. If the newly-added computers cannot communicate with the
ISDN LAN Modem, refer to "Evaluating Symptoms and Solutions" in Chapter
N
I S D
2
E
O N
P H
1
T
S E
R E
Installing the ISDN LAN Modem
