IBM PC or Compatible
Requirements
Apple Macintosh
Requirements
Front Panel LED
Description
D I
ESCRIPTION AND NSTALLATION
Your IBM-compatible PC must have the following:
A 386, 486, or Pentium processor
10BASE-T Ethernet card
Microsoft Windows 98, 95, Windows NT, or Windows 3.11
A CD-ROM drive
Your Apple Macintosh computer must have the following:
System 7.1 or later operating system
Open Transport version 1.1 or later (recommended)
A CD-ROM drive
Ethernet interface
Built-in Ethernet connectivity is provided through an Apple Ethernet port in the
Macintosh Centris 650, most Macintosh Quadra computers, and all Power
Macintosh computers. For other Macintosh computers, Apple offers several
interface cards. Refer to the Apple Web site (
information.
The front panel provides the following LEDs.
ISDN
POWER
Alert
OK

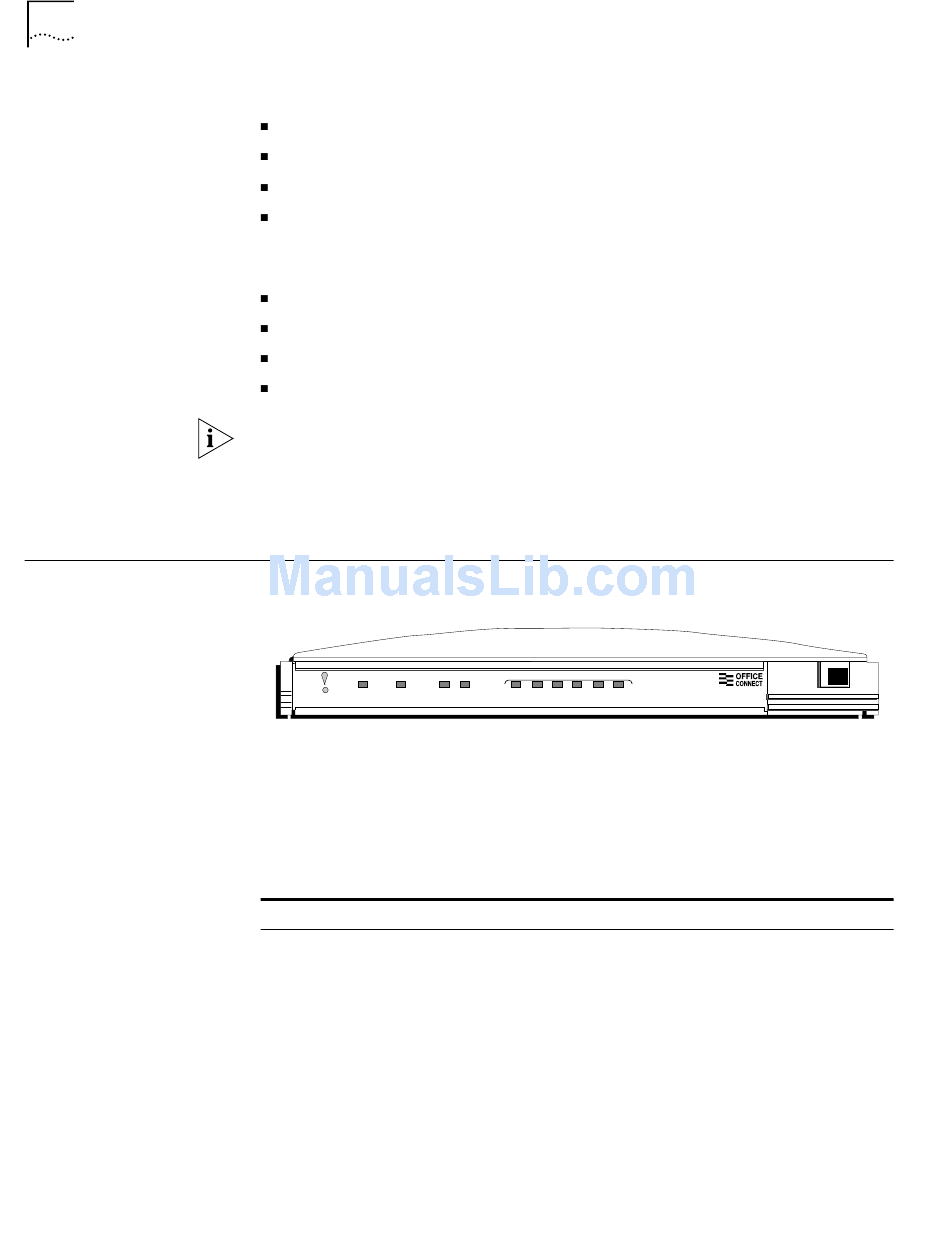

Figure 11 ISDN LAN Modem Front Panel
The functions of the front panel LEDs are described in Table 4. These front panel
LEDs show whether or not the unit is functioning properly and indicate the status
of the activity over the 10BASE-T and ISDN ports.
Table 4 Front Panel LED Indicator Definitions
LED Color
Alert Amber
POWER Green
http://www.apple.com
LAN STATUS
B1 B2 TX COLL 1 2 3 4
Description
Operational Status. Lit during power-on self-test diagnostic or
after pressing the reset button.
Off indicates the unit has passed the diagnostic tests and is
working properly.
Flashes (four times per second) if one or more of the diagnostics
have failed or after the unit is placed in firmware download mode
and is waiting for a firmware upgrade.
Power Indicator. Remains lit as long as power is supplied to the
unit.
) for more
3 Com
ISDN LAN Modem
3C891
