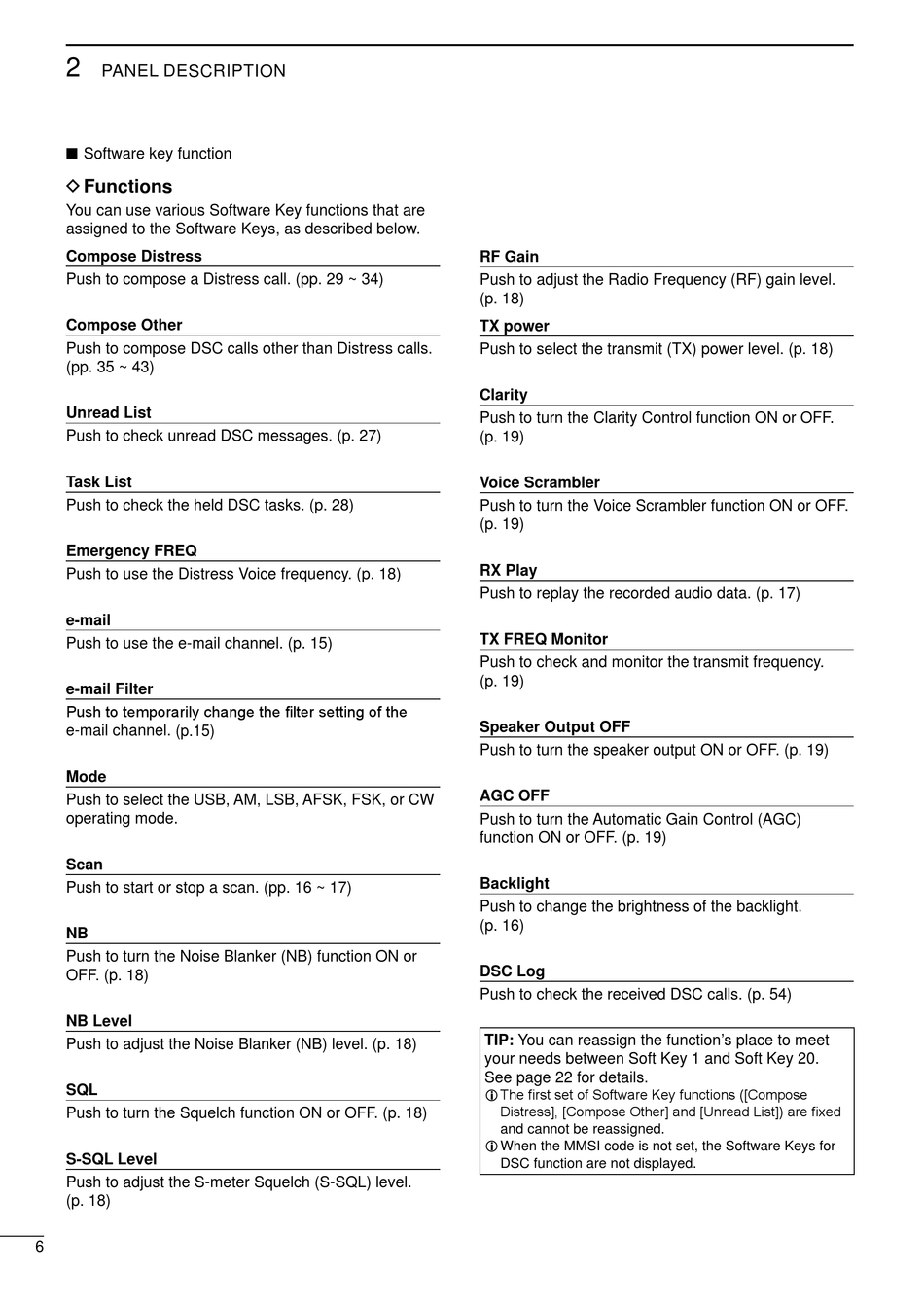

PANEL DESCRIPTION
I Software key function

D Functions

You can use various Software Key functions that are
assigned to the Software Keys, as described below�
Compose Distress
Push to compose a Distress call� (pp� 29 ~ 34)
Compose Other
Push to compose DSC calls other than Distress calls�
(pp� 35 ~ 43)
Unread List
Push to check unread DSC messages� (p� 27)
Task List
Push to check the held DSC tasks� (p� 28)
Emergency FREQ
Push to use the Distress Voice frequency� (p� 18)
e-mail
Push to use the e-mail channel� (p� 15)
e-mail Filter
Pus to temporaril c ange t e filter setting o t e
e-mail channel� (p�15)
Mode
Push to select the USB, AM, LSB, AFSK, FSK, or CW
operating mode�
Scan
Push to start or stop a scan� (pp� 16 ~ 17)
NB
Push to turn the Noise Blanker (NB) function ON or
OFF� (p� 18)
NB Level
Push to adjust the Noise Blanker (NB) level� (p� 18)
SQL
Push to turn the Squelch function ON or OFF� (p� 18)
S-SQL Level
Push to adjust the S-meter Squelch (S-SQL) level�
(p� 18)
6
RF Gain
Push to adjust the Radio Frequency (RF) gain level�
(p� 18)
TX power
Push to select the transmit (TX) power level� (p� 18)
Clarity
Push to turn the Clarity Control function ON or OFF�
(p� 19)
Voice Scrambler
Push to turn the Voice Scrambler function ON or OFF�
(p� 19)
RX Play
Push to replay the recorded audio data� (p� 17)
TX FREQ Monitor
Push to check and monitor the transmit frequency�
(p� 19)
Speaker Output OFF
Push to turn the speaker output ON or OFF� (p� 19)
AGC OFF
Push to turn the Automatic Gain Control (AGC)
function ON or OFF� (p� 19)
Backlight
Push to change the brightness of the backlight�
(p� 16)
DSC Log
Push to check the received DSC calls� (p� 54)
TIP: You can reassign the function's place to meet
your needs between Soft Key 1 and Soft Key 20�
See page 22 for details�
e first set o So t are e
L
istress Compose t er an
and cannot be reassigned�
L When the MMSI code is not set, the Software Keys for
DSC function are not displayed�
unctions ( Compose
nrea ist ) are fi e
