2

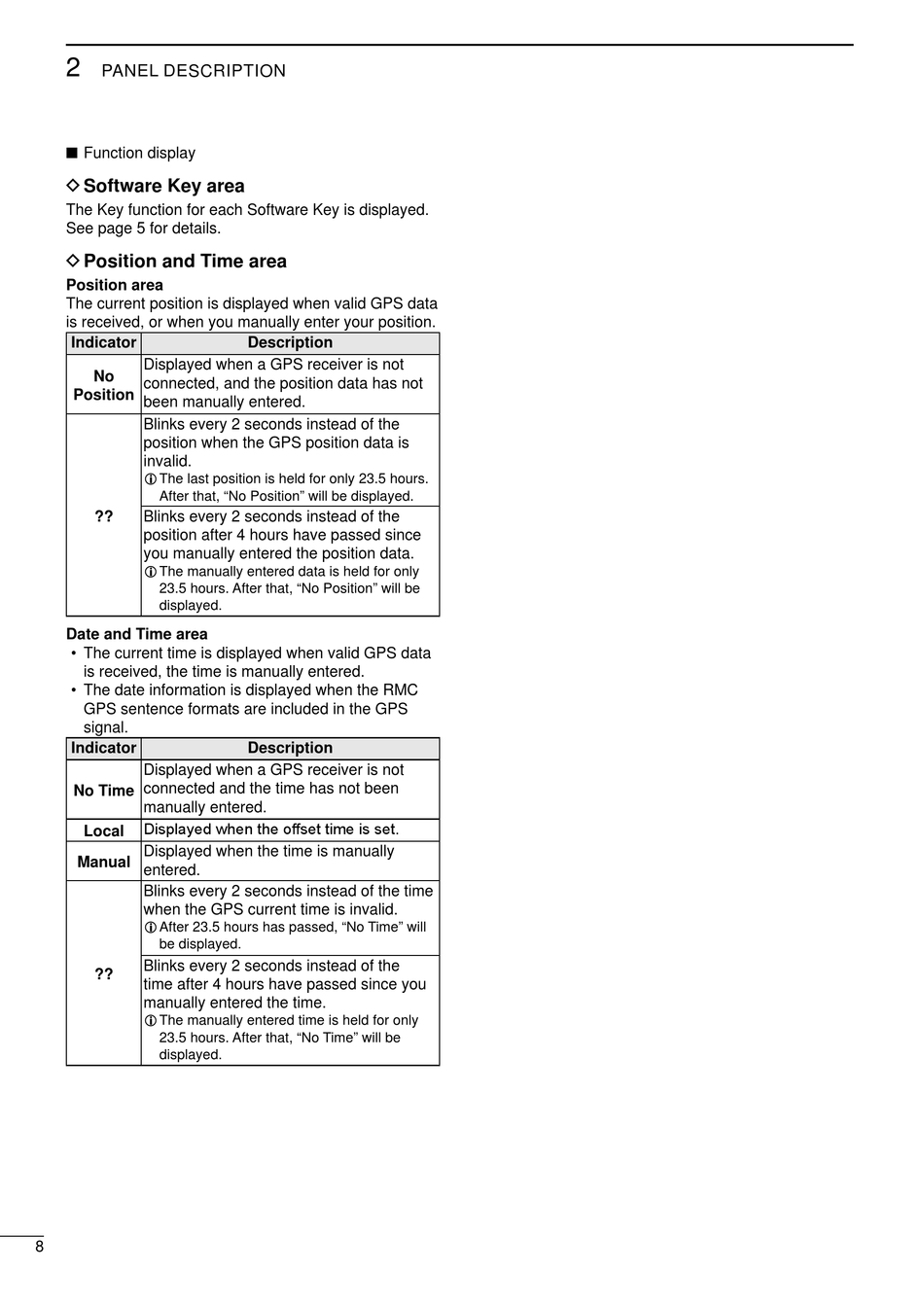

PANEL DESCRIPTION
I Function display

D Software Key area

The Key function for each Software Key is displayed�
See page 5 for details�

D Position and Time area

Position area
The current position is displayed when valid GPS data
is received, or when you manually enter your position�
Indicator
Displayed when a GPS receiver is not
No
connected, and the position data has not
Position
been manually entered�
Blinks every 2 seconds instead of the
position when the GPS position data is
invalid�
L The last position is held for only 23�5 hours�
After that, "No Position" will be displayed�
?? Blinks every 2 seconds instead of the
position after 4 hours have passed since
you manually entered the position data�
L The manually entered data is held for only
23�5 hours� After that, "No Position" will be
displayed�
Date and Time area
• The current time is displayed when valid GPS data
is received, the time is manually entered�
• The date information is displayed when the RMC
GPS sentence formats are included in the GPS
signal�
Indicator
Displayed when a GPS receiver is not
connected and the time has not been
No Time
manually entered�
ispla e
Local
Displayed when the time is manually
Manual
entered�
Blinks every 2 seconds instead of the time
when the GPS current time is invalid�
L After 23�5 hours has passed, "No Time" will
be displayed�
Blinks every 2 seconds instead of the
??
time after 4 hours have passed since you
manually entered the time�
L The manually entered time is held for only
23�5 hours� After that, "No Time" will be
displayed�
8
Description
Description
en t e o set time is set
