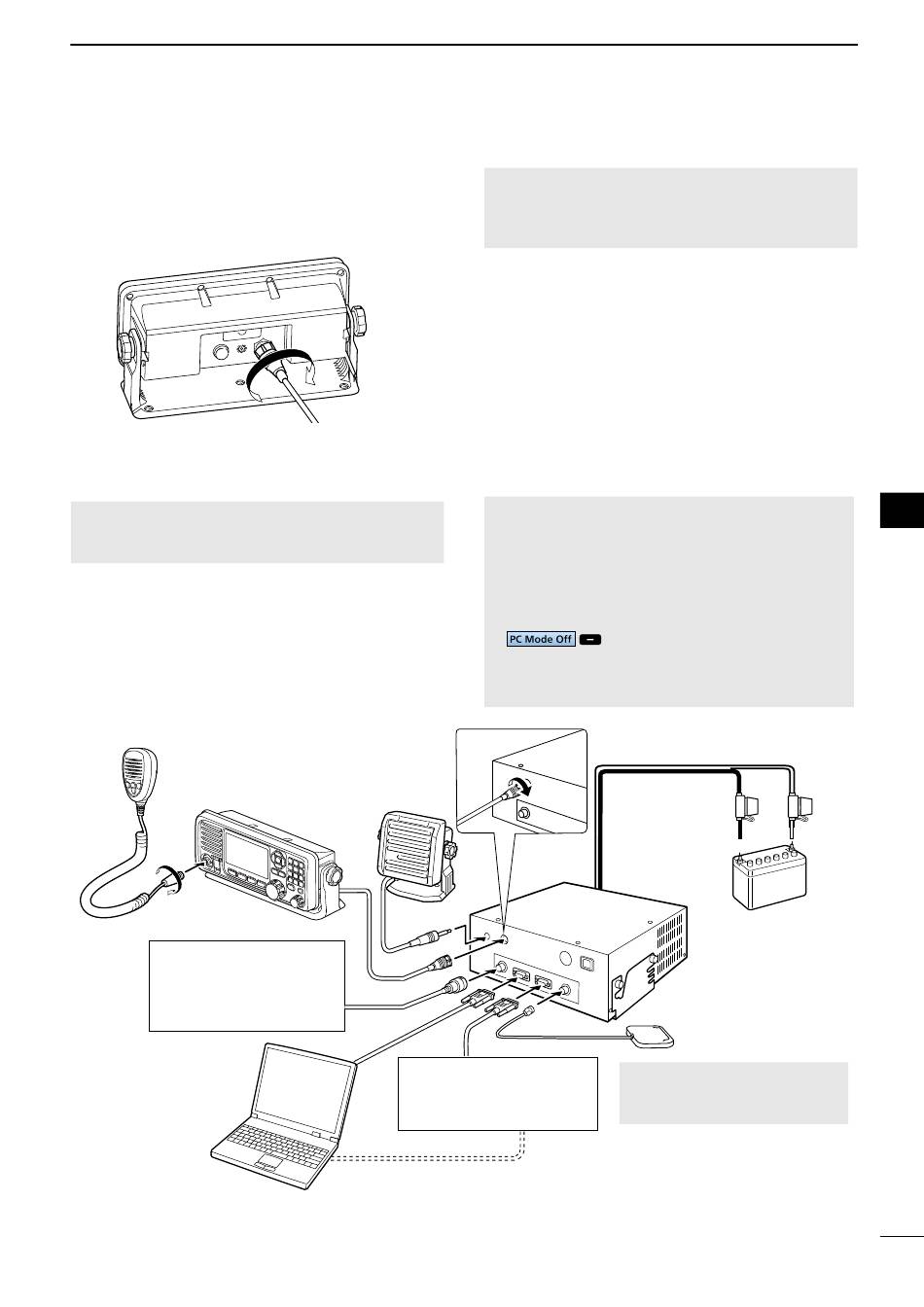

D Connecting the remote control cable
1� Insert the remote control cable's connector into the
main unit jack on the remote controller's back panel�
2� Rotate the connector clockwise until it is
completely tightened�
Remote controller cable's
connector

D Front panel connections

CAUTION: When you connect an external unit,
such as PC or e-mail modem, they must be properly
grounded� (pp� 71 and 79)
Position and time data
(NMEA0183 ver� 4�10,
Sentence formatter: GGA,
GLL, GNS, RMC, VTG)
CONNECTIONS AND INSTALLATION
CAUTION: Be sure that the control cable's
connector is screwed to the remote controller's back
panel completely� Otherwise, the remote controller
may lose its waterproof protection�
NOTE:
• When an external speaker is connected, the
internal speaker is automatically muted�
When a PC is connected:
• The PC being operated has priority at any given
time�
• The remote controller is inhibited� Push
resume operation with it� (p� 15)
• The PC being operated automatically updates the
settings of the remote controller�
SP-24
(Purchase
separately)
E-mail modem, NBDP
(Narrow Band Direct
Printing), or FAX systems
on the remote controller screen to
12V battery
GPS antenna
NOTE: Install the GPS antenna
where it has a clear view to
receive signals from satellites�
