Specifications And Options - Icom IC-M803 Instruction Manual

10

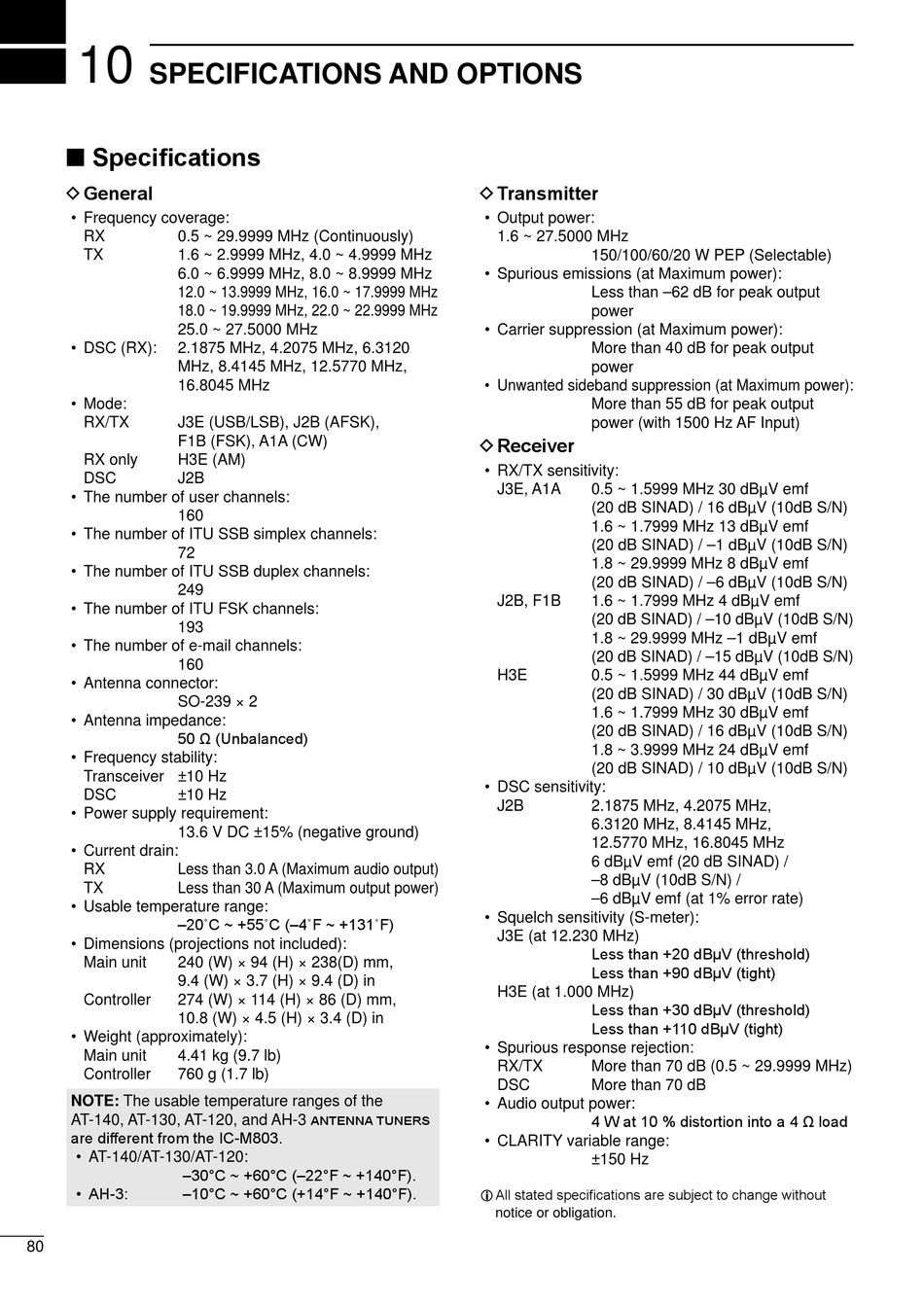

SPECIFICATIONS AND OPTIONS

I Specifications
D General
• Frequency coverage:
RX 0�5 ~ 29�9999 MHz (Continuously)
TX 1�6 ~ 2�9999 MHz, 4�0 ~ 4�9999 MHz
6�0 ~ 6�9999 MHz, 8�0 ~ 8�9999 MHz
12�0 ~ 13�9999 MHz, 16�0 ~ 17�9999 MHz
18�0 ~ 19�9999 MHz, 22�0 ~ 22�9999 MHz
25�0 ~ 27�5000 MHz
• DSC (RX): 2�1875 MHz, 4�2075 MHz, 6�3120
MHz, 8�4145 MHz, 12�5770 MHz,
16�8045 MHz
• Mode:
RX/TX J3E (USB/LSB), J2B (AFSK),
F1B (FSK), A1A (CW)
RX only H3E (AM)
DSC J2B
• The number of user channels:
160
• The number of ITU SSB simplex channels:
72
• The number of ITU SSB duplex channels:
249
• The number of ITU FSK channels:
193
• The number of e-mail channels:
160
• Antenna connector:
SO-239 × 2
• Antenna impedance:
• Frequency stability:
Transceiver ±10 Hz
DSC ±10 Hz
• Power supply requirement:
13�6 V DC ±15% (negative ground)
• Current drain:
RX Less than 3�0 A (Maximum audio output)
TX Less than 30 A (Maximum output power)
• Usable temperature range:
• Dimensions (projections not included):
Main unit 240 (W) × 94 (H) × 238(D) mm,
9�4 (W) × 3�7 (H) × 9�4 (D) in
Controller 274 (W) × 114 (H) × 86 (D) mm,
10�8 (W) × 4�5 (H) × 3�4 (D) in
• Weight (approximately):
Main unit 4�41 kg (9�7 lb)
Controller 760 g (1�7 lb)
NOTE: The usable temperature ranges of the
AT-140, AT-130, AT-120, and AH-3
are i erent rom t e C
• AT-140/AT-130/AT-120:
•
80
( n alance )
C C (
C C (
C C (
D Transmitter
• Output power:
1�6 ~ 27�5000 MHz
• Spurious emissions (at Maximum power):
• Carrier suppression (at Maximum power):
• Unwanted sideband suppression (at Maximum power):
D Receiver
• RX/TX sensitivity:
J3E, A1A
J2B, F1B
H3E
• DSC sensitivity:
J2B
• Squelch sensitivity (S-meter):
)
J3E (at 12�230 MHz)
H3E (at 1�000 MHz)
• Spurious response rejection:
RX/TX
DSC
• Audio output power:
• CLARITY variable range:
)
)
L ll state specifications are su ect to c ange it out
notice or obligation�
150/100/60/20 W PEP (Selectable)
Less than –62 dB for peak output
power
More than 40 dB for peak output
power
More than 55 dB for peak output
power (with 1500 Hz AF Input)
0�5 ~ 1�5999 MHz 30 dBµV emf
(20 dB SINAD) / 16 dBµV (10dB S/N)
1�6 ~ 1�7999 MHz 13 dBµV emf
(20 dB SINAD) / –1 dBµV (10dB S/N)
1�8 ~ 29�9999 MHz 8 dBµV emf
(20 dB SINAD) / –6 dBµV (10dB S/N)
1�6 ~ 1�7999 MHz 4 dBµV emf
(20 dB SINAD) / –10 dBµV (10dB S/N)
1�8 ~ 29�9999 MHz –1 dBµV emf
(20 dB SINAD) / –15 dBµV (10dB S/N)
0�5 ~ 1�5999 MHz 44 dBµV emf
(20 dB SINAD) / 30 dBµV (10dB S/N)
1�6 ~ 1�7999 MHz 30 dBµV emf
(20 dB SINAD) / 16 dBµV (10dB S/N)
1�8 ~ 3�9999 MHz 24 dBµV emf
(20 dB SINAD) / 10 dBµV (10dB S/N)
2�1875 MHz, 4�2075 MHz,
6�3120 MHz, 8�4145 MHz,
12�5770 MHz, 16�8045 MHz
6 dBµV emf (20 dB SINAD) /
–8 dBµV (10dB S/N) /
–6 dBµV emf (at 1% error rate)
ess t an (t res ol )
ess t an (tig t)
ess t an (t res ol )
ess t an (tig t)
More than 70 dB (0�5 ~ 29�9999 MHz)
More than 70 dB
at istortion into a
±150 Hz
loa
