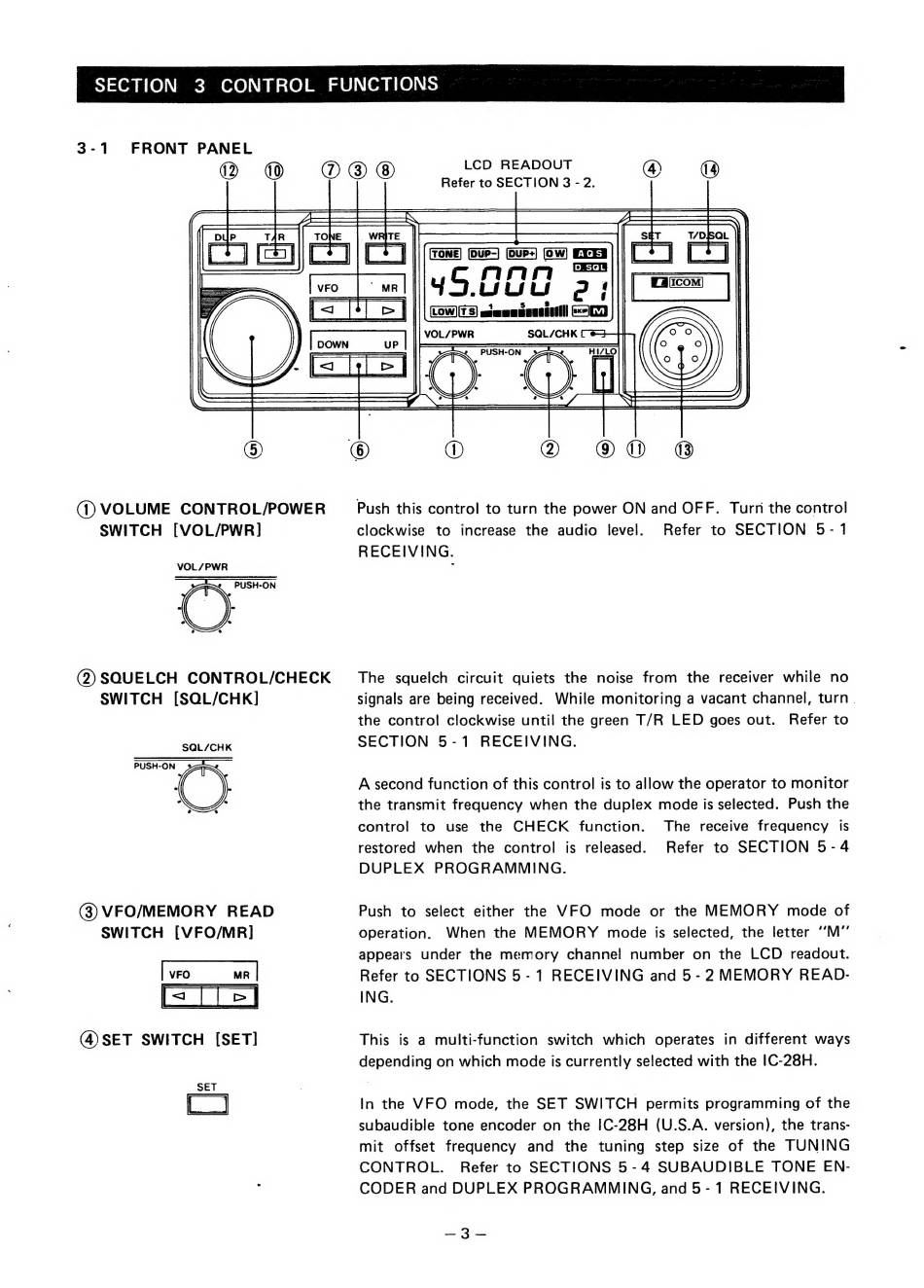

SECTION 3 CONTROL FUNCTIONS
3-1
FRONT
PANEL
(1) VOLUME
CONTROL/POWER
SWITCH
[VOL/PWR]
VOL/PWR
©
PUSH-ON
(2 SQUELCH CONTROL/CHECK
SWITCH
[SQL/CHK]
SQL/CHK
PUSH-ON
©
.
*
(8 VFO/MEMORY
READ
SWITCH
[VFO/MR]
| vFO
MR
|
BURNS
(SET SWITCH
[SET]
SET
LCD
READOUT
Refer to SECTION
3-2.
4
6
Push this control to turn the power ON and OFF.
Turn the control
clockwise
to increase
the audio
level.
Refer
to SECTION
5-1
RECEIVING.
The
squelch
circuit quiets the noise
from
the receiver while
no
signals are being received.
While monitoring a vacant channel, turn .
the control clockwise until the green T/R LED goes out.
Refer to
SECTION
5-1
RECEIVING.
A second function of this control is to allow the operator to monitor
the transmit frequency when the duplex mode is selected.
Push the
control
to
use
the
CHECK
function.
The
receive
frequency
is
restored when
the control
is released.
Refer to SECTION
5-4
DUPLEX
PROGRAMMING.
Push to select either the VFO
mode
or the MEMORY
mode of
operation.
When
the MEMORY
mode
is selected, the letter "М"
appears
under the memory
channel
number
on the LCD
readout.
Refer to SECTIONS 5-1
RECEIVING
and 5 - 2 MEMORY
READ-
ING.
This is a multi-function
switch
which
operates
in different ways
depending on which mode is currently selected with the 1С-28Н.
In the VFO
mode, the SET SWITCH
permits programming of the
subaudible tone encoder on the 1С-28Н (U.S.A. version), the trans-
mit offset frequency
and
the tuning
step size of the TUNING
CONTROL.
Refer to SECTIONS
5-4
SUBAUDIBLE
TONE
EN-
CODER and DUPLEX PROGRAMMING, and 5 - 1 RECEIVING.
