5. Installation
36 / 164

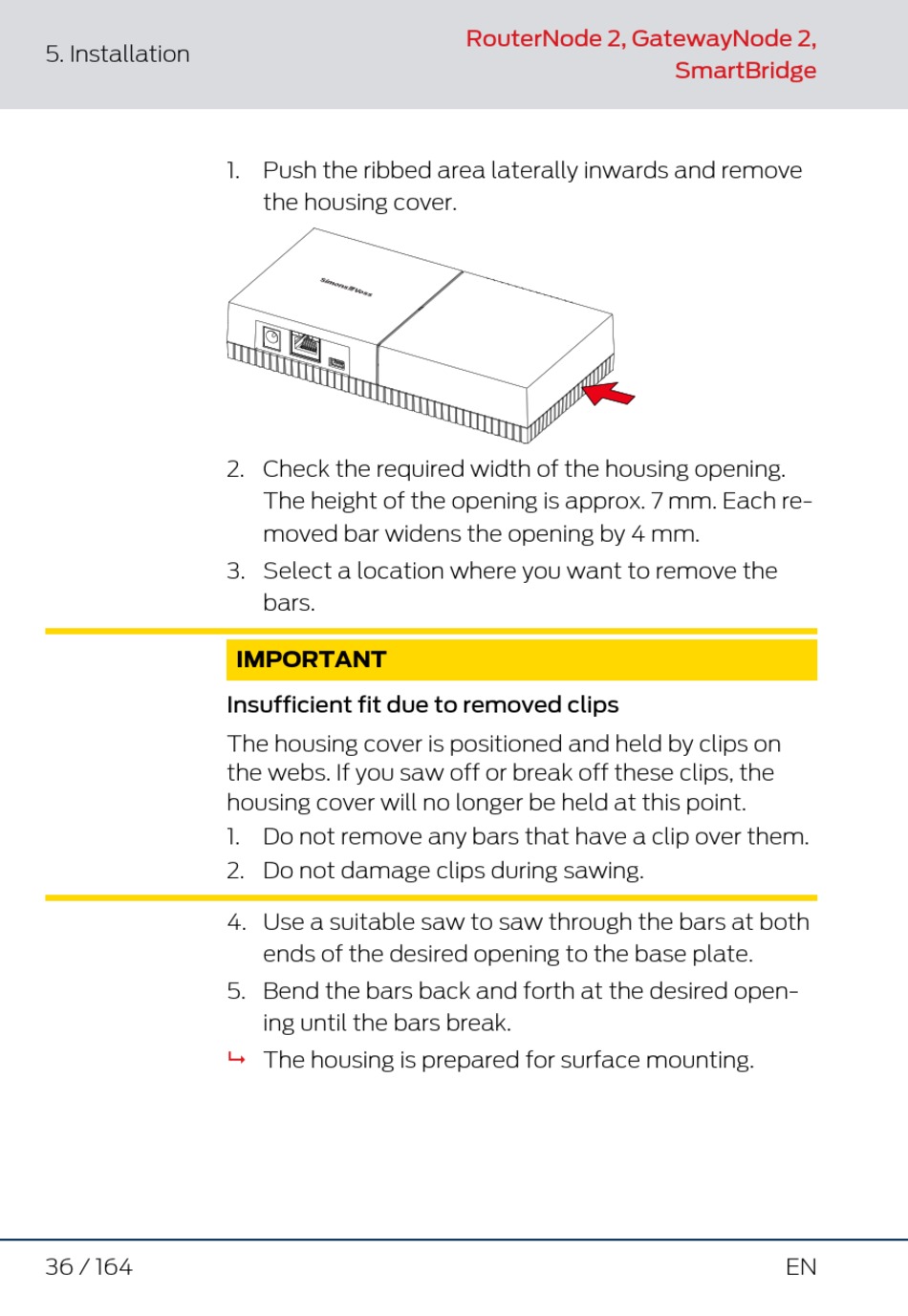

1. Push the ribbed area laterally inwards and remove
the housing cover.
2. Check the required width of the housing opening.
The height of the opening is approx. 7 mm. Each re-
moved bar widens the opening by 4 mm.
3. Select a location where you want to remove the
bars.
IMPORTANT
Insufficient fit due to removed clips
The housing cover is positioned and held by clips on
the webs. If you saw off or break off these clips, the
housing cover will no longer be held at this point.
1. Do not remove any bars that have a clip over them.
2. Do not damage clips during sawing.
4. Use a suitable saw to saw through the bars at both
ends of the desired opening to the base plate.
5. Bend the bars back and forth at the desired open-
ing until the bars break.
The housing is prepared for surface mounting.
