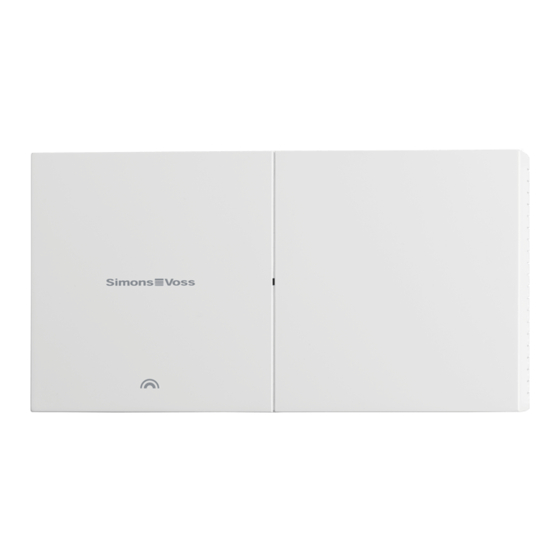

  • Page 1 SmartBridge Manual 11.09.2019...

  • Page 2: Table Of Contents

    Installation .............................. 10 Setting up SmartBridges .......................... 11 6.1.1 A SmartBridge.......................... 11 6.1.2 Two or more SmartBridges......................  12 Antenna ................................ 12 Initial operation............................ 15 SmartBridge in MobileKey .........................  15 7.1.1 Setting up SmartBridges ...................... 15 7.1.2 Deleting SmartBridge........................ 16 Maintenance...............................  17 Signalling .............................. 18 Fault rectification.............................  19 10.1...

  • Page 3: General

    IMPORTANT Compatibility with MobileKey The device is also used with other firmware in other product families. You can use the device with this firmware (=SmartBridge) only for MobileKey. Check the article number.  If the part number is MK.SMARTBRIDGE, it is a SmartBridge.

  • Page 4: General Safety Instructions

    2. General safety instructions SmartBridge (Manual) 4 / 28 2 General safety instructions WARNING Blocked access Access through a door may be blocked due to incorrectly fitted and/or in- correctly programmed components. SimonsVoss Technologies GmbH is not liable for the consequences of blocked access such as access to in-...
  • Page 5 2. General safety instructions SmartBridge (Manual) 5 / 28 ATTENTION Damage as a result of mechanical impact This product contains electronic components that may be damaged by mechanical impacts of any kind. 1. Avoid touching the electronics. 2. Avoid other mechanical influences on the electronics.
  • Page 6 2. General safety instructions SmartBridge (Manual) 6 / 28 IMPORTANT Intended use SimonsVoss-products are designed exclusively for opening and closing doors and similar objects. Do not use SimonsVoss products for any other purposes.  IMPORTANT Modifications or further technical developments cannot be excluded and may be implemented without notice.

  • Page 7: Product-Specific Safety Instructions

    3. Product-specific safety instructions SmartBridge (Manual) 7 / 28 3 Product-specific safety instructions CAUTION Risk of burns due to hot circuit board If you power the device with Power-over-Ethernet (PoE), the board can be- come very hot. Allow the unit to cool down before opening the housing.

  • Page 8: Scope Of Delivery

    4. Scope of delivery SmartBridge (Manual) 8 / 28 4 Scope of delivery SmartBridge: Cover, base plate with circuit board and three pre-  assembled strain reliefs Removable sticker with MobileKey-ID  Quick guide  4.1 Accessories You can use optionally available accessories to adapt your device to different applications.

  • Page 9: Connections

    5. Connections SmartBridge (Manual) 9 / 28 5 Connections DC In + 3.3 V Analog Input Unused DI 3 DI 2 DI 1 O 1.NC O 1.NO O 1.COM DC In RJ45 IMPORTANT IO connector only for RouterNode 2 You can only use the connectors of the IO connector at RouterNode 2.

  • Page 10: Installation

    6. Installation SmartBridge (Manual) 10 / 28 6 Installation The device can be mounted horizontally or vertically. You can carry out the horizontal mounting easily and safely with the integrated mounting holes. ATTENTION Adverse effect on reception due to interferences This device communicates wirelessly.

  • Page 11: Setting Up Smartbridges

    6.1 Setting up SmartBridges SmartBridges can be operated in different ways depending on their use and configuration. The key scenarios are shown below. 6.1.1 A SmartBridge The simplest use for MobileKey ONLINE is as a SmartBridge configured as an access point.

  • Page 12: Two Or More Smartbridges

    6. Installation SmartBridge (Manual) 12 / 28 6.1.2 Two or more SmartBridges MobileKey ONLINE can manage a number of access points. This allows several locations or very distant locking devices to be covered with the MobileKey ONLINE network. MobileKey ONLINE automatically determines which particular locking device is addressed by which particular access point based on the signal strength.
  • Page 13 6. Installation SmartBridge (Manual) 13 / 28 External antennas Use the external antenna if any of the following problems occur. Transmission and reception behaviour not stable  Range too short  Transmission and reception outdoors (LockNodes available outdoors)  The external antenna is suitable for outdoor use. This allows you to place the device in the protected area while the antenna is outdoors.
  • Page 14 6. Installation SmartBridge (Manual) 14 / 28 2. Locate the connector socket on the circuit board. 3. Connect the external antenna to the connector socket. The external antenna is connected. 4. Close the housing again. The device transmits via internal and external antenna.

  • Page 15: Initial Operation

     15] Æ 7.1 SmartBridge in MobileKey 7.1.1 Setting up SmartBridges This how you add a new SmartBridge to the web app: 1. Click on the menu button. Menu opens. 2. Click on the "NETWORK" button. 3. Add a new SmartBridge using the Plus symbol on SmartBridges.

  • Page 16: Deleting Smartbridge

    IMPORTANT The LockNodes in locking devices can only be reset via the connected SmartBridge. If locking devices are not flagged for deletion, they will retain their configuration. However, the locking devices can now only be accessed via a new SmartBridge or the programming device.

  • Page 17: Maintenance

    8. Maintenance SmartBridge (Manual) 17 / 28 8 Maintenance The device itself is maintenance-free. However, the performance of radio networks will always depend on environmental influences. These influences can change and affect the performance of your radio network. You should therefore check the network configuration and performance of...

  • Page 18: Signalling

    9. Signalling SmartBridge (Manual) 18 / 28 9 Signalling Signal Meaning Green flashing (~1.5 Hz) Configured and ready to use. Not configured, but ready for opera- Green flashing (~0.3 Hz) tion Red flashing (briefly) Restart Green flickering Data transfer...

  • Page 19: Fault Rectification

    10. Fault rectification SmartBridge (Manual) 19 / 28 10 Fault rectification If problems occur during operation, you may be able to rectify them yourself: 1. Check the power supply of the affected devices. 2. Check the network connection. 3. Check the authorisations assigned.
  • Page 20 10. Fault rectification SmartBridge (Manual) 20 / 28 Reset network configuration 1. Disconnect the power supply (round plug or network cable for PoE). 2. Wait 20 seconds. 3. Press and hold the reset button. 4. Reconnect the power supply (round plug or network cable for PoE).

  • Page 21: Technical Specifications

    11. Technical specifications SmartBridge (Manual) 21 / 28 11 Technical specifications General Dimensions 172 mm × 86 mm × 33 mm Weight About 100 g Material ABS plastic, UV-stable Colour White (like RAL 9016 "Traffic white") horizontal  vertical  Installation Wall mounting possible ...
  • Page 22 11. Technical specifications SmartBridge (Manual) 22 / 28 Max. switching voltage 30 V /24V  (resistive load) Relay output O1 Max. switching current 1 A (resistive  load) Interfaces Network interface  10T/100T  HP Auto_MDX  DHCP-Client (DHCP: on) ...

  • Page 23: Optional External Antenna

    11. Technical specifications SmartBridge (Manual) 23 / 28 Ø 2,0 11.1 Optional external antenna 11.1.1 Electrical specifications Type Multiband antenna AMPS (824 - 894  M Hz)  GSM (900  M Hz)  Frequencies DCS (1800  M Hz)  PCS (1900  M Hz) ...

  • Page 24: Connection Specifications

    11. Technical specifications SmartBridge (Manual) 24 / 28 Polarization Linear Gain 2,2  d Bi max. VSWR < 3:1 Operating temperature -40  ° C to +85  ° C 11.1.2 Connection specifications Connector type FME female Cable RG174U Cable length 250  c m 11.1.3 Mechanical specifications and dimensions...

  • Page 25: Declaration Of Conformity

    12. Declaration of conformity SmartBridge (Manual) 25 / 28 12 Declaration of conformity The company SimonsVoss Technologies GmbH hereby declares that article WNM.RN2 complies with the following guidelines: 2014/53/EU "Radio equipment"  2014/30/EU "EMC"  2011/65/EU "RoHS"  2012/19/EU "WEEE"...

  • Page 26: Help And Other Information

    13. Help and other information SmartBridge (Manual) 26 / 28 13 Help and other information Information material/documents You will find detailed information on operation and configuration and other documents under Informative material/Documents in the Download https://www.simons-voss.com/en/ section on the SimonsVoss website ( downloads/documents.html...
  • Page 27 13. Help and other information SmartBridge (Manual) 27 / 28 SimonsVoss Technologies GmbH Feringastrasse 4 85774 Unterföhring Germany...
  • Page 28 This is SimonsVoss SimonsVoss is a technology leader in digital locking systems. The pioneer in wirelessly controlled, cable-free locking technology delivers system solutions with an extensive product range for SOHOs, SMEs, major companies and public institutions. SimonsVoss locking systems unite intelligent functions, optimum quality and award-winning German-made design.
