2.2.1 Installing the SIM

The SIM tray is situated in the rear end of the device. The following figure shows where to find the external tray:
Procedure:

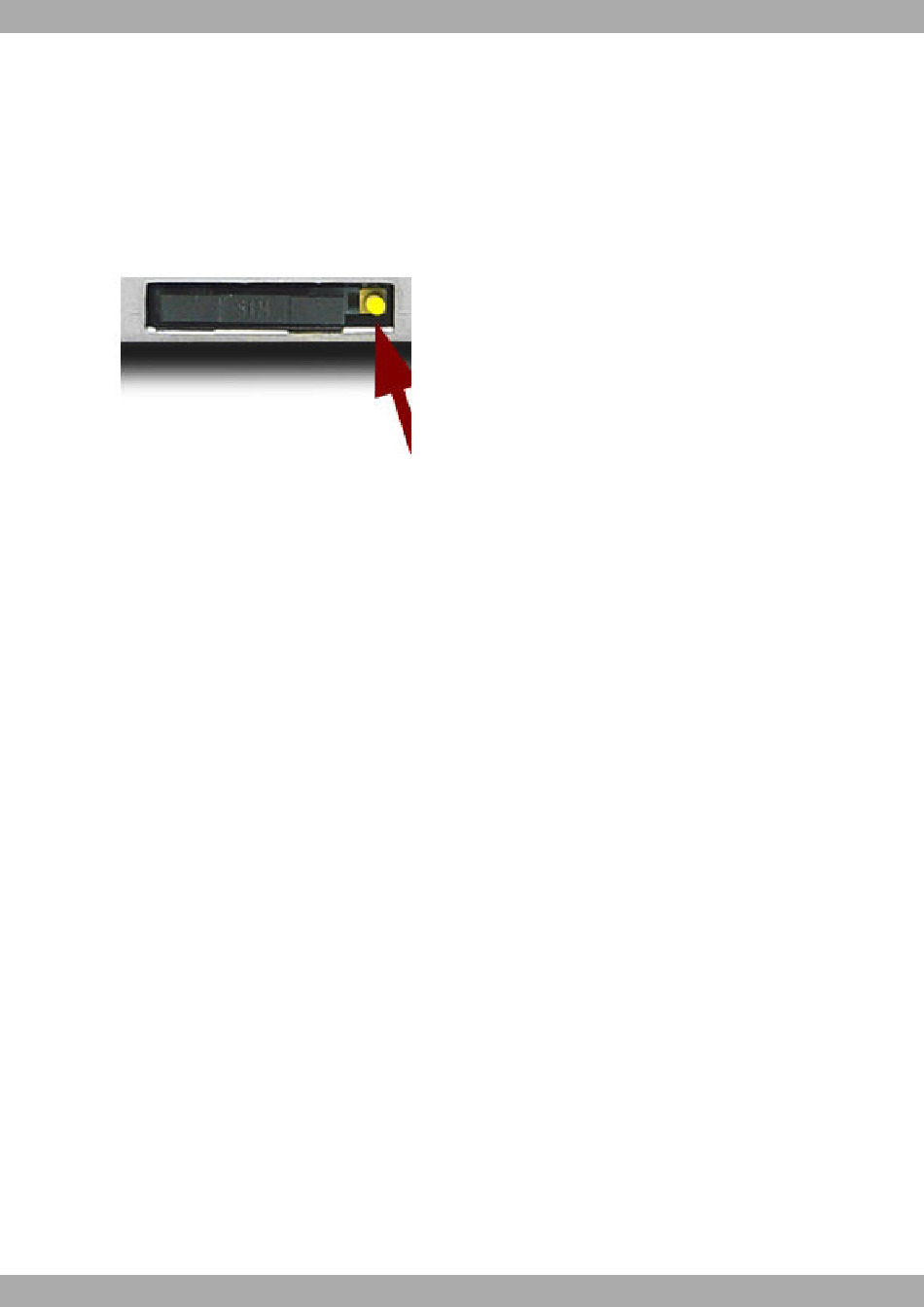

• Extract the tray. To extract it, press the yellow button located on the right of the slot with the help of a pointed ob-
ject, such as a ballpoint, as shown in the following figure:
Extracting the external SIM
Fig. 11:
• In order to insert the SIM card, first place it in the tray.
• If the tray already has a SIM card, you need to extract it by pushing it using the hole on the underside of the tray.
• Subsequently, you need to place the SIM on the tray so that its connectors can be seen; these are normally a gold
color. In addition, you must make sure that the tray notch coincides with the SIM notch.
• Then insert the tray in the slot using the guides so the SIM card remains on the tray.
