2 Installation

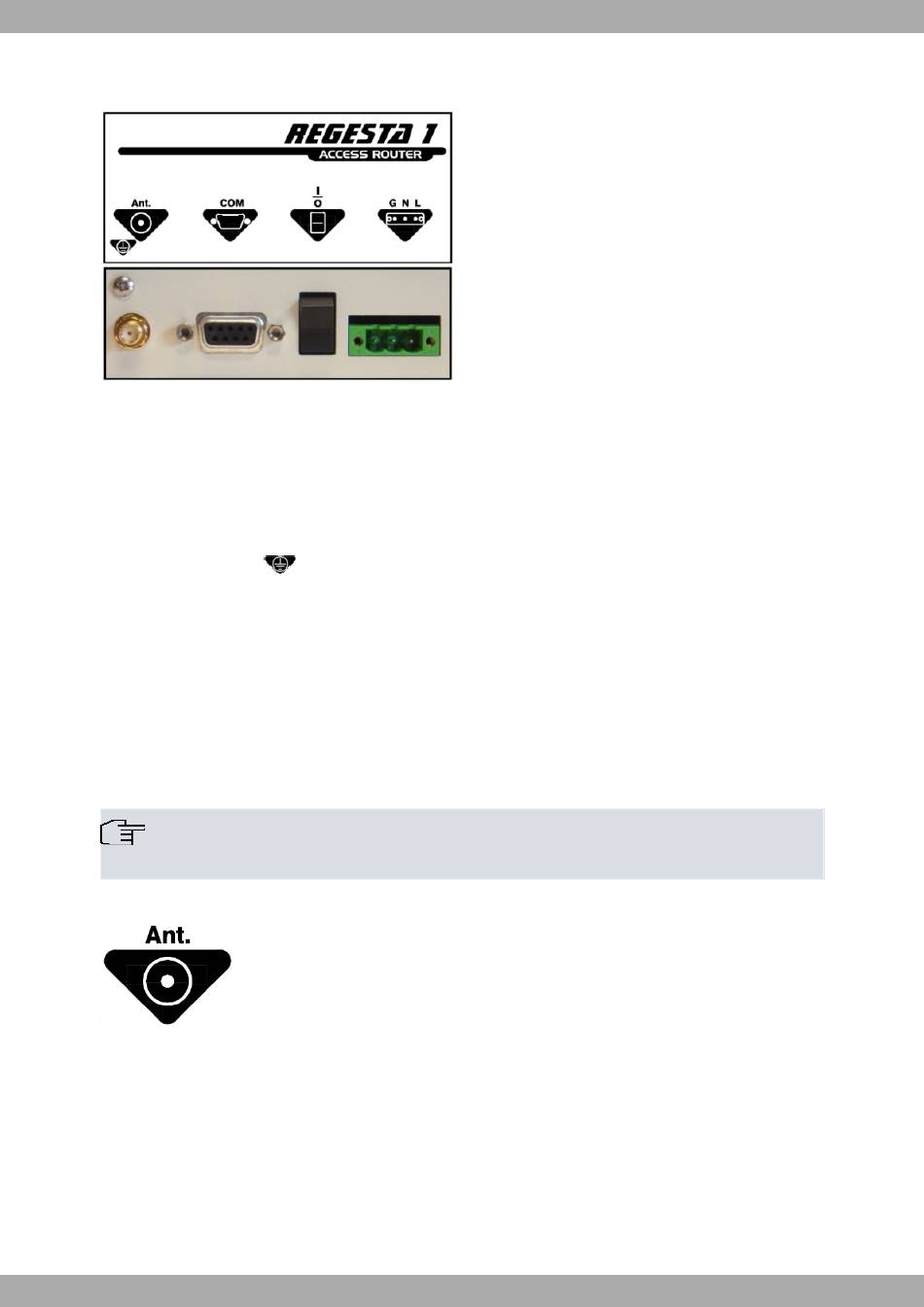

The following image shows where the connector is located on the front panel of the device:
Power supply connection
Fig. 8:
To connect the power source to the device, follow the steps listed in the earlier table: find the GNL connector, located
on the front panel of the device and insert the power cable.
It's not necessary for the N and L power terminals to be connected maintaining their nomenclature. I.e. although N
means "neutral" , it's not essential that the "neutral" , if it exists, is connected to this terminal. However it is essential
that the power is always connected in the N and L terminals. The G terminal must be connected to the ground.
The device has a terminal
device is always connected to the installation ground and always in this terminal. In cases where the security ground
circuit is not installed, the device must be connected to a ground equipotential bar for all the different metal parts.
This operation must always be carried out before connecting the power conductors to the device

2.1.2 Connecting to the WWAN antenna

The REGESTA 1 router has a connector in order to connect a WWAN antenna. To assemble and dismantle the an-
tenna, simply screw it to the connectors labeled WWAN, which are located on the front of the device.
Antenna installation is essential in the REGESTA 1 routers in order to improve the quality of the signal received and
transmitted by the Wireless WAN module (GSM/GPRS).
Note
To obtain optimum performance, the router should always have the WWAN antenna installed.
The following picture shows where the antenna connector is located.
The following image shows where the connector is located on the front panel of the device:
8
to connect to the installation's security ground circuit. You must make sure that the
