i.MX 8M Mini SODIMM Development Platform Hardware User Guide
9 UART3_TXD
10 UART3_RXD
11 ECSPI1_MISO
12 ECSPI1_SS0
13 NC
14 NC
15 NC
16 GPIO1_6
17 NC
18 PWM2_OUT(I2C4_SCL)
19 GND
20 GND
*Optional feature, by default not supported.

2.10 GPIO Header

i.MX 8M Mini SODIMM carrier board supports another 20pin Header (J16) for providing additional GPIO pins from the i.MX
8M Mini CPU. 4 GPIOs,SAI1 signals,ECSPI interface signals pins SODIMM Edge is directly connected to this GPIO Header.This
GPIO Header (J16) is physically located at the top of the board as shown below.
iWave Systems Technologies Pvt. Ltd.
O, 3.3V CMOS
I, 3.3V CMOS
O, 3.3V CMOS
I,3.3V CMOS
-
-
-
IO, 3.3V CMOS
-
O, 3.3V CMOS
Power
Power

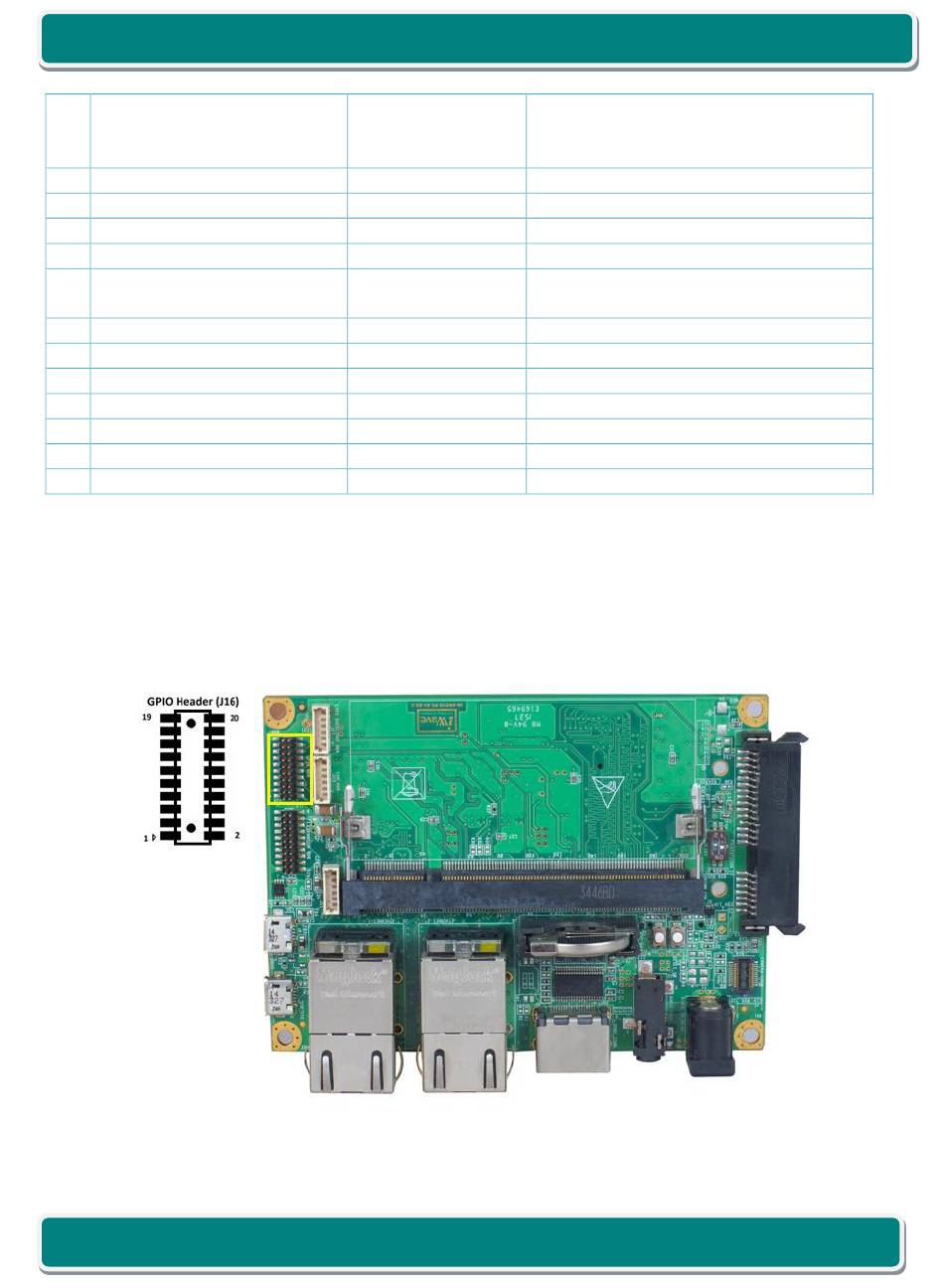

Figure 20: GPIO Header

and no external loads or pull-up/pull-down
resistors to be connected to these pins which
will change the boot configuration
UART3 Interface Transmit Signal.
UART3 Interface Receive Signal.
ECSPI1 Master In Slave Out.
ECSPI1 Chip Select 0
NC.
NC.
NC.
General Purpose Input/Output.
NC.
PWM2 output
Ground.
Ground.
REL1.0
