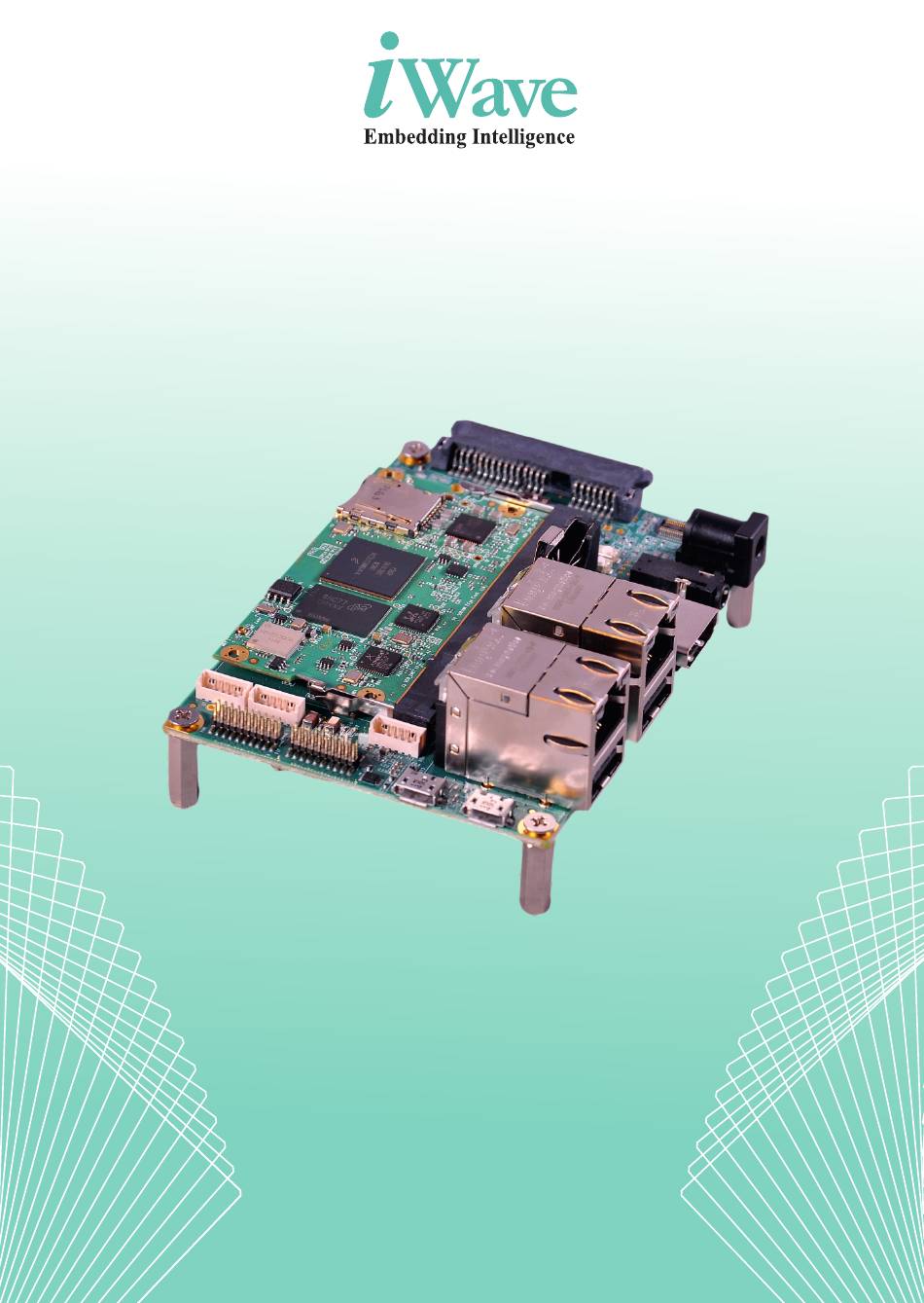

- Page 1 i.MX 8M Mini or i.MX 8M Nano SODIMM SOM Development Platform iW-RainboW-G34D/G37D Quick Start Guide...
- Page 2 Disclaimer iWave Systems reserves the right to change details in this publication including but not limited to any product specification without notice. No warranty of accuracy is given concerning the contents of the information contained in this publication. To the extent permitted by law...
- Page 3 Introduction Quick Start Guide (QSG) This document is designed for the users to understand iWave’s iW- RainboW-G34D-i.MX 8M Mini or iW-RainboW-G37D-i.MX 8M Nano SODIMM Development Platform and start evaluation quickly & easily. Quick Start Guide (QSG) provides the detailed instructions for setting- up the Development Platform from a packed box.
-
Page 4: Product Disposal
Safety Do not assemble or use this Development Platform before reading the installation procedure. ESD Protection This Development Platform is ESD sensitive. Handle this product only in accordance with the installation instructions given in the manual. Therefore ESD precautions should be taken care during transport and handling. -
Page 5: Quick Start Steps
Quick Start Steps Step 1 - Unpacking Remove the Development Platform from box and place above the ESD free area. Use anti-static pad/mat with proper grounding to place the Development Platform. Also make sure that, below deliverables are received without any physical damage. WIFI &... -
Page 6: Quick View
Quick View SODIMM SOM TOP View 1. Wi-Fi & BT Module 2. LPDDR4 3. i.MX 8M Mini or i.MX 8M Nano SoC 4. Micro SD Conn.* 5. SODIMM Edge BOTTOM View 6. eMMC *Optional... - Page 7 Quick View Top View 1.Power Jack 2.Audio In/Out Jack HDMI Connector 4.RTC Header 5.Eth Jack & USB2.0 Conn.-1** 6.Eth Jack** & USB2.0 Conn.-2** 7.USB OTG Connector 8.USB Debug Conn. 9.UART Header 10.Expansion Header CAN Header 12.GPIO Header LVDS Back light Conn. 14.SODIMM Edge Conn.
- Page 8 Step 2 - Read FTP Contents iW-RainboW-G34D/37D Software Release Notes Hardware Binaries Datasheet-UserGuides Datasheet-UserGuides QuickStartGuide Documents SOM-HardwareUserGuide Software UserGuide DevKit-HardwareUserGuide Source code (opt.) DevKit-HardwareUserGuide Heatsink-Datasheet Tool Heatspreader-Datasheet PCB-CAD Files Mechanical Files Patch DevKit Tool Contact For FTP Link : support.ip@iwavesystems.com/mktg@iwavesystems.com Before moving to next step, one must go through all the documents including Hardware User Guides and get familiar about iW-RainboW- G34D-i.MX 8M Mini or iW-RainboW-G37D-i.MX 8M Nano SODIMM SOM &...
- Page 9 Step 3- Setting-Up Before setting up the test environment, one must go through "Hardware User Guides" and get familiar with hardware section of iW- RainboW-G34D-i.MX 8M Mini or iW-RainboW-G37D-i.MX 8M Nano SODIMM Development Platform. Check the On Board Switch Setting Make sure On-Board Switch (SW4) is set properly as shown below image.
-
Page 10: Debug Port Setting
Debug Port Setting Connect Type-A end of USB cable to PC and Micro-B end of USB cable to Development platform's debug Micro USB connector(J8) as shown below. Install the driver for Debug Port in Host PC/Laptop using the below link. https://ftdichip.com/drivers/vcp-drivers/ Setup the Debug Terminal parameters. - Page 11 1. Do not try to connect any other power supply other than the supplied one along with the Development Kit. 2. Do not plug or remove the SOM from carrier board with live power. 3. Contact iWave If power LEDs are not glowing.
- Page 12 Step 4 - Test Environment setup ser must go through "Software User Guide" and get familiar about software section of iW-RainboW-G34D-i.MX8M Mini or iW-RainboW- G37D-i.MX 8M Nano SODIMM Development Board. Operating System Support Linux 4.14 (or higher) Android Pie 9.0 (or higher) Power is applied to the Development Platform &...
- Page 13 Command Prompt (Android) 08 11...
- Page 14 Product Name : i.MX 8 QM/QP Pico ITX SBC Processor : NXP’s i.MX 8 QM/QP SoC RAM : 4GB LPDDR4* Application : Industrial Motor Control, Sensor Fusion, Industrial IoT, Complex consumer, medical, and industrial embedded computing applications RAM size is expandable. Contact iWave team for further details...
-
Page 15: Need More Help
Live Chat support. Phone Call us on : +91-80-26683700, 26781643, 26786245 Warranty & RMA Warranty support for Hardware: 1 Year from iWave or iWave's EMS partner. For warranty terms, scan the QR code or go to https://www.iwavesystems.com/support/warranty/... - Page 16 Headquarters: INDIA JAPAN UNITED STATES iWave Systems Tech. Pvt. Ltd. iWave Japan, Inc. iWave US 7/B, 29th Main, BTM Layout 2nd Stage, 8F-B, Kannai Sumiyoshi Building, 1692 Westmont Ave., Campbell, Bengaluru-560076,India. 3-29, Sumiyoshi-cho, Naka-ku, Yokohama, CA95008 USA Ph: +91-80-26683700, 26781643 Kanagawa, Japan.
