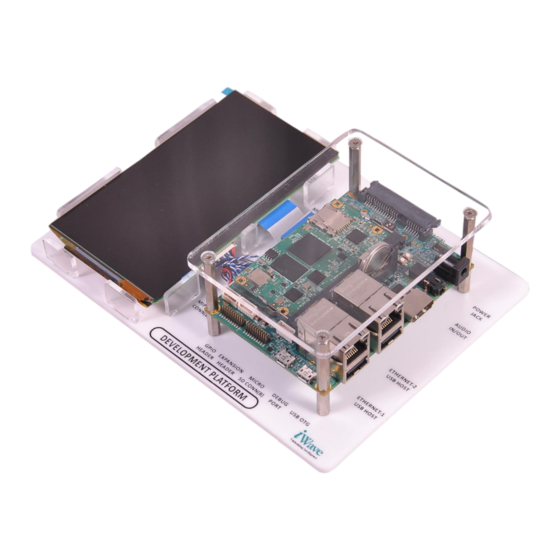

iWave iW-RainboW-G34D Hardware User's Manual

I.mx 8m mini or i.mx 8m nano sodimm development platform
Hide thumbs Also See for iW-RainboW-G34D:
Table of Contents

Advertisement

Quick Links

Download this manual
i.MX 8M Mini or i.MX 8M Nano SODIMM Development Platform Hardware User
Guide
iW-RainboW-G34D/G37D
i.MX 8M Mini or i.MX 8M Nano SODIMM
Development Platform
Hardware User Guide
REL0.2
iWave Systems Technologies Pvt. Ltd.
Page 1 of 62

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iW-RainboW-G34D and is the answer not in the manual?

Questions and answers

Related Manuals for iWave iW-RainboW-G34D

Summary of Contents for iWave iW-RainboW-G34D

  • Page 1 8M Mini or i.MX 8M Nano SODIMM Development Platform Hardware User Guide iW-RainboW-G34D/G37D i.MX 8M Mini or i.MX 8M Nano SODIMM Development Platform Hardware User Guide REL0.2 iWave Systems Technologies Pvt. Ltd. Page 1 of 62...
  • Page 2 If you are not the intended recipient (or authorized to receive for the recipient), you are hereby notified that any disclosure, copying distribution or use of any of the information contained within this document is STRICTLY PROHIBITED. Thank you. “iWave Systems Tech. Pvt. Ltd.” REL0.2 iWave Systems Technologies Pvt.
  • Page 3 No warranty of accuracy is given concerning the contents of the information contained in this publication. To the extent permitted by law no liability (including liability to any person by reason of negligence) will be accepted by iWave Systems, its subsidiaries or employees for any direct or indirect loss or damage caused by omissions from or inaccuracies in this document.

  • Page 4: Table Of Contents

    8M Mini or i.MX 8M Nano SODIMM MIPI Daughter Board Block Diagram ........... 49 SODIMM MIPI Daughter Board Features ......................50 Video Features ..............................51 3.3.1 MIPI DSI Display ............................51 3.3.2 MIPI CSI Camera ............................53 TECHNICAL SPECIFICATION.......................... 55 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 4 of 62...
  • Page 5 Guidelines to insert the i.MX 8M Mini or i.MX 8M Nano SODIMM SOM into Carrier Board ......61 Guidelines to remove the i.MX 8M Mini or i.MX 8M Nano SODIMM SOM from Carrier board ....61 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 5 of 62...
  • Page 6 Figure 28: i.MX 8M Mini or i.MX 8M Nano SODIMM Module Insertion procedure ............61 Figure 29: i.MX 8M Mini or i.MX 8M Nano SODIMM Module Removal procedure ............61 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 6 of 62...
  • Page 7 Table 19: Power Input Requirement ..........................56 Table 20: Environmental Specification ........................... 57 Table 21: i.MX 8M Mini Orderable Product Part Numbers .................... 59 Table 22: i.MX 8M Nano Orderable Product Part Numbers ................... 60 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 7 of 62...

  • Page 8: Introduction

    The SODIMM is a versatile small form factor computer Module targeting applications that require low power, low cost and high performance. iW-RainboW-G34D Development Platform comes with SODIMM Carrier board, SODIMM MIPI Daughter board and i.MX 8M Mini or i.MX 8M Nano based SODIMM SOM along with 5.5-inch Capacitive Touch Display. The development board can be used for quick prototyping of various applications targeted by the i.MX 8M Mini or i.MX 8M Nano processor.
  • Page 9 Restriction of Hazardous Substances Real Time Clock Request to Send SDIO Secure Digital Input Output System On Module UART Universal Asynchronous Receiver/Transmitter Universal Serial Bus USB OTG USB On The Go Voltage REL0.2 iWave Systems Technologies Pvt. Ltd. Page 9 of 62...

  • Page 10: Terminlogy Description

    Note: Signal Type does not include internal pull-ups or pull-downs implemented by the chip vendors and only includes the pull-ups or pull-downs implemented on board. References • IMX8MMIEC_Rev_x.pdf • IMX8MNIEC_Rev_x.pdf REL0.2 iWave Systems Technologies Pvt. Ltd. Page 10 of 62...

  • Page 11: Architecture And Design-Sodimm Carrier Board

    This section provides detailed information about the i.MX 8M Mini or i.MX 8M Nano SODIMM development platform carrier board features with high level block diagram and detailed information about each block. i.MX 8M Mini or i.MX 8M Nano SODIMM Development Platform Block Diagram iW-RainboW-G34D/G37D-i.MX 8M Mini or i.MX 8M Nano SODIMM SOM Development Platform Block Diagram SODIMM...

  • Page 12: I.mx 8M Mini Or I.mx 8M Nano Sodimm Development Platform Features

    Data UART x 2 Port (One is Optional) • PWM x 1 Port • ECSPI x 2 Port (One is Optional) 20Pin GPIO Header • ECSPI x 1 • GPIOs REL0.2 iWave Systems Technologies Pvt. Ltd. Page 12 of 62...
  • Page 13 UART1 interface cannot be supported in 20Pin Expansion Connector of SODIMM carrier card. i.MX 8M Mini or i.MX 8M Nano SOC’s MIPI CSI and MIPI DSI interface is validated with iWave’s SODIMM MIPI daughter Board where signals are connected from MIPI CSI FPC Connector (40Pin) & MIPI DSI Connector (20Pin) of SODIMM carrier card.

  • Page 14: Sodimm Edge Connector

    This standard 200-pin robust connector is capable of handling high-speed signals and can be used for size constrained embedded applications. This SODIMM Edge mating connector (J14) is physically located at the top of the board as shown below. Figure 2: SODIMM Connector REL0.2 iWave Systems Technologies Pvt. Ltd. Page 14 of 62...

  • Page 15: Table 3: 200-Pin Pcb Edge Connector Pin Assignment

    I, 3.3V Power Supply Voltage. Power Ground. GPHY2_ACTIVITY_LED1 O, 3.3V CMOS Second Ethernet Activity status LED. (NC in Nano) Note: This Signal is Optionally Connected to SODIMM Edge. Default not Populated REL0.2 iWave Systems Technologies Pvt. Ltd. Page 15 of 62...
  • Page 16 SODIMM Edge. Default not Populated GPHY2_DTXRXP (NC in IO, DIFF Second Gigabit Ethernet differential pair 4 Nano) positive. Note: This Signal is Optionally Connected to SODIMM Edge. Default not Populated REL0.2 iWave Systems Technologies Pvt. Ltd. Page 16 of 62...
  • Page 17 ECSPI2_MISO ECSPI2_MISO/A8 I, 3.3V CMOS SPI2 Master Input Slave Output. GPIO_CLK(SAI5_MCLK) SAI5_MCLK/AD15 O, 3.3V CMOS Master Clock for Audio codec. Power Ground. ECSPI2_SCLK ECSPI2_SCLK/E6 O, 3.3V CMOS SPI2 clock signal. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 17 of 62...
  • Page 18 I, 3.3V Power Supply Voltage. SAI5_TX_SYNC(SAI5_RXD SAI5_RXD1/AC14 O, 3.3V CMOS SAI5 Transmitter Frame Sync SAI5_TX_BCLK(SAI5_RXD2 SAI5_RXD2/AD13 O, 3.3V CMOS SAI5 Transmitter Bit Clock SAI5_RX_BCLK(SAI5_RXC) SAI5_RXC/AC15 I, 3.3V CMOS SAI5 Receiver Bit Clock. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 18 of 62...
  • Page 19 SD Clock Line. CMOS 110 NC 111 SD2_DATA1 SD2_DATA1/AB24 IO, 3.3V/1.8V SD data 1 line. CMOS 112 SD2_DATA2 SD2_DATA2/V24 IO, 3.3V/1.8V SD data 2 line CMOS 113 GND Power Ground. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 19 of 62...
  • Page 20 PCIe Transmit Negative. 0.1uF AC Coupled 130 PCIE_RXN (NC in Nano) PCIE_RXN_N/A19 I, PCIe PCIe Receive Negative 131 GND Power Ground. 132 GPIO_RESET(GPIO5_2) SAI3_TXD/AF6 O, 3.3V CMOS General Purpose Reset Output. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 20 of 62...
  • Page 21 (NC in Nano) SAI1_RXD4/AG18 I, 3.3V CMOS SAI1 Receiver Data 4. 100K PD Note: These signals are also used for i.MX8M Mini SOC boot media setting on SOM and so no REL0.2 iWave Systems Technologies Pvt. Ltd. Page 21 of 62...
  • Page 22 MIPI CSI differential data lane 2 negative 163 SAI1_TXD4 (NC in Nano) SAI1_TXD4/AG22 O, 3.3V CMOS SAI1 Transmit Data 4. 100K PD Note: These signals are also used for i.MX8M Mini REL0.2 iWave Systems Technologies Pvt. Ltd. Page 22 of 62...
  • Page 23 SAI1 Transmit Data 3. 4.7K PU Note: These signals are also used for i.MX8M Mini SOC boot media setting on SOM and so no external loads or pull-up/pull-down resistors to be REL0.2 iWave Systems Technologies Pvt. Ltd. Page 23 of 62...
  • Page 24 USB2 OTG High Speed Data Positive. 191 JTAG_TDO JTAG_TDO/E26 O, 3.3V CMOS JTAG Test Data Output. 192 VIN_3V3 I, 3.3V Power Supply Voltage. 193 JTAG_TRST_B(BOOT_MO JTAG_TRST_B/C2 I, 3.3V CMOS JTAG Test Reset. DE2) REL0.2 iWave Systems Technologies Pvt. Ltd. Page 24 of 62...
  • Page 25 JTAG Test Clock. 198 GND Power Ground. 199 JTAG_TMS JTAG_TMS/F27 I, 3.3V CMOS JTAG Test Mode Select. 200 USB_OTG1_VBUS I, Power 5V USB1 VBUS Power. * Optional feature, by default not supported. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 25 of 62...

  • Page 26: Serial Interface Features

    Pin Name Description Termination V_DBG_5V I, 5V Power 5V Power. DBUG_USB_DM IO, Diff Debug USB Data negative. DBUG_USB_DP IO, Diff Debug USB Data positive. DBUG_USB_ID No connect. DBUG_USB_GND Power Ground. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 26 of 62...

  • Page 27: Data Uart Header

    3.3V Supply Voltage. UART_TXD UART2_TX(SAI3_TXC) O, 3.3V CMOS UART2 Interface Transmit signal. UART_RXD UART2_RX(SAI3_TXFS) I, 3.3V CMOS UART2 Interface Receive signal. UART_RTS# UART2_RTS_B(SAI3_RXD) I, 3.3V CMOS UART2 Interface Ready to Send signal. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 27 of 62...

  • Page 28: Communication Features

    Jack supports Speed (Yellow) and Link/Activity (Green) LED indications on RJ45 Magjack connector. This RJ45 Magjack connector is physically located at the top of the board as shown below. Figure 5: 10/100/1000Mbps RJ45 MagJack -1 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 28 of 62...

  • Page 29: 10/100/1000 Mbps Ethernet-2 (Optional) (Not Available In Nano)

    Note: In i.MX 8M Mini SOM, PCIe lane signals are optionally to connected to PCIe to Ethernet controller and by default connected to SODIMM PCB Edge Connector. So, either one interface can be supported in the i.MX 8M Mini SOM. Please contact iWave, if 10/100/1000Mbps Ethernet interface support is required in 2 Ethernet Port.

  • Page 30: Usb2.0 Device

    USB Micro AB connector (J6). USB OTG as device functionality is only supported in i.MX 8M Mini or i.MX 8M Nano SODIMM carrier board. This USB Micro AB connector is physically located at the top of the board as shown below. Figure 7: USB2.0 Device Port REL0.2 iWave Systems Technologies Pvt. Ltd. Page 30 of 62...

  • Page 31: Usb2.0 Host (Not Available In Nano)

    SODIMM Connector. These USB2.0 Type A host connectors are physically located at the top of the board as shown below. Figure 8: USB 2.0 Host Ports REL0.2 iWave Systems Technologies Pvt. Ltd. Page 31 of 62...

  • Page 32: Microsd Slot

    Micro SD storage. The main power to Micro SD connector is 3.3V. This Micro SD connector (J19) is physically located at the bottom of the board as shown below. Figure 9: Micro SD Connector REL0.2 iWave Systems Technologies Pvt. Ltd. Page 32 of 62...

  • Page 33: High Speed Interfaces

    O, 3.3V Power 3.3V Power Supply. VCC_PCIe3V3 VCC_PCIe3V3 COEX1 Power Ground. COEX2 VCC_1V5_3G O, 1.5V Power Supply for 3G VCC_1V5_3G CLKREQ# UIM_PWR Power Ground. UIM_DATA PCIE_REFCLK_DM(CLK1_N) PCIE_REFCLK_DM O, DIFF PCIe reference clock negative. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 33 of 62...
  • Page 34 Ground VCC_PCIe3V3 O, 3.3V 3.3V Power Supply. VCC_PCIe3V3 LED Enable. LED_WWAN# I, 3.3V CMOS Connected to green LED D15 and default populated. Power Ground LED_WLAN# I, 3.3V CMOS LED Enable. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 34 of 62...
  • Page 35 I, 3.3V CMOS Connected to green LED D17 and default populated. RSVD1 VCC_1V5_3G O, 1.5V Power Supply for 3G VCC_1V5_3G RSVD2 Power Ground RSVD3 VCC_PCIe3V3 O, 3.3V Power 3.3V Power Supply. VCC_PCIe3V3 REL0.2 iWave Systems Technologies Pvt. Ltd. Page 35 of 62...

  • Page 36: Audio/Video Features

    Pin Name Signal Name Description Termination AGND Power Analog Ground. HP_Left HP_L O, Analog Headphone Output Left. HP_Right HP_R O, Analog Headphone Output Right. I, Analog Microphone Input Signal. No Connect. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 36 of 62...

  • Page 37: Additional Features

    Figure 12: MIPI CSI Camera FPC Connector Important Note: The OV5640 MIPI Camera is supported in SODIMM MIPI daughter board. For more information on daughter board please contact iWave. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 37 of 62...

  • Page 38: Table 8: 40 Pin -Mipi Csi Camera Fpc Connector

    O,3.3V CMOS General Purpose Input/Output. ROTATE/NC2 (NC in SAI1_TXD1 SAI1 Transmit 1. Nano) SHUT/STB/NC3 SAI1_TXD2 SAI1 Transmit 2. Nano) VSS6 Power Ground. VCC_3V3 O, 3.3V Power 3.3V Supply Voltage. YU/NC REL0.2 iWave Systems Technologies Pvt. Ltd. Page 38 of 62...

  • Page 39: Mipi Dsi Display Interface Connector

    “G1548FH107GG-001” from i-excellence. Figure 13: MIPI DSI display interface Connector Important Note: The 5.49inch AMOLED Display with Capacitive touch panel is supported in SODIMM MIPI daughter board. For more information on daughter board please contact iWave. REL0.2 iWave Systems Technologies Pvt. Ltd.

  • Page 40: Table 9: 20 Pin -Mipi Dsi Connector Pin Out

    MIPI_DSI Clock Negative. LVDS0_CLK_P MIPI_DSI_CLK_P O, DIFF MIPI_DSI Clock Positive. Power Ground. LVDS0_TX3_N MIPI_DSI_DATA3_N O, DIFF MIPI_DSI DATA Lane3 Negative. LVDS0_TX3_P MIPI_DSI_DATA3_P O, DIFF MIPI_DSI DATA Lane3 Positive. Power Ground. Power Ground. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 40 of 62...

  • Page 41: Boot Mode Switch

    8M Mini eFUSE settings. In this mode, i.MX 8M Mini boot device can be programmed through Serial Downloader its USB OTG interface using UUU Mode Tool. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 41 of 62...

  • Page 42: Reset Switch

    8M Nano SODIMM SOM. “n_RST_OUT” signal in SODIMM Edge connector is directly connected from Reset Push button switch. This Reset Push button switch (SW2) is physically located at the top of the board as shown below. Figure 15: Reset Switch REL0.2 iWave Systems Technologies Pvt. Ltd. Page 42 of 62...

  • Page 43: Power On/Off Switch

    A customized 20-pin ARM JTAG connector is available in i.MX 8M Mini or i.MX 8M Nano SODIMM carrier board for debug purpose. JTAG connector (J18) is physically located at the bottom of the board as shown below. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 43 of 62...

  • Page 44: Figure 17: Jtag Header

    This pin is connected to ground through 10K pull down resistor. Power Ground. JTAG_TDO O, 3.3V CMOS JTAG test data Output. Power Ground. PWRON_B I,3.3V CMOS/ Reset Signal. 10K PU Power Ground. No Connect. Power Ground. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 44 of 62...

  • Page 45: Rtc Coin Cell Holder

    UART, ECSPI, PWM, GPIO interface signals from i.MX 8M Mini or i.MX 8M Nano SOC is available in this header. This Expansion Header (J12) is physically located at the top of the board as shown below. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 45 of 62...

  • Page 46: Figure 19: Expansion Header

    UART3_TXD O, 3.3V CMOS UART3 Interface Transmit Signal. UART3_RXD I, 3.3V CMOS UART3 Interface Receive Signal. ECSPI1_MISO O, 3.3V CMOS ECSPI1 Master In Slave Out. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 46 of 62...

  • Page 47: Gpio Header

    8M Mini or i.MX 8M Nano SOC. 4 GPIOs, SAI1 signals (available in Mini only), ECSPI interface signals pins SODIMM Edge is directly connected to this GPIO Header. This GPIO Header (J16) is physically located at the top of the board as shown below. Figure 20: GPIO Header REL0.2 iWave Systems Technologies Pvt. Ltd. Page 47 of 62...

  • Page 48: Table 15: Gpio Header Pin Out

    ¹Important Note: These signals are also used for SOC boot media setting on i.MX 8M Mini SODIMM SOM and no external loads or pull-up/pull-down resistors to be connected to these pins which will change the boot configuration. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 48 of 62...

  • Page 49: Architecture And Design-Sodimm Mipi Daughter Board

    Power to On Board Circuits & Peripherals MIPI DSI[3:0] MIPI 20pin MIPI MIPI Display Connector Camera I2C3 Connector iWave Systems Technologies Pvt. Ltd. mktg@iwavesystems.com Figure 21: SODIMM MIPI Daughter Board Block Diagram REL0.2 iWave Systems Technologies Pvt. Ltd. Page 49 of 62...

  • Page 50: Sodimm Mipi Daughter Board Features

    MIPI DSI 4lane Display Connector with Capacitive Touch • MIPI CSI 2lane/4lane Camera Connector General Specification • Form Factor : 124.15mm X 70.36mm Figure 22: SODIMM MIPI Daughter Board MIPI Connectors REL0.2 iWave Systems Technologies Pvt. Ltd. Page 50 of 62...

  • Page 51: Video Features

    Power Ground. Power Ground. Power Ground. O, 3.3V Power 3.3V Supply voltage for LED Driver Circuit. VBAT VCC_3V3_TFT O, 3.3V Power 3.3V Supply voltage for LED Driver Circuit. VBAT VCC_3V3_TFT REL0.2 iWave Systems Technologies Pvt. Ltd. Page 51 of 62...
  • Page 52 O, 1,8V CMOS I2C Clock for Capacitive Touch TP_SCL I2C3_SCL O, 1.8V CMOS RESET for Capacitive Touch TP_RESET GPIO1_1(TP_RST) I, 1.8V CMOS Interrupt from Capacitive Touch TP_INT GPIO1_8(TP_INT) Power Ground. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 52 of 62...

  • Page 53: Mipi Csi Camera

    DVDD O, Power 1.2V Supply voltage DOVDD DOVDD O, Power 1.8V Supply voltage MDP1 MIPI_CSI1_DATA1_P I, MIPI MIPI_CSI DATA Lane1 Positive XCLK XCLK O, CMOS Reference Clock to Camera Module REL0.2 iWave Systems Technologies Pvt. Ltd. Page 53 of 62...
  • Page 54 MIPI_CSI Clock Negative MDP0 MIPI_CSI1_DATA0_P I, MIPI MIPI_CSI DATA Lane0 Positive MDN0 MIPI_CSI1_DATA0_N I, MIPI MIPI_CSI DATA Lane0 Negative AF-VCC AF-VCC O, Power 2.8V Supply voltage AF-AGND AF-AGND Power AF Ground. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 54 of 62...

  • Page 55: Technical Specification

    1.35mm and an outer dimension of 3.5mm. This connector is physically placed at the top of the board as shown below. Figure 25: Power Jack Table 18: Power Jack Pin Out Signal Type / Signal Name Description Termination 5V, Power Input Supply Voltage. Power Ground. Power Ground. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 55 of 62...

  • Page 56: Table 19: Power Input Requirement

    NXP recommends customers to remove power (Voltage source) to all components on the board in the event of a processor reset. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 56 of 62...

  • Page 57: Environmental Characteristics

    10%RH 90%RH ¹ 5V AC Adaptor and Type A Male to Micro B Male cable has lower temperature range. iWave guarantees other component selection for the given operating temperature. To meet this humidity specification, conformal coating needs to be done on the boards. By default, iWave boards doesn’t come with conformal coating.

  • Page 58: Mechanical Characteristics

    JTAG Header (5mm). Please refer the below figure for height details of the i.MX 8M Mini or i.MX 8M Nano SODIMM Carrier Board. Figure 27: Mechanical dimension of i.MX 8M Mini or i.MX 8M Nano Carrier Board - Side View REL0.2 iWave Systems Technologies Pvt. Ltd. Page 58 of 62...

  • Page 59: Ordering Information

    LPDDR4, eMMC flash, 1xEthernet, Android Kit with 5.5" Capacitive touch LCD Commercial display. Note: For Development platform identification purpose, Product part number is pasted as Label with Barcode readable format. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 59 of 62...

  • Page 60: Table 22: I.mx 8M Nano Orderable Product Part Numbers

    Nano Solo, 2GB LPDDR4, 8GB eMMC flash, Commercial Android Kit with 5.5" Capacitive touch LCD display. Note: For Development platform identification purpose, Product part number is pasted as Label with Barcode readable format. REL0.2 iWave Systems Technologies Pvt. Ltd. Page 60 of 62...

  • Page 61: Appendix

    The module pops up. Grasp the edge of the module (B), and gently pull the module out of the connector Figure 29: i.MX 8M Mini or i.MX 8M Nano SODIMM Module Removal procedure REL0.2 iWave Systems Technologies Pvt. Ltd. Page 61 of 62...
  • Page 62 8M Mini or i.MX 8M Nano SODIMM Development Platform Hardware User Guide REL0.2 iWave Systems Technologies Pvt. Ltd. Page 62 of 62...
