Basic Menu - RadioLink T8S User Manual

Parameters Setting Steps
When parameters need to be modified, click READ first to input the original data into the software, then

modify as wish and click UPDATE to output the modified data to T8S.
When parameters SAVE as TXT file need to be input, click LOAD first to input the saved data into the

software then click UPDATE to copy them to T8S.

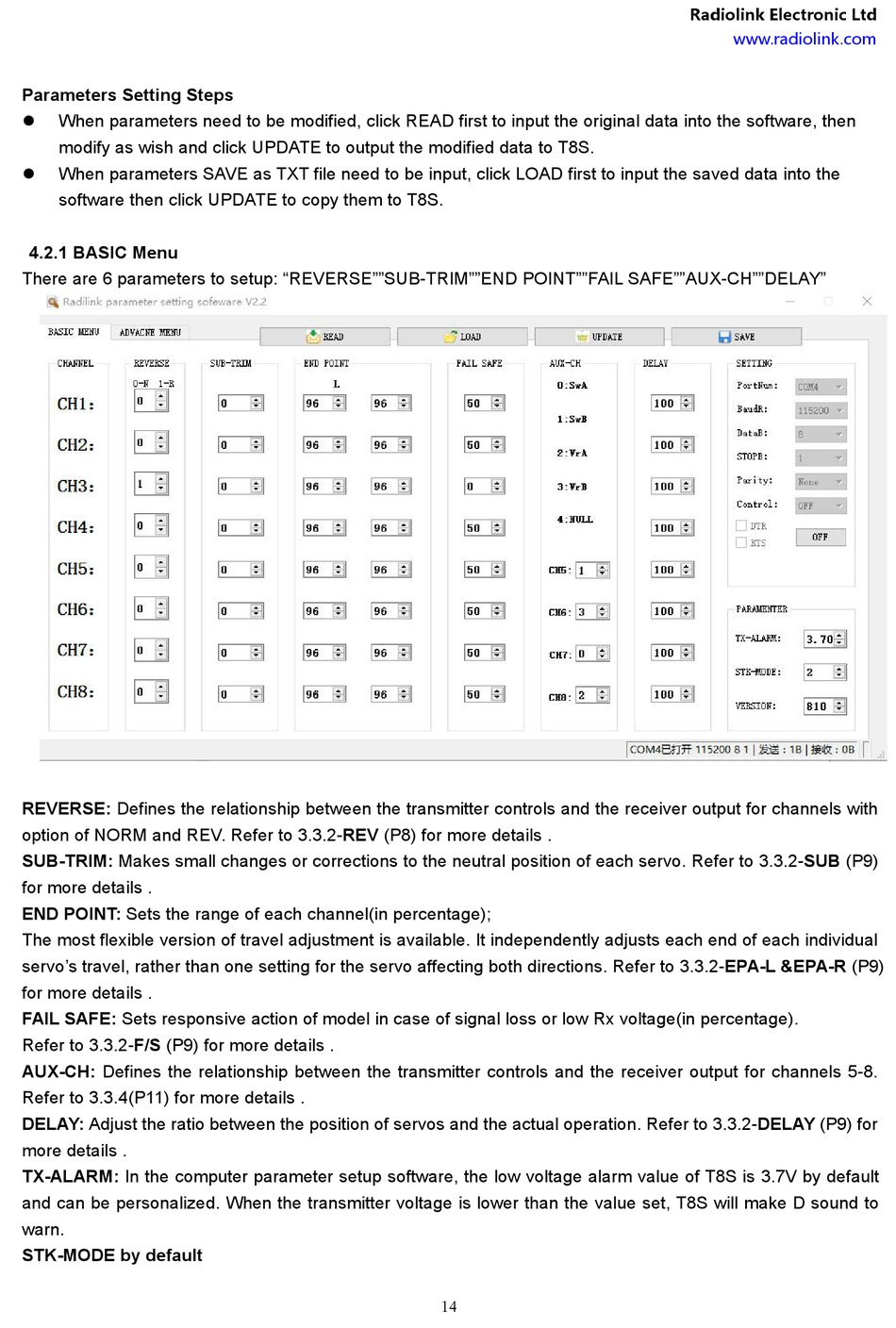

4.2.1 BASIC Menu

There are 6 parameters to setup: "REVERSE""SUB-TRIM""END POINT""FAIL SAFE""AUX-CH""DELAY"
REVERSE: Defines the relationship between the transmitter controls and the receiver output for channels with
option of NORM and REV. Refer to 3.3.2-REV (P8) for more details .
SUB-TRIM: Makes small changes or corrections to the neutral position of each servo. Refer to 3.3.2-SUB (P9)
for more details .
END POINT: Sets the range of each channel(in percentage);
The most flexible version of travel adjustment is available. It independently adjusts each end of each individual
servo's travel, rather than one setting for the servo affecting both directions. Refer to 3.3.2-EPA-L &EPA-R (P9)
for more details .
FAIL SAFE: Sets responsive action of model in case of signal loss or low Rx voltage(in percentage).
Refer to 3.3.2-F/S (P9) for more details .
AUX-CH: Defines the relationship between the transmitter controls and the receiver output for channels 5-8.
Refer to 3.3.4(P11) for more details .
DELAY: Adjust the ratio between the position of servos and the actual operation. Refer to 3.3.2-DELAY (P9) for
more details .
TX-ALARM: In the computer parameter setup software, the low voltage alarm value of T8S is 3.7V by default
and can be personalized. When the transmitter voltage is lower than the value set, T8S will make D sound to
warn.
STK-MODE by default
14
