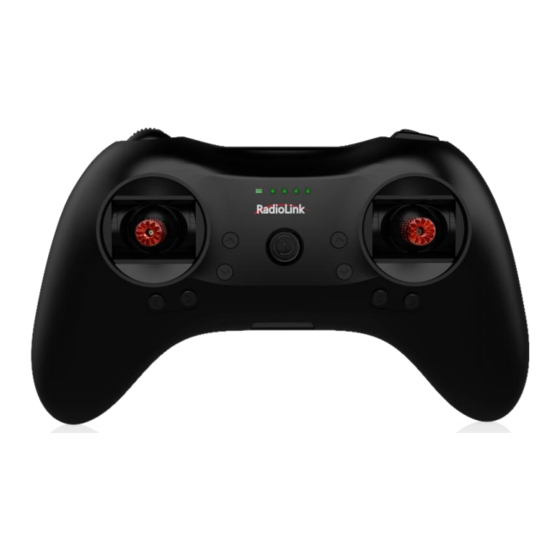

RadioLink T8S User Manual

8-channel remote controller
Hide thumbs Also See for T8S:
Table of Contents

Advertisement

Quick Links

T8S
（FHSS）
User Manual
V 1.4
8-Channel Remote Controller
App Parameter Setting via Bluetooth Connection
Compatible with Fixed-wings/Gliders/Multirotors/Cars/Boats/Robots
CE FCC RoHS
* Please be kindly noted that this manual will be updated regularly and please visit RadioLink official website to
download the latest version：www.radiolink.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T8S and is the answer not in the manual?

Questions and answers

Related Manuals for RadioLink T8S

Summary of Contents for RadioLink T8S

  • Page 1 V 1.4 8-Channel Remote Controller App Parameter Setting via Bluetooth Connection Compatible with Fixed-wings/Gliders/Multirotors/Cars/Boats/Robots CE FCC RoHS * Please be kindly noted that this manual will be updated regularly and please visit RadioLink official website to download the latest version：www.radiolink.com...
  • Page 2 Radiolink Electronic Ltd www.radiolink.com Thank you for purchasing RadioLink 8-channel remote controller T8S. To fully enjoy the benefits of this product and ensure safety, please read the manual carefully and set up the device as instructed steps. If any problems found during the operation process, either way listed below can be used as online technical support.

  • Page 3: Table Of Contents

    3.3.4 SYSTEM Menu..............................9 3.3.4.1 PROG.MIX .............................. 10 3.3.4.2 TH/CURE..............................11 3.3.4.3 DR/CURE..............................11 3.3.4.4 RESET..............................11 Chapter 4 T8S Parameters Setup via Computer.......................12 4.1 Software Installation and Connection........................12 4.2 Parameters Setup Menu............................12 4.2.1 BASIC Menu..............................13 4.2.2 ADVANCE Menu ............................14...

  • Page 4: Chapter 1 Introduction

    1.1 Transmitter Battery Charging The built-in battery of T8S is 1S lithium. When the voltage becomes low, the green indicator will flash with a DD warning tone. Make sure to charge the battery in time to avoid the possible damage by over discharge.

  • Page 5: Binding

    If a new compatible receiver is purchased, binding needs to be done before using. Binding steps of all transmitters and receivers from RadioLink are the same as follow: Put the transmitter and the receiver close to each other (about 50 centimeters) and power both on.

  • Page 6: Chapter 2 Firmware Upgrade

    Radiolink Electronic Ltd www.radiolink.com first green indicator is always on, meaning the stick calibration is complete. Then turn off T8S and repower it Elevator Trimmer Buttons Throttle Trimmer Buttons Rudder Trimmer Buttons Aileron Trimmer Buttons Chapter 2 Firmware Upgrade T8S can be update with latest functions added, keeping advanced as always.
  • Page 7 Radiolink Electronic Ltd www.radiolink.com Click CONNECT and press the power button once quickly within 1 second. When “DISCONNECT” in RED turns to “CONNECT” in GREEN, it means it’s connected with success. Click APROM and choose the latest firmware downloaded from https://www.radiolink.com/t8s_firmwares...

  • Page 8: Chapter 3 Parameters Setup Via Mobile

    3.2 APP Connection Connection of both Android APP and Apple APP to T8S are the same as below: When the installation of parameter setup APP is complete, press the power button to turn on T8S Click to enter the APP, a message will pop out to ask for permission to turn on the Bluetooth function.

  • Page 9: Parameters Setup Menu

    APP. If fails, press DISCONNECT and CONNECT again. READ: Click READ, two short D sounds will be heard and the APP starts reading the data in T8S. The current data of the T8S won’t display on the APP until clicking READ.

  • Page 10: Servo Menu

    SYSTEM RESET The above menus are all available on Android APP V7.1 and above. Menu No 1. to 4 are available on Apple APP. The latest APP will be frequently updated on RadioLink official website www.radiolink.com 3.3.1 SERVO Menu The 8 rectangles show the CH1-CH8 servos range (4 basic channels and 4 auxiliary channels) from left to right.

  • Page 11: Advanced Menu

    The default value is 96 with the range from 0 to 120. F/S: (Fail-safe) sets responsive action of model in case of signal loss or low T8S voltage. Each channel can be set independently. The F/S (Fail Safe) function moves each servo to a predetermined position.

  • Page 12: System Menu

    T8S of each attitude is corresponding to the values of flight controller PIXHAWK/MINI PIX/APM/TURBO PIX. That is, when the above flight controllers are used with T8S, attitude can be selected on the Mission Planner and no need to setup specific parameter.

  • Page 13: Prog.mix

    * This function is currently available on Android APP V7.1 and above. RSSI-ALARM(SYSTEM2) The RSSI alarm value can be personalized. When the RSSI goes lower than the set value, T8S will make D sound to warn. * This function is currently available on Android APP V7.1 and above.

  • Page 14: Th/Cure

    * This menu is currently available on Android APP V7.1 and above. 3.3.4.4 RESET This function is to restore the factory setting when necessary. When press this button, T8S will make three slow D sounds, meaning default setting is set.

  • Page 15: Chapter 4 T8S Parameters Setup Via Computer

    T8S will continuously make D sounds, press any of the trimmer buttons to stop the DD sounds. Note： When click OPEN to connect, the SETTING parts mentioned above will turn grey and can’t be changed...

  • Page 16: Basic Menu

    Radiolink Electronic Ltd www.radiolink.com READ: T8S data will be read and displayed on computer when click “READ”. The two LEDs at the rightmost will flash once at the same time with two D sounds . LOAD: The data file in TXT format saved will be loaded in the software.

  • Page 17: Advance Menu

    TX-ALARM: In the computer parameter setup software, the low voltage alarm value of T8S is 3.7V by default and can be personalized. When the transmitter voltage is lower than the value set, T8S will make D sound to warn.

  • Page 18: T8S & R8Sm Parameters

    Compatible transmitters: T8S/  Transmitter Power: <100mW(20dBM)  T8FB/RC6GS V2/RC4GS V2 Section Precision: 4096, 0.5us/section  Compatible receivers: R8SM(Standard),R8EF, R8FM,  R8F,R7FG, R6FG, R6F, R4FGM,R4F Thank you again for choosing RadioLink product.
