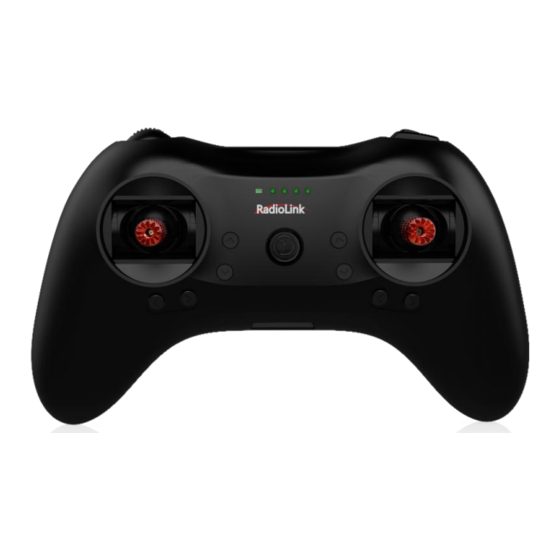

RadioLink T8S User Manual

(fhss) 8-channel remote controller
Hide thumbs Also See for T8S:
Table of Contents

Advertisement

Quick Links

Download this manual

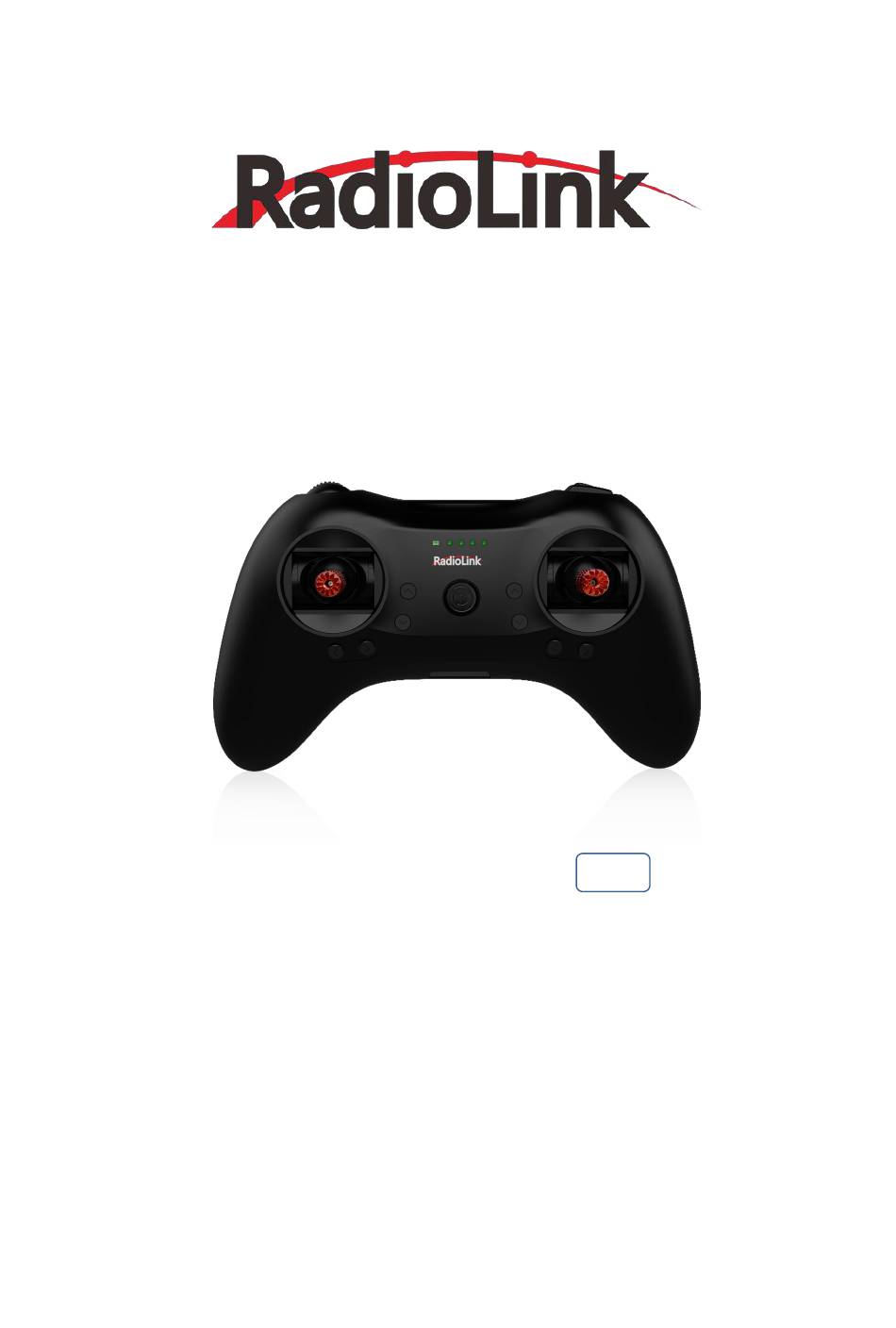

Radiolink Electronic Ltd
www.radiolink.com
T8S
（FHSS）
User Manual
V 1.3
8-Channel Remote Controller
Android App Parameter Setting via Bluetooth Connection
Compatible with Fixed-wings/Gliders/Multirotors/Cars/Boats
CE FCC RoHS
* Please be kindly noted that this manual will be updated regularly and please visit Radiolink
official website to download the latest version：www.radiolink.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T8S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RadioLink T8S

Summary of Contents for RadioLink T8S

  • Page 1 V 1.3 8-Channel Remote Controller Android App Parameter Setting via Bluetooth Connection Compatible with Fixed-wings/Gliders/Multirotors/Cars/Boats CE FCC RoHS * Please be kindly noted that this manual will be updated regularly and please visit Radiolink official website to download the latest version：www.radiolink.com...
  • Page 2 This warranty does not cover products sold as used, as-is or refurbished and does not extend to a secondary purchaser (warranty is not transferrable). The implied warranty of merchantability is limited to the above identified period of time and shall be limited solely to the replacement or repair, at RadioLink’s discretion, of the defective product.
  • Page 3 Radiolink Electronic Ltd www.radiolink.com WARNING This product is not a toy and is NOT suitable for children under the age of 14. Adults should keep the product out of the reach of children and exercise caution when operating this product in the presence of children.

  • Page 4: Table Of Contents

    3.3 Parameters Setup Menu............................8 3.3.1 SERVO Menu..............................9 3.3.2 BASIC Menu..............................9 3.3.3 ADVANCED Menu............................10 3.3.4 SYSTEM Menu..............................11 Chapter 4 T8S Parameters Setup via Computer.......................13 4.1 Software Installation and Connection........................13 4.2 Parameters Setup Menu............................13 4.2.1 BASIC Menu..............................14 4.2.2 ADVANCE Menu..............................15...

  • Page 5: Chapter 1 Introduction

    Chapter 1 Introduction As image of T8S (Mode 2) shown below, there are two 3-way switches, one toggle-switch, one push-button, eight trimmer buttons and two joysticks. The Mode can be personalized to 1(throttle on right hand) or 2 (throttle on left hand) or both sticks return to center points with the small accessory packed in the bag.

  • Page 6: Transmitter Battery Charging

    1.1.2 Transmitter Battery Charging The built-in battery of T8S is 1S lithium. When the voltage becomes low, the green indicator will flash with a DD warning tone. Make sure to charge the battery in time to avoid the possible damage by over discharge.

  • Page 7: Binding

    If a new R8EF or R8FM receiver is purchased, binding needs to be done before using. Binding steps of all transmitters and receivers from RadioLink are the same as follow: （1） Put the transmitter and the receiver close to each other within 50 centimeters （2）...

  • Page 8: Chapter 2 Firmware Upgrade

    Aileron Trimmer Buttons Chapter 2 Firmware Upgrade T8S can be update with latest functions added, keeping advanced as always. The function of data backup makes massive copy possible, even the same model can directly copy data. Set parameters once, copy at ease! The whole file with all necessary tools can be downloaded from www.radiolink.com...
  • Page 9 6. Click “START” and the process bar becomes GREEN. When the green bar goes to the end and shows PASS, the firmware is upgraded with success. 7. When update with success, close the software and T8S will make three DEE sounds.

  • Page 10: Chapter 3 Parameters Setup Via Mobile

    RSSI and model battery voltage Note To realize the telemetry functions, T8S needs to work with RadioLink receiver R7FG or R8F. To fully enjoy the added new functions of unlimited models storage and telemetry display of RSSI and model battery voltage, APP version needs to be updated as V6.1 .

  • Page 11: Connection Via Bluetooth

    Step 4: Turn on Bluetooth on Android phone 3.2 Connection 1. When the installation of parameter setup app is complete, short press the power button to turn on T8S 2. Click to enter the APP, a message will pop out to ask for permission to turn on the Bluetooth function.

  • Page 12: Parameters Setup Menu

    APP, the data displayed are the ones last time disconnected. READ: Click READ, two short D sounds will be heard and the APP starts reading the data in T8S. The current data of the T8S won’t display on the APP until clicking READ.

  • Page 13: Servo Menu

    The default value is 96 with the range from 0 to 120. F/S: (Fail-safe) sets responsive action of model in case of signal loss or low T8S voltage. Each channel can be set independently. The F/S (Fail Safe) function moves each servo to a predetermined position.

  • Page 14: Advanced Menu

    T8S of each attitude is corresponding to the values of flight controller PIXHAWK/MINI PIX/APM/TURBO PIX. That is, when the above flight controllers are used with T8S, attitude can be selected on the Mission Planner and no need to setup specific parameter.

  • Page 15: System Menu

    TX Alarm The default low voltage value is 3.0V, which can be personalized as well. When the transmitter voltage is lower than the value set, T8S will make D sound to warn. STK-MODE by default Mode 1 is throttle at right while Mode 2 is throttle at left. Mode 3 is throttle at right for toys while Mode 4 is...
  • Page 16 Besides the above functions, there are four more parameters added in the new version APP, next to SYSTEM menu: Model data selected/Transmitter voltage/Model voltage/RSSI. But the telemetry of model voltage and RSSI can only be realized by the RadioLink receiver R7FG and R8F.

  • Page 17: Chapter 4 T8S Parameters Setup Via Computer

    PARAMETERS at bottom right will be displayed 4.2 Parameters Setup Menu READ: T8S data will be read and displayed on computer when click “READ”and two D sounds will be heard. LOAD: The data file in TXT format saved will be loaded in the software.

  • Page 18: Basic Menu

    . TX-ALARM: In the computer parameter setup software, the low voltage alarm value of T8S is 3.7V by default and can be personalized. When the transmitter voltage is lower than the value set, T8S will make D sound to warn.

  • Page 19: Advance Menu

    The numbers mean different firmware versions which can be upgraded. The detailed steps of firmware upgrade please refer to Chapter 2. 4.2.2 ADVANCED Menu There are six parameters setup ”D/R” “ATTITUDE” “ELEVON” “V-TAIL”PROG.MIX1/PROG.MIX2 as below shown， please refer to 3.3.3 (P10-11) and 3.3.4(P11-12) for more details.. Thank you again for choosing RadioLink product.
