Chapter 4 T8S Parameters Setup via Computer

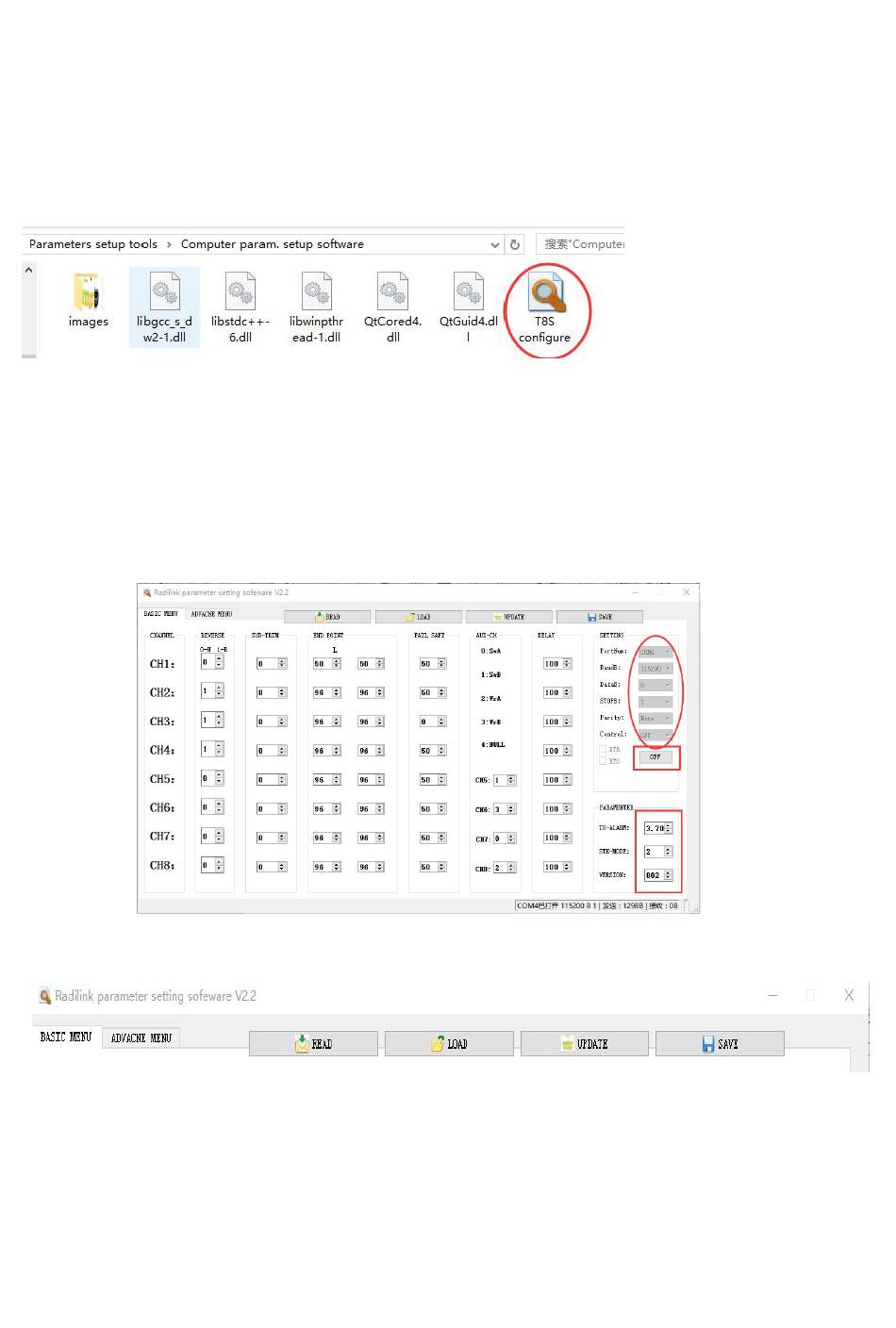

4.1 Software Installation and Connection

Connect the computer and the T8S with an android USB data cable
Open the parameter setup software in the downloaded file，then power on T8S
Choose Port Number( COM port will be automatic identified when connected), setting baud rate: 115200,
8-1-None(8 data bits, 1 stop bit, no parity check), click OPEN to connect. These parameters are on the right of
the software interface.
Note： When click OPEN to connect, the SETTING parts mentioned above will turn grey and can't be changed
and PARAMETERS at bottom right will be displayed

4.2 Parameters Setup Menu

READ: T8S data will be read and displayed on computer when click "READ"and two D sounds will be heard.
LOAD: The data file in TXT format saved will be loaded in the software.
UPDATE: Modify the data as wish or load the data which is saved as file then click "UPDATE"to change the
parameter in T8S. (two green LEDs on the right will flash once with one D sound).
SAVE: The data read or set will be saved as TXT file in the computer. This is very helpful if there are several
sets of radio data need to be saved or if one set of parameters need to be copied in different radios.
