RadioLink T8S User Manual

8-channel remote controller
Hide thumbs Also See for T8S:
Table of Contents

Advertisement

Quick Links

Radiolink Electronic Ltd
www.radiolink.com
T8S
（FHSS）
8-Channel Remote Controller
Android App Parameter Setting via Bluetooth Connection
User Manual
Compatible with Fixed-wings/Gliders/Multirotors/Cars/Boats
CE FCC RoHS
* Please be kindly noted that this manual will be updated regularly and please visit RadioLink
official website to download the latest version.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T8S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RadioLink T8S

Summary of Contents for RadioLink T8S

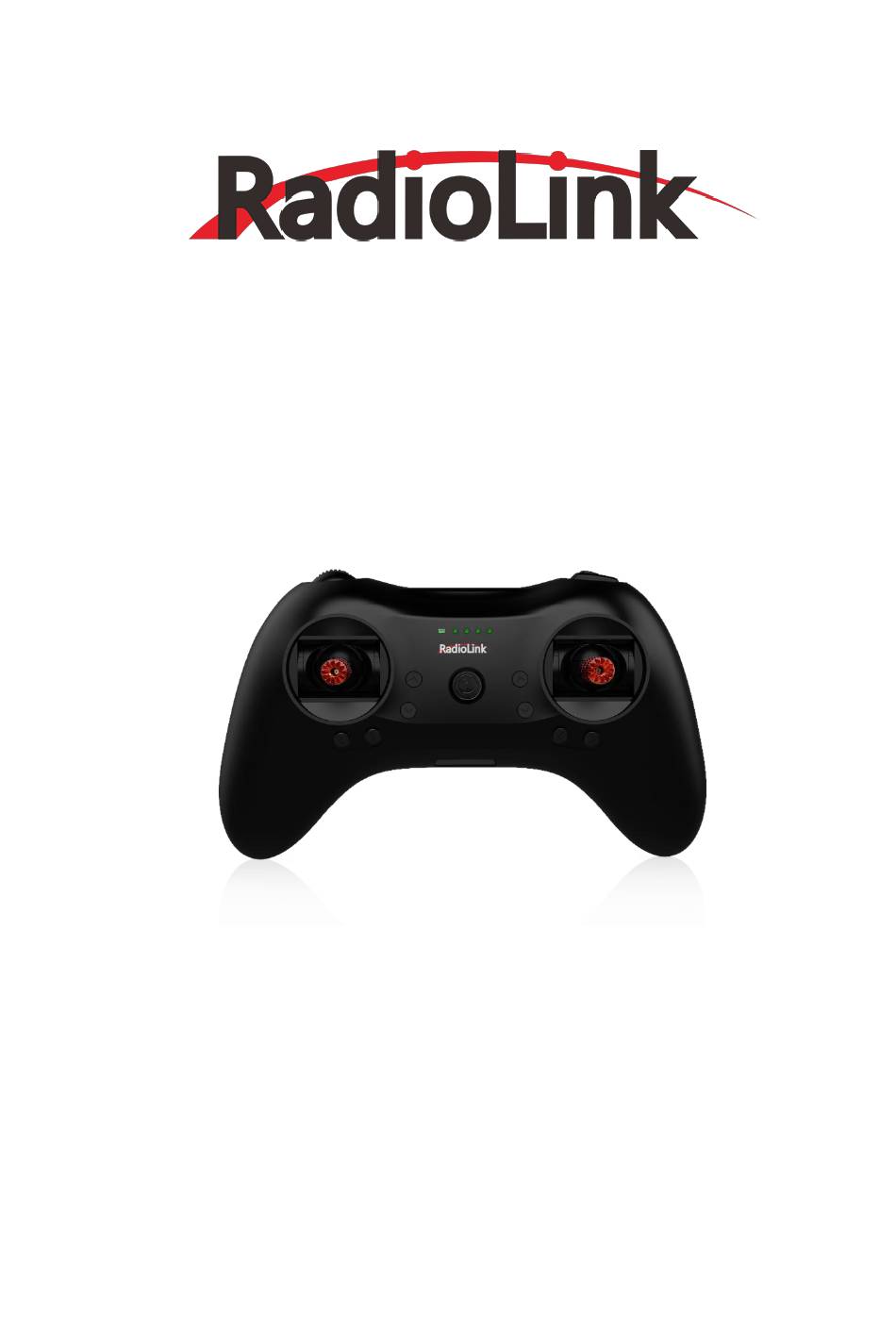

  • Page 1 8-Channel Remote Controller Android App Parameter Setting via Bluetooth Connection User Manual Compatible with Fixed-wings/Gliders/Multirotors/Cars/Boats CE FCC RoHS * Please be kindly noted that this manual will be updated regularly and please visit RadioLink official website to download the latest version.
  • Page 2 Radiolink Electronic Ltd www.radiolink.com Thank you for purchasing RadioLink 8-channel remote controller T8S. To fully enjoy the benefits of this product and ensure safety, please read the manual carefully and set up the device as instructed steps. If any problems found during the operation process, either way listed below can be used as online tech support.
  • Page 3 Radiolink Electronic Ltd www.radiolink.com energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by...

  • Page 4: Table Of Contents

    3.3.2 BASIC Menu ............................8 3.3.3 ADVANCED Menu ..........................9 3.3.4 SYSTEM Menu ..........................10 Chapter 4 T8S Parameters Setup via Computer .................... 12 4.1 Software Installation and Connection ......................12 4.2 Parameters Setup Menu ..........................12 4.2.1 BASIC Menu ............................. 13...

  • Page 5: Chapter 1 Introduction

    Chapter 1 Introduction As image of T8S (Mode 2) shown below, there are two 3-way switches, one toggle-switch, one push-button, eight trimmer buttons and two joysticks. The Mode can be personalized to 1(throttle on right hand) or 2 (throttle on left hand) or both sticks return to center points with the small accessory packed in the bag.

  • Page 6: Transmitter Battery Charging

    1.1.2 Transmitter Battery Charging The built-in battery of T8S is 1S lithium. When the voltage becomes low, the green indicator will flash with a DD warning tone. Make sure to charge the battery in time to avoid the possible damage by over discharge.

  • Page 7: Binding

    If a new R8EF or R8FM receiver is purchased, binding needs to be done before using. Binding steps of all transmitters and receivers from RadioLink are the same as follow: （1） Put the transmitter and the receiver close to each other within 50 centimeters （2）...

  • Page 8: Chapter 2 Firmware Upgrade

    Note The latest firmware for T8S is under development and will be available very soon. The current available one is T8S_FHSS_V803_69da_20190725_33bit.hex.hex as factory default. Below upgrade steps are explained with the default firmware and this T8S manual and the file will upgrade as soon as the latest T8S firmware comes out.
  • Page 9 2. Connect T8S with computer via an android USB data cable 3. Open the software to upgrade T8S firmware and choose the correct COM port 4. Click CONNECT and press the power button once quickly within 1s. When “DISCONNECT” in red turns to “CONNECT”...

  • Page 10: Chapter 3 Parameters Setup Via Mobile

    6. Click “START” and the process bar becomes green. When the green bar goes to the end and shows PASS, the firmware is upgraded with success. 7. When upgrade with success, close the software and T8S will make three DEE sounds. Chapter 3 Parameters Setup via Mobile 3.1 Android APP Installation...

  • Page 11: Connection Via Bluetooth

    DISCONNECT then CONNECT again. READ: Click READ, two short DEE sounds will be heard and the APP starts reading the data in T8S. Every time reopen the APP, the data displayed are default. If any parameter is changed, it can’t be displayed until clicking READ.

  • Page 12: Servo Menu

    Radiolink Electronic Ltd www.radiolink.com software then click WRITE to copy them to T8S. There are four parameter setup menus: SERVO/BASIC/ADVANCED/SYSTEM 3.3.1 SERVO Menu The 8 rectangles shows the CH1-CH8 servos range(4 basic channels and 4 auxiliary channel) from left to right.

  • Page 13: Advanced Menu

    Radiolink Electronic Ltd www.radiolink.com Note If programmable mix control function is used to control several servos for fixed wing/gliders, eg. V-TAIL mix control, make sure to set the phase to avoid possible confusion. SUB: Makes small changes or corrections to the neutral position of each servo. The default is 0 setting by factory setting.

  • Page 14: System Menu

    T8S of each attitude is corresponding to the values of flight controller PIXHAWK/MINI PIX/APM/TURBO PIX. That is, when the above flight controllers are used with T8S, attitude can be selected on the Mission Planner and no need to setup specific parameter.
  • Page 15 TX Alarm The default low voltage value is 3.0V, which can be personalized as well. When the transmitter voltage is lower than the value set, T8S will make D sound to warn. STK-MODE by default 1 is throttle at right while 2 is throttle at left. 3 is throttle at right for toys while 4 is throttle at left for toys.

  • Page 16: Chapter 4 T8S Parameters Setup Via Computer

    Chapter 4 T8S Parameters Setup via Computer 4.1 Software Installation and Connect Connect the computer and the T8S with an android USB data cable Open the parameter setup software in the downloaded file，then power on T8S Choose Port Number( COM port will be automatic identified when connected), setting baud rate: 115200, 8-1-None(8 data bits, 1 stop bit, no parity check), click OPEN to connect.

  • Page 17: Basic Menu

    Radiolink Electronic Ltd www.radiolink.com READ: T8S data will be read and displayed on computer when click “READ”and two D sounds will be heard. LOAD: The data file in TXT format saved will be loaded in the software. UPDATE: Modify the data as wish or load the data which is saved as file then click “UPDATE”to change the parameter in T8S.

  • Page 18: Advance Menu

    . TX-ALARM: In the computer parameter setup software, the low voltage alarm value of T8S is 3.7V by default and can be personalized. When the transmitter voltage is lower than the value set, T8S will make D sound to warn.
  • Page 19 Radiolink Electronic Ltd www.radiolink.com Thank you again for choosing RadioLink product. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, p ursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection a gainst harmful interference in a residential installation.
  • Page 20 Radiolink Electronic Ltd www.radiolink.com (1) This device may not cause harmful interference, and (2) this device must accept any interferen ce received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could...
