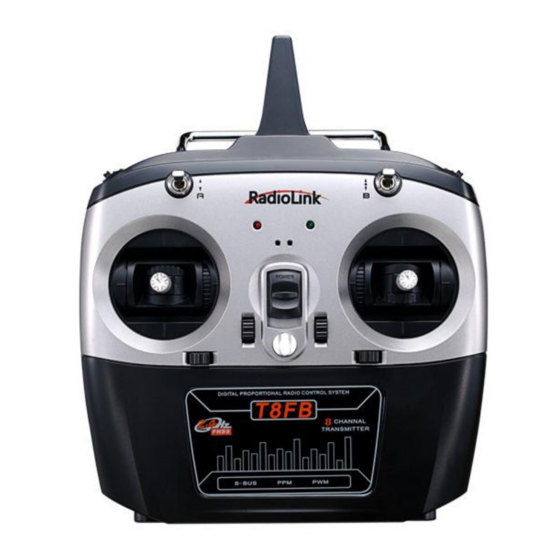

RadioLink T8FB Instruction Manual
Fhss compatible with helicopter/fixed wing/multicopter/car/boat
Hide thumbs
Also See for T8FB:
- User manual (44 pages) ,
- Instruction manual (27 pages) ,
- Instruction manual (20 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RadioLink T8FB
Summary of Contents for RadioLink T8FB

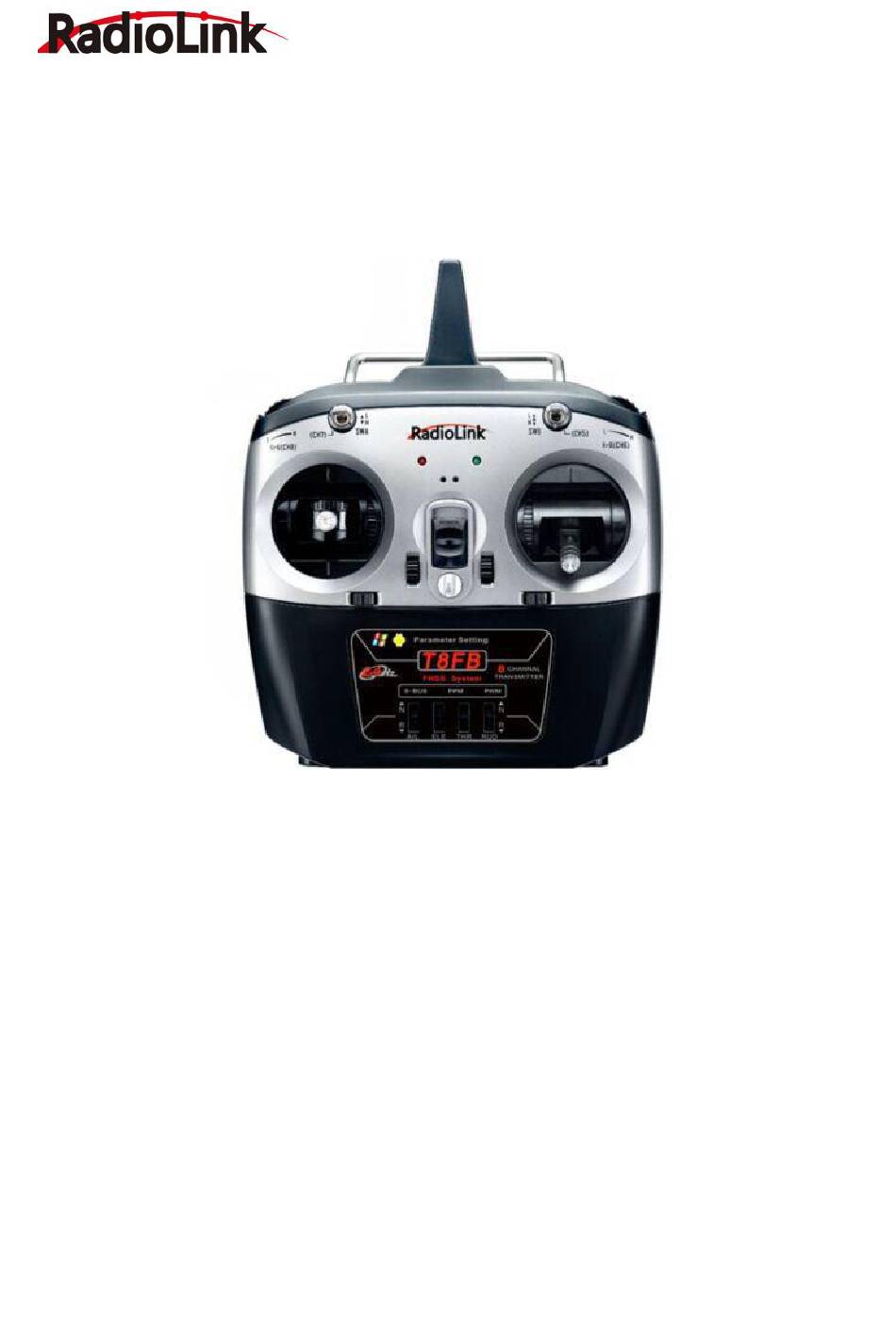

- Page 1 RadioLink Electronic Ltd www.radiolink.com T8FB (FHSS) INSTRUCTION MANUAL Compatible with Helicopter/Fixed Wing/Multicopter/Car/Boat CE FCC RoHS * Please be kindly noted that this manual will be updated regularly and please visit Radiolink official website to download the latest version.
- Page 2 2. PM us on our Facebook page or leave comments on our Youtube page 3. If the product is purchased from RadioLink AliExpress Global or Amazon U.S , you can contact after- sales service directly.
-
Page 3: Table Of Contents
1.3 Compatible Receivers : R8EF and R8FM ......................3 1.4 Transmitter Calibration............................5 Part 2 Firmware Upgrade..............................6 2.1 Firmware Introduction............................6 2.2 Upgrade Steps..............................6 PART 3 T8FB Parameters Setup via Android Smart-phone APP................8 3.1 Configuration................................ 8 3.2 APP Installation..............................8 3.3 Connection Steps..............................8 3.4 The Functions Introduction..........................9 3.4.1 Setting Buttons Introduction........................ -
Page 4: Part 1 Introduction Of T8Fb System
LiPo battery. Defaulted low battery alarm voltage can automatically match 2S and 3S LiPo battery or 4pcs AA batteries, can setting in the T8FB configure software. 3S LiPo battery: default low voltage alarm to 11.0V automatically after detection, you can setup low battery voltage alarm from 10.0V to 12.5V. -
Page 5: Guidelines To Mount The Servos, Receiver And Battery
If you accidentally get moisture or fuel inside the receiver,you may experience intermittent operation or a crash. If in doubt, please contact Radiolink after-sales or distributors for service. •... -
Page 6: Compatible Receivers : R8Ef And R8Fm
In addition, periodically check the wire during daily maintenance. 1.3 Compatible Receivers : R8EF and R8FM Radiolink T8FB is sells with 2.4G 8 channels receiver R8EF. R8EF is support S-BUS , PPM and PWM signal working at the same time. Specification: 1) Channels: 8 channels 2) Working voltage: 4.8-10V... - Page 7 RED LED is on, signal output is PWM. When both RED and BLUE LEDs are on. Signal output is SBUS&PPM. MINI Receiver R8FM T8FB is also compatible with 2.4G 8 channels supper mini receiver R8FM, which support S-BUS and PPM signal working at the same time, supper mini size, is designed for racing drone.
-
Page 8: Transmitter Calibration
Press rudder trimmer left and turn on transmitter at the same time, When the transmitter is power-off, toggle both sticks at the central point. Then press the rudder trimmer button left and the power button simultaneously,red and green LED will start flashing and the T8FB is ready to be calibrated.. -
Page 9: Part 2 Firmware Upgrade
USB data backup copy function of T8FB helps save and copy parameter settings easily. 2.1 Firmware Introduction The latest firmware is T8FB_FHSS_V201_a77b_20170609_33bit. We will upgrade firmware according to T8FB users, new firmware will not upgrade in this manual, you can download it from our website: www.radiolink.com 2.2 Upgrade Steps... - Page 10 RadioLink Electronic Ltd www.radiolink.com (5) Choose “APROM” and then choose the firmware T8FB_FHSS_V201_a77b_20170609_33bit (6) Click “Start”, the progress bar will turn to green, upgrade successful if remind “PASS”.
-
Page 11: Part 3 T8Fb Parameters Setup Via Android Smart-Phone App
3.1 Configuration 1) One USB cable for Android smart-phone The smaller port connect to T8FB USB port and the other bigger port connect to OTG data cable. 2) One OTG cable for Android smart-phone The smaller port connect to smart-phone USB port 3) Android smart-phone system requires to upgrade to version 4.0 or above. -
Page 12: The Functions Introduction
When the APP is installed and cables between T8FB and android phone are connected correctly, a notice will pop out to ask if ok to open the app. Click yes then the APP interface will pop out and displayed as below. -
Page 13: Setting Buttons Introduction
DISCONNECT then CONNECT again. READ: Click READ, the APP will start reading the data in T8FB, the process won’t complete until 4 D sounds are heard. Every time reopen the APP, the data displayed are default. If any parameter is changed, it can’t be displayed until clicking READ. - Page 14 RadioLink Electronic Ltd www.radiolink.com 2)”BASIC”: There are six parameters to setup including ”REV”“SUB”“EPA-L”“EPA-R”“F/S”“DELAY” REV: Defines the relationship between the transmitter controls and the receiver output for channels with options of NORM and REV. Make sure to check all servos move to the correct direction as wish under control.
- Page 15 RadioLink Electronic Ltd www.radiolink.com values as small as possible. In order to restrict the servo travel range, the recommended procedure is as follows: • Measure and record the desired surface position; • Zero out the SUB-TRIM ; • Mount servo arms and linkages so that the control surface’s neutral is as correct as possible;...
- Page 16 CH5/6/7/8 Auxilary channels Ch5 to Ch8 can be personalized to different switches TX Alarm When the transmitter voltage is lower than the value set, T8FB will make D sound to warn. STK-MODE by default 1 is throttle at right while 2 is throttle at left. 3 is throttle at right for toys while 4 is throttle at left for toys.
-
Page 17: Faq
3.5 FAQ What is the order of the connections for APP--USB--T8FB ? The best order is: Turn on T8FB -- connect USB cable-- connect APP. When you connect the APP, the phone will prompt that open APP. Why the prompt box always be showed ? - Page 18 What are the correct steps for the “READ”? In general, please click the “READ” first after connect T8FB to APP to make sure the data of APP is the default data or you setup last time.
-
Page 19: Part 4 T8Fb Parameters Setup Via Computer
Part 4 T8FB Parameters Setup via Computer 4.1 Software Installation and Connect Connect the computer and the T8FB with an android USB data cable (No OTG cable needed) Open the parameter setup software in the downloaded file，then power on T8FB... -
Page 20: Software Interface Introduction
PARAMETERS at bottom right will be displayed 4.2 Software Interface Introduction READ: T8FB data will be read and displayed on computer when click “READ”and two D sounds will be heard. LOAD: The data file in TXT format saved will be loaded in the software. -
Page 21: Basic Menu
When parameters need to be modified, click READ first to input the original data into the software, then modify as wish and click UPDATE to output the modified data to T8FB. When parameters SAVE as TXT file need to be input, click LOAD first to input the saved data into the ... -
Page 22: Advacne Menu
RadioLink Electronic Ltd www.radiolink.com AUX-CH: Defines the relationship between the transmitter controls and the receiver output for channels 5-8. Refer to 3.4.2 for more details . DELAY: Adjust the ratio between the position of servos and the actual operation. Refer to 3.4.2-DELAY (P12) for more details .
