RadioLink T8FB User Manual

8-channel remote controller app parameter setting via bluetooth connection compatible with fixed-wings/gliders/multirotors/cars/boats/robots
Hide thumbs Also See for T8FB:
Table of Contents

Advertisement

Quick Links

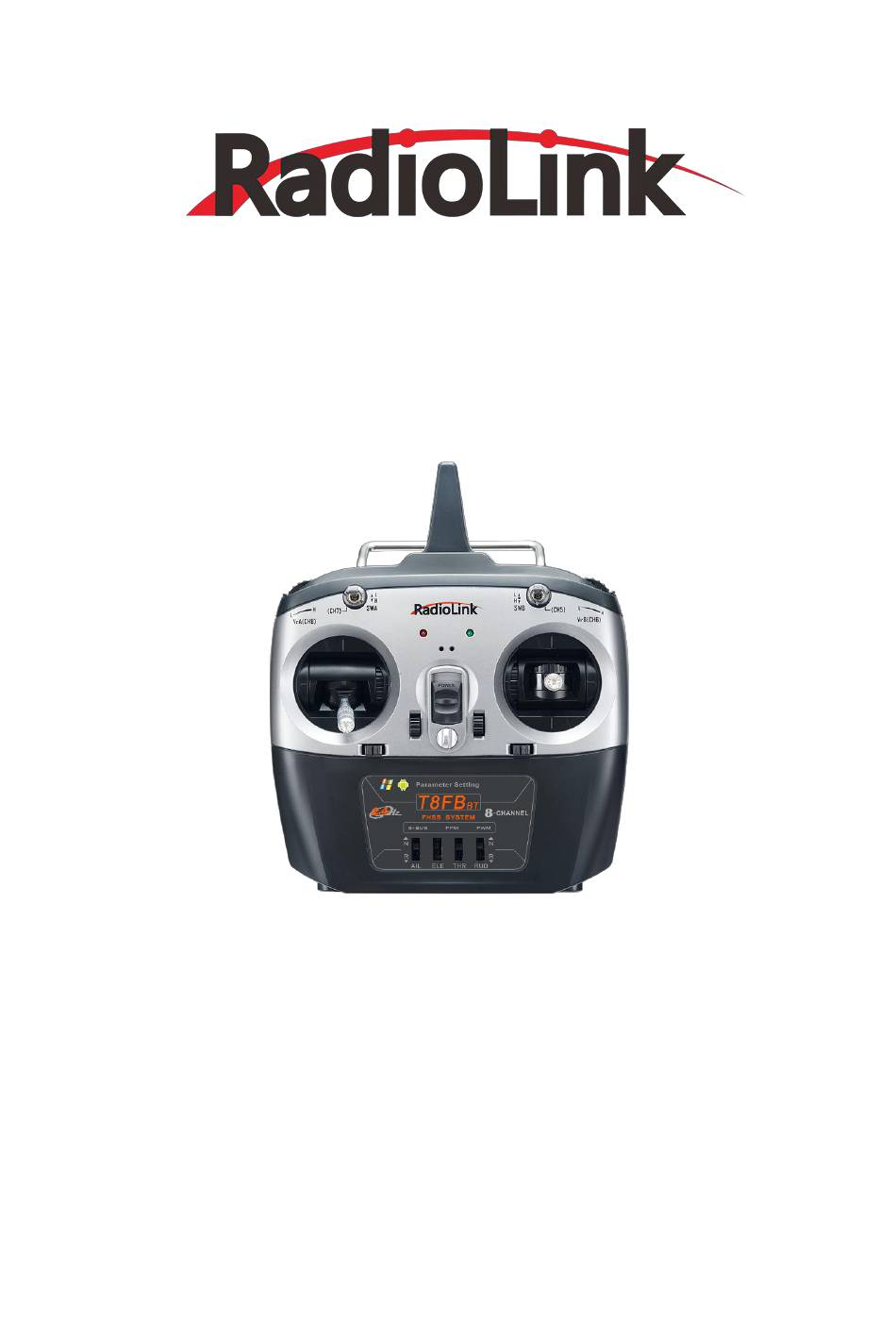

T8FB
（FHSS）
User Manual
8-Channel Remote Controller
App Parameter Setting via Bluetooth Connection
Compatible with Fixed-wings/Gliders/Multirotors/Cars/Boats/Robots
CE FCC RoHS
* Please be kindly noted that this manual will be updated regularly and please visit RadioLink official website to
download the latest version：www.radiolink.com

Advertisement

Table of Contents
loading

Related Manuals for RadioLink T8FB

Summary of Contents for RadioLink T8FB

  • Page 1 User Manual 8-Channel Remote Controller App Parameter Setting via Bluetooth Connection Compatible with Fixed-wings/Gliders/Multirotors/Cars/Boats/Robots CE FCC RoHS * Please be kindly noted that this manual will be updated regularly and please visit RadioLink official website to download the latest version：www.radiolink.com...
  • Page 2 Radiolink Electronic Ltd www.radiolink.com Thank you for purchasing RadioLink 8-channel remote controller T8FB. To fully enjoy the benefits of this product and ensure safety, please read the manual carefully and set up the device as instructed steps. If any problems found during the operation process, either way listed below can be used as online technical support.

  • Page 3: Table Of Contents

    3.3.4.1 PROG.MIX ............................11 3.3.4.2 TH/CURE.............................. 11 3.3.4.3 DR/CURE............................. 11 3.3.4.4 RESET..............................12 Chapter 4 T8FB Parameters Setup via Computer....................12 4.1 Software Installation and Connection........................12 4.2 Parameters Setup Menu............................13 4.2.1 BASIC Menu..............................15 4.2.2 ADVANCE Menu ............................15...

  • Page 4: Chapter 1 Introduction

    Chapter 1 Introduction As image of T8FB (Mode 2) shown below, there are one two-way switch, one three-way switch, two VR switches, four trimmer buttons and two joysticks. The Mode can be personalized to 1(throttle on right hand) or 2 (throttle on left hand) or both sticks return to center points with the small accessory packed in the bag.

  • Page 5: Receivers

    T8FB Basic Setup 1.1 Receivers The standard receiver packed with T8FB is R8EF, 8-channel receiver with PWM and SBUS/PPM signal output supported. Signal Working Mode (1) PWM Working Mode: Receiver indicator is RED with all 8 channels output PWM signal.

  • Page 6: Note Of Receiver Usage

    Press rudder trimmer left and turn on transmitter at the same time. When the transmitter is power-off, toggle both sticks at the central point. Then press the rudder trimmer button left and the power button simultaneously, red and green LED will start flashing and the T8FB is ready to be calibrated..

  • Page 7: Chapter 2 Firmware Upgrade

    * The factory default firmware of T8FB is the latest. And firmware will be regularly updated and available on RadioLink website. Click “START” and the process bar becomes GREEN. When the green bar goes to the end and shows...

  • Page 8: Chapter 3 Parameters Setup Via Mobile

    3.2 APP Connection Connection of both Android APP and Apple APP to T8FB are the same as below: When the installation of parameter setup APP is complete, press the power button to turn on T8FB. Click to enter the APP, a message will pop out to ask for permission to turn on the Bluetooth...

  • Page 9: Parameters Setup Menu

    APP. If fails, press DISCONNECT and CONNECT again. READ: Click READ, two short D sounds will be heard and the APP starts reading the data in T8FB. The current data of the T8FB won’t display on the APP until clicking READ.

  • Page 10: Servo Menu

    Model voltage(EXT, works only with RadioLink receivers of telemetry function R7FG or R8F). Parameters Setting Steps and Multiple Model Data Storage When parameters need to be modified, click READ first to input the original data from T8FB into the APP, ...
  • Page 11 The default value is 96 with the range from 0 to 120. F/S: (Fail-safe) sets responsive action of model in case of signal loss or low T8FB voltage. Each channel can be set independently. The F/S (Fail Safe) function moves each servo to a predetermined position.

  • Page 12: Advanced Menu

    T8FB of each attitude is corresponding to the values of flight controller PIXHAWK/MINI PIX/APM/TURBO PIX. That is, when the above flight controllers are used with T8FB, attitude can be selected on the Mission Planner and no need to setup specific parameter.

  • Page 13: System Menu

    TX-ALARM The default low voltage value is automatically set according to the battery used(2S-7.3V/3S-11.0V) and also can be personalized as well. When the transmitter voltage is lower than the value set, T8FB will make D sound to warn. STK-MODE(SYSTEM) It’s always the default mode of the T8FB with data READ by the APP.

  • Page 14: Prog.mix

    No switch is needed. THROTTLE CUT Setup This function is achievable with T8FB programmable mix controls setting. In SYSTEM Menu, turn on the Mix Control, set Master as CH1 while Slave as CH8 with the OFFS value as -100.

  • Page 15: Reset

    Radiolink Electronic Ltd www.radiolink.com 3.3.4.4 RESET This function is to restore the factory setting when necessary. When press this button, T8FB will make three slow D sounds, meaning default setting is set. Chapter 4 T8FB Parameters Setup via Computer 4.1 Software Installation and Connection Connect the computer to the T8FB with an android USB data cable Open the parameter setup software in the downloaded file，then power on T8FB...

  • Page 16: Parameters Setup Menu

    4.2 Parameters Setup Menu READ: T8FB data will be read and displayed on computer when click “READ”. The two LEDs at the rightmost will flash once at the same time with two D sounds . LOAD: The data file in TXT format saved will be loaded in the software.
  • Page 17 TX-ALARM: The default low voltage value is automatically set according to the battery used(2S-7.3V/3S-11.0V) and also can be personalized as well. When the transmitter voltage is lower than the value set, T8FB will make D sound to warn.

  • Page 18: Advance Menu

    Compatible transmitters: T8FB/T8S/  depending on local regulations) RC6GS V2/RC4GS V2 Transmitter Power: <100mW(20dBM)  Section Precision: 4096, 0.5us/section  Compatible receivers: R8EF(Standard),R8SM, R8FM,  R8F,R7FG, R6FG, R6F, R4FGM,R4F Thank you again for choosing RadioLink product.
