throttle at left for toys.
VERSION(Under STK-MODE)
The numbers mean current firmware versions which can be upgraded. The detailed steps of firmware upgrade
please refer to Chapter 2.
Note The other version on the right (under RESET button) is the APP version.
PROG. MIX1/PROG. MIX2
Programmable mix controls is to
1. Diversify attitude changes of aircraft (eg. Rolling to realize when rudder are commanded);
2. Control a certain axis with two or more servos(eg. 2 rudder servos);
3. Correct special movement automatically (eg. Lower FLAP and ELEVATOR servos at the same time);
4. Control the second channel to respond to the movement of the first channel(eg. Increase smoke oil to
respond to high speed, but only when the smoke switch is activated).;
5. Turn off the main control under certain circumstances (eg. For dual-engine aircraft, turn off a motor or speed
up/down one motor to assist rudder to turn)
PROG. MIX1: the mix control of AILERON and ELEVATOR servos is to assist turning.
PROG. MIX2: the mix control of ELEVATOR and FLAP servos is to loop in small diameter.
Adjustability: Channel 1 to 8 can be personalized to mix.
MAS: Master channel. Other channels need to cooperate with movements of the master channels.
SLA: Slave channel. Many mix controls are controlled by one master channel.
Eg. Rudder-Aileron mix control with Master as rudder while Slave as aileron and OFFS as 0 and UP as 25% to
correct rolling. No switch is needed.
THROTTLE CUT Setup
This function is achievable with T8S programmable mix controls setting.
In SYSTEM Menu, turn on the Mix Control, set Master as CH1 while Slave as CH8 with the OFFS value as
-100. Then in ADVANCED Menu, turn on the D/R MIX function, set CH as CH3 and the DOWN value as 0.
Then toggle the CH8 Toggle-Switch to the right most and the setting is complete.
RESET
This function is to restore the factory setting when necessary.

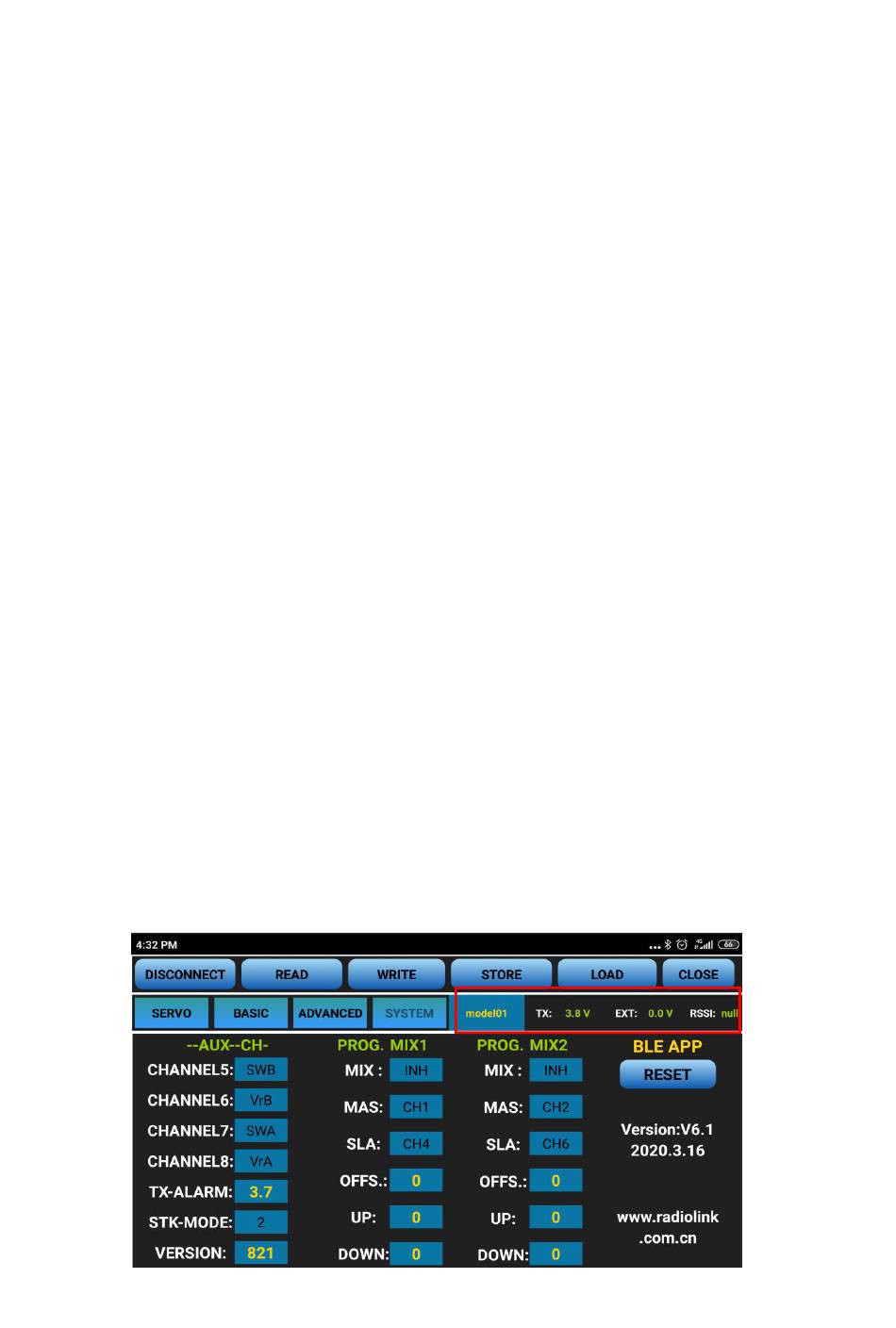

Besides the above functions, there are four more parameters added in the new version APP, next to SYSTEM
menu: Model data selected/Transmitter voltage/Model voltage/RSSI. But the telemetry of model voltage
and RSSI can only be realized by the RadioLink receiver R7FG and R8F.
