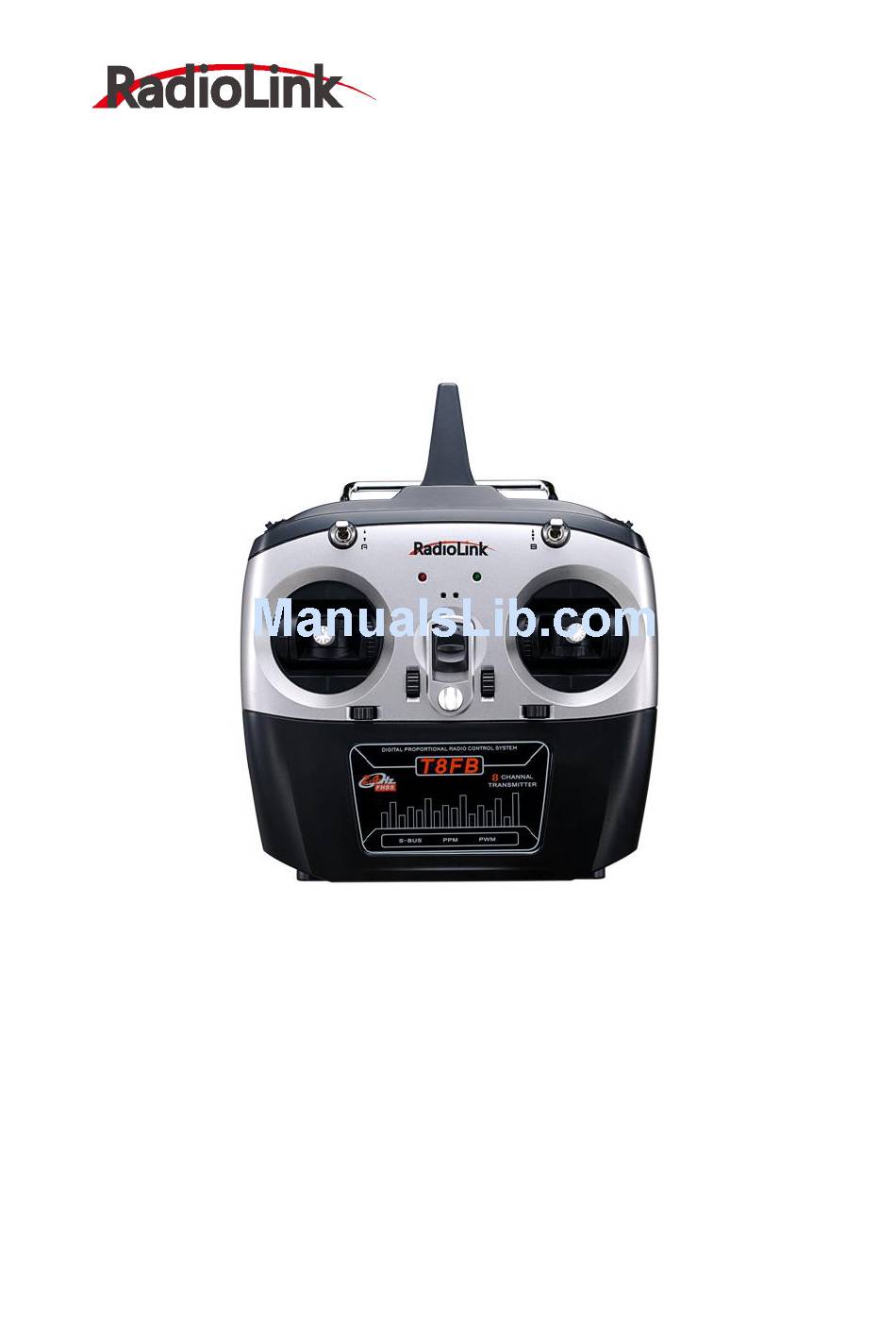

  • Page 1 RADIOLINK T8FB (FHSS) INSTRUCTION MANUAL 8CH remote control system RADIOLINK ELETRONIC LIMITED Technical updates and additional programming examples available at: www. radiolink.com...
  • Page 2 INTRODUCTION Thank you for purchasing Radiolink 2.4 GHz 8 channels remote control system -- T8FB . It can operate helicopter, fixed-wing, glider, aircraft models. Communication system adopts FHSS. Parameter setting designed applicable to both beginners and skilled person. In order to better use remote control equipment and ensure flight safety, please read the instructions carefully.
  • Page 3 Note:About flying While you are getting ready to fly, if you place your transmitter on the ground ,be sure that the wind won’t tip it over. If it is knocked over, the throttle stick may be accidentally moved, causing the engine to speed up. Also, damage to your transmitter may occur. Other than 2.4GHz system: Before operating, be sure to extend the transmitter antenna to its full length, collapsed antenna will reduce your flying range and cause a loss of control.It is a good idea to avoid pointing the transmitter antenna directly at the model, since the signal is...

  • Page 4: Table Of Contents

    CONTENTS Part 1. INTRODUCTION OF T8FB SYSTEM............4 1.1 Transmitter Panel Shows..................4 1.2 T8FB remote control system................5 1.2.1 Transmitter....................5 1.2.2 Receiver:R8EH..................... 5 1.2.3 Bind....................... 5 1.2.4 S-BUS, PPM and PPM signal change............6 1.2.5 Transmitter calibration ................. 6 1.3 Guidelines to mount the servos, receiver and battery...........

  • Page 5: Part 1. Introduction Of T8Fb System

    Part 1 INTRODUCTION OF T8FB SYSTEM 1.1 Transmitter Panel Shows:...

  • Page 6: T8Fb Remote Control System

    2) Defaulted MODE2, SwB control CH5, VrB control CH6, SwA control CH7, VrA control CH8. 3) Defaulted low battery alarm voltage is 11.1V, can setting in the T8FB configure software . 1.2.2 Receiver: R8EH R8EH: 8 channel receiver support S-BUS, PPM and PWM signal at the same time.

  • Page 7: S-Bus, Ppm And Ppm Signal Change

    Once the link is made, the ID code is stored in the receiver and no further linking is necessary unless the receiver is to be used with another transmitter. When you purchase another R8EH, this procedure is necessary; otherwise the receiver will not work. 1) Place the transmitter and the receiver close to each other within 1 meter.

  • Page 8: Guidelines To Mount The Servos, Receiver And Battery

    If you accidentally get moisture or fuel inside the receiver,you may experience intermittent operation or a crash. If in doubt, please contact Radiolink after-sales or distributors for service. • Always mount the servos with the supplied rubber grommets. Don’t over tighten the screws.
  • Page 9 of the switch in both directions. •When install the switch harness to the helicopter, please use the switch cover. Generally sandwich the frame between the switch and switch cover and securely tighten the screws. Different models might require different installations. If so, please follow the model’s instruction manual.

  • Page 10: Part 2 Parameter Configuration

    2.1 Preparation 1. Install the T8FB upgrade drive files first. 2. Connection: One end of T8FB USB cable connect to computer and the other end connect to the upgrade port which at the back of T8FB. T8FB upgrade connector connection: TXD connect to white wire.
  • Page 11 3. Open T8FB parameter configuration software.(P2) （P2） 4. Choose Port Number(T8FB connection COM will automatic identified when connect to computer), setting baud rate: 115200, 8-1-None(8 data bits,1 stop bit,no parity check),click “CONNECT”.(P3) （P3）...

  • Page 12: Software Description

    Load configured TXT files. “UPDATE”: Write down the new data you want and then click “UPDATE” to change the defaulted parameter. T8FB will remember the new data you have write down(red and green LED will slowly flashing when updating). “SAVE”: Save current setting to TXT files.
  • Page 13 AILEVATOR, etc. This is so that each individual servo can be carefully fine-turn to avoid binding and other conflicts. To adjust the total travel of a function such as FLAPERON, make the adjustments in that function's controls. The higher the END POINT setting, the better position accuracy and the more servo power available at nearly any position (except if using digital servos).
