RadioLink T8S Instruction Manual

8-channel remote controller compatible with fixed-wings/gliders/multirotors/cars/boats
Hide thumbs Also See for T8S:
Table of Contents

Advertisement

Quick Links

Radiolink Electronic Ltd
www.radiolink.com
T8S
（FHSS）
8-Channel Remote Controller
Instruction Manual
Compatible with Fixed-wings/Gliders/Multirotors/Cars/Boats
* Please be kindly noted that this manual will be updated regularly and please visit
Radiolink official website to download the latest version.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T8S and is the answer not in the manual?

Questions and answers

Related Manuals for RadioLink T8S

Summary of Contents for RadioLink T8S

  • Page 1 Radiolink Electronic Ltd www.radiolink.com （FHSS） 8-Channel Remote Controller Instruction Manual Compatible with Fixed-wings/Gliders/Multirotors/Cars/Boats * Please be kindly noted that this manual will be updated regularly and please visit Radiolink official website to download the latest version.
  • Page 2 Radiolink Electronic Ltd www.radiolink.com Thanks for purchasing Radiolink 8-channel remote controller T8S. To fully enjoy the benefits of this product and ensure safety, please read the introduction carefully and set up the device as described below: If any problems found during the operation process, please kindly refer to the manual first. Then pilots could contact our distributors to find solution or follow our Facebook homepage https://www.facebook.com/Radiolink-1455452961436694/...

  • Page 3: Table Of Contents

    3.3.2 BASIC Menu ..............................11 3.3.3 ADVANCED Menu ............................12 3.3.4 SYSTEM Menu ............................... 13 Chapter 4 T8S Parameters Setup via Computer ....................14 4.1 Software Installation and Connection ........................ 14 4.2 Parameters Setup Menu ............................15 4.2.1 BASIC Menu ..............................15 4.2.2 ADVANCE Menu ............................

  • Page 4: Chapter 1 Introduction Of T8S

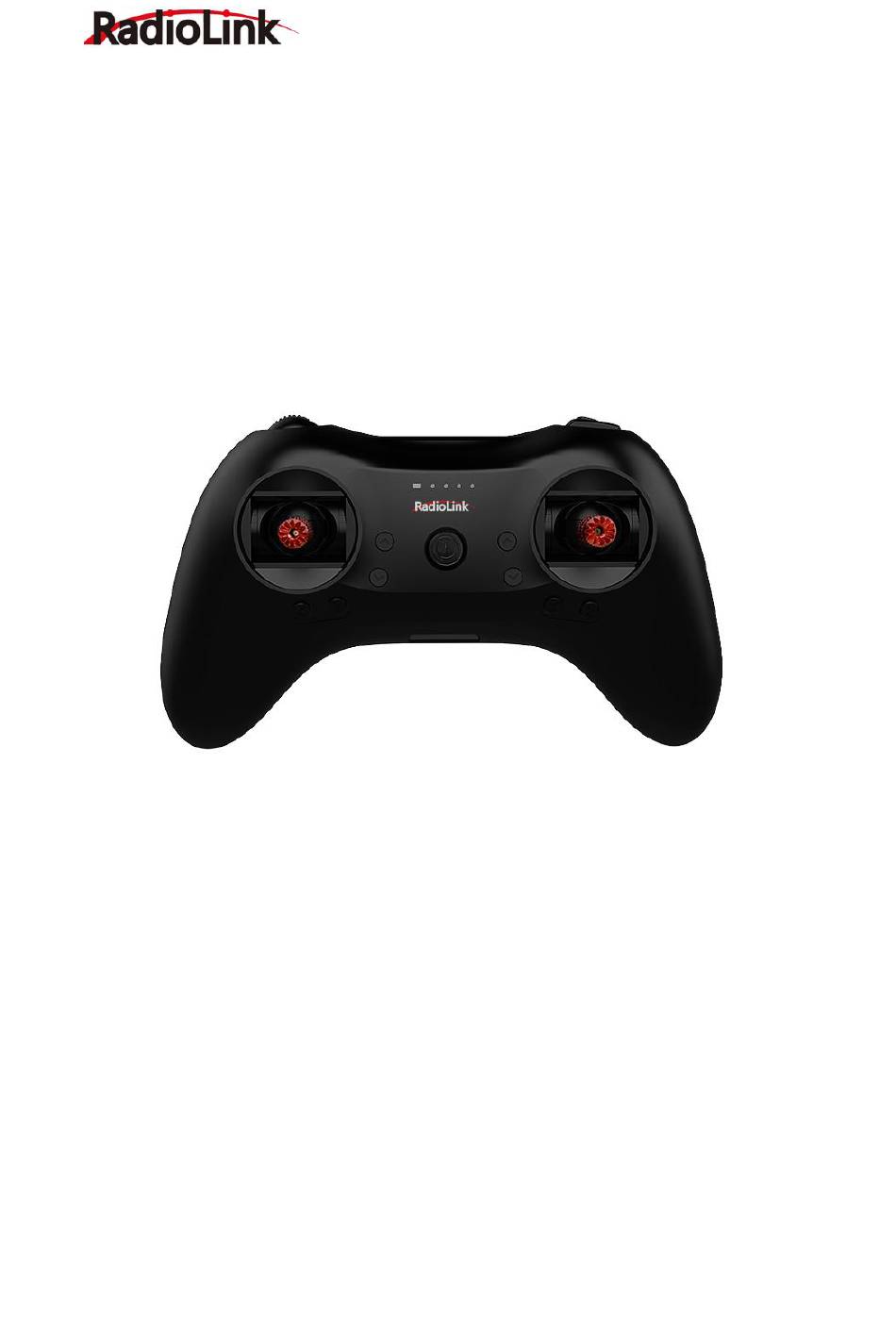

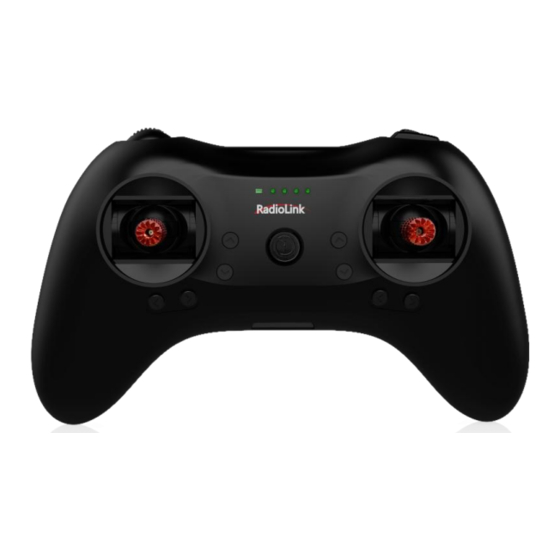

    Chapter 1 Introduction of T8S As image of T8S (Mode 2) shown below, there are two 3-way switches, one toggle-switch, one push-button, eight trimmer buttons and two joysticks. The Mode can be personalized to 1(throttle on right hand) or 2 (throttle on left hand) or both sticks return to center points with the small accessory packed in the bag.

  • Page 5: Installation Of Remote Control

    1.1.2 T8S Battery Charging The built-in battery of T8S is 1S lithium. When the voltage becomes low, the green indicator will flash with a DD warning tone. Make sure to charge the battery in time to avoid the possible damage by over discharge.
  • Page 6 Radiolink Electronic Ltd www.radiolink.com 6) 2048 section precision, 0.5us per section, servo anti-shake rudder. 7) Distance: 2000m in the air (depending on the actual flight circumstances) Signal Working Mode (1) PWM Working Mode: Receiver indicator is RED with all 8 channels output PWM signal.

  • Page 7: Binding

    If a new R8EF or R8FM receiver is purchased, binding needs to be done before using. Binding steps of all transmitters and receivers from RadioLink are the same as follow: （1） Put the transmitter and the receiver together within 1 meter.

  • Page 8: T8S Calibration

    (with an arrow to left) and the power button simultaneously, the four green indicators will start flashing and the T8S is ready to be calibrated.。 Range Calibration: Toggle both sticks (Ch1-4) to the highest point/maximum and the lowest point/minimum.
  • Page 9 1. Driver Installation: Select the correct driver depending on the computer system. 2. Open the software to upgrade T8S firmware 3. Connect T8S with computer via a USB cable 4. Choose the correct port 5. Click CONNECT and press the power button once quickly within 1s...
  • Page 10 Radiolink Electronic Ltd www.radiolink.com 6. When “DISCONNECT” in red turns to “CONNECT” in green, it means it’ s connected with success. 7. Click “APROM” and choose the latest firmware T8FB&T8S_FHSS_V301_dc66_20180912_33bit.hex 8. Click “START” and the process bar becomes green. When the green bar goes to the end and shows...

  • Page 11: Chapter 3 Parameters Setup Via Mobile

    USB port is connected. Click confirm and enter APP interface. Note The smaller head of the USB cable connects with T8S while the bigger head connects with OTG cable. The smaller head of the OTG cable connects the mobile.

  • Page 12: Parameters Setup Menu

    There are four parameter setup menus: SERVO/BASIC/ADVANCED/SYSTEM If the mobile connects T8S successfully, the SERVO menu will be reached directly when open the APP. If not successfully, click “CONNECT” . If still fail, click” DISCONNECT” the reconnect OTG cable then click...

  • Page 13: Servo Menu

    READ. UPDATE: Click to update the changed data into the T8S and a D sound means update complete. If no D sound means fails to update. Click UPDATE each time parameter is modified.

  • Page 14: Basic Menu

    Radiolink Electronic Ltd www.radiolink.com 3.3.2 BASIC Menu There are six parameters to setup including ”REV”“SUB”“EPA-L”“EPA-R”“F/S”“DELAY” REV: Defines the relationship between the transmitter controls and the receiver output for channels with options of NORM and REV. Make sure to check all servos move to the correct direction as wish under control.

  • Page 15: Advanced Menu

    Radiolink Electronic Ltd www.radiolink.com F/S: Sets responsive action of model in case of signal loss or low Rx voltage(in percentage). Each channel can be set independently. • The NOR (normal) setting holds the servo in its last commanded position. • The F/S (Fail Safe) function moves each servo to a predetermined position.

  • Page 16: System Menu

    Radiolink Electronic Ltd www.radiolink.com Pilots can set 6 different modes (NORMAL, ATTI, GPS, HOVER, F/S and AUX) by adjusting the related rates. Every mode has different rates to get a unique signal. NORMAL mode preset 0%, ATTI 50%, GPS 100%, HOVER 25%, F/S 75% and AUX 50%. 0% means a output signal 1ms, and 100% means 2ms.

  • Page 17: Chapter 4 T8S Parameters Setup Via Computer

    CH5/6/7/8 Auxilary channels Ch5 to Ch8 can be personalized to different switches TX Alarm When the transmitter voltage is lower than the value set, T8S will make D sound to warn. STK-MODE By default, 1 is throttle at right while 2 is throttle at left. 3 is throttle at right for toys while 4 is throttle at left for toys.

  • Page 18: Parameters Setup Menu

    LOAD The data file in txt format saved will be loaded in the software UPDATE Modify the data as wish then click “UPDATE” to change the parameter in T8S. (red and green LED will flash slowly once).

  • Page 19: Advance Menu

    Radiolink Electronic Ltd www.radiolink.com REVERSE: Defines the relationship between the transmitter controls and the receiver output for channels with option of NORM and REV. Refer to 3.3.2 for more details . SUB-TRIM: Makes small changes or corrections to the neutral position of each servo. Refer to 3.3.2 for more details .

  • Page 20: Parameters Save In T8S

    2. Make sure the correct port is identified and click OPEN to connect 3. Modify the parameters as wish and click UPDATE. If updated successfully, T8S makes a B sound 4. Disconnect T8S from computer and repeat step 1 and 2 5.
  • Page 21 How to find “SAVE” file (/model/model01.text)  Find the folder Storageand model How to solve the problem that the APP flashback when you click “LOAD” button.  A: Open the permissions. Settings - Permissions - APPS - RadioLink T8FB- Accept.
