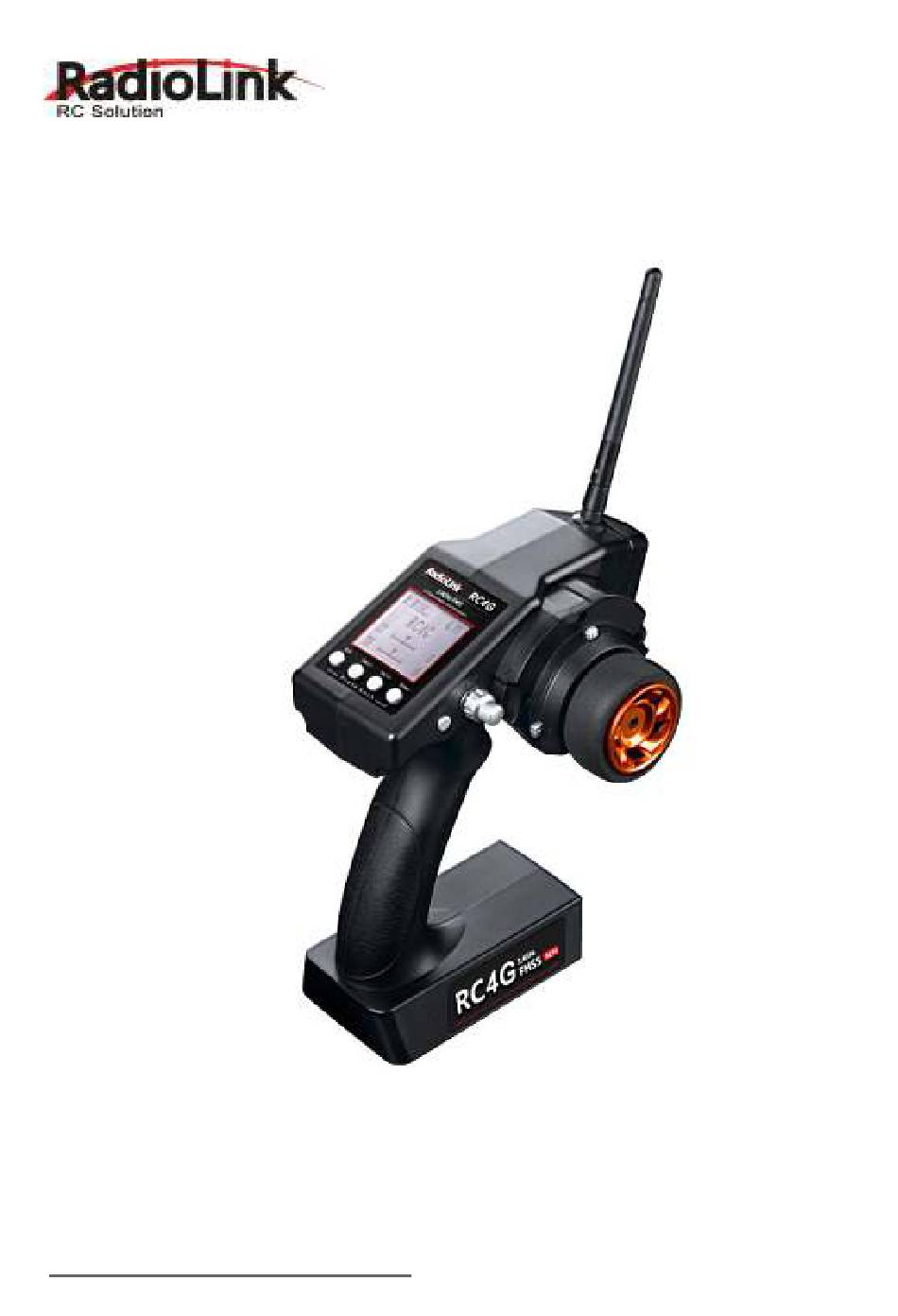

This illustration is for RC4G &  RC3S
RadioLink Electronics Co., Ltd
CE FCC ROHS
Http://www.radiolink.com.cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TrackStar D-Spec TS4G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RadioLink TrackStar D-Spec TS4G

  • Page 1 Digital 4-Channel Proportional RC System Instruction Manual This illustration is for RC4G &  RC3S RadioLink Electronics Co., Ltd CE FCC ROHS Http://www.radiolink.com.cn...
  • Page 2: Table Of Contents

    MENU 1. Introduction and service………………………………………………………….2 2. Safety guides………………………………………………………………..…. 2 3. Battery recharge notice……………………………………………………..….…3 4. Contents and specifications………………………………………………..…..….4 5. Receiver installation and binding…………………………………………………5 Usage method of receiver intergrated with gyro and settings........………………………… 7 Schem at i c  f or   connect or s  of   R4EH - H   and  R4EH - G 8.
  • Page 3: Introduction And Service

    Introduction and Service Thank you for choosing RadioLink RC system, if you are the first time to use this type of products, please read this statement carefully and strictly in accordance with the requirements of operation. You could refer to the Manual if you meet any problems during the operation .
  • Page 4: Battery Recharge Notice

    The sequence to shut down is that turn off the receiver power first, and then shut down the transmitter. If the above operations are reverse, it might lead to uncontrolled situation and cause accidents The transmitter needs to be powered by 4 AA alkaline 5# batteries or Ni-MH batteries.
  • Page 5: Contents And Specifications

    Contents and specifications Contents and Specifications: Contents: 1.Antenna 2.Binding key 3.Channel connection pin Specs: Size:51.5*24*15(mm) Channel number:4 channels Power standard: 4.6-10 Frequency:2.4GHz Weight:5g Contents: 1. Antenna 2. LCD 3. Menu key 4. Turning wheel 5. Function key A throttle 6. Function key B Direction 7.
  • Page 6: Receiver Installation And Binding

    Power standard:6VDC (1.5AA*4) RF power:less than 10dbm Power extending: JST port 2S~3S LiPo/LiFePo battery Modulation: FHSS Low voltage alert: Yes ( lower than 4.6V) Data resolution:2048 Frequency:2.4GHz RF range: 300meters on ground Failsafe: in 1 second receiver fail getting signal from TX, the throttle will be 0, servos keep the last status.
  • Page 7 was not damaged, large circuit occurred. 4. Do not cut off or bind the receiver antenna, and try the best to keep it far away from metal and carbon graphite material. 5. Receiver is made up from precise electronic components, it need to be protected from vibration by packaged with sponge or other shock absorption materials.
  • Page 8: Usage Method Of Receiver Intergrated With Gyro And Settings

    Code-matching method between transmitter and receiver: 1. Load the battery into transmitter, power on it. 2. Connect the power to the 2nd Channel pin of receiver. 3. Press the binding button on the receiver till LED starts twinkling. 4. LED stops the twinkle, bright light indicates a successful code-matching was completed.
  • Page 9: Display When Power Switch Turned On

    3.Gyro usage method in forward and backward direction: When gyro in working state, pull remote acceleraterto keep the car move forward for a distance, release the accelerator in the premise of not playing the direction key, turn around the car body, if the steering engine doesn't move You need...
  • Page 10 LCD Screen When you power on the transmitter, LCD screen shows battery voltage, R/C control system name, model name, steering trim,throttle trim ,the red light flashes two times Model Name can store the data for 10 models, model name will show on the LCD when The system you power on the transmitter.
  • Page 11: Language Select "Language

    Language Select "LANGUAGE" Both English and Chinese version menu are available for system, which is convenient for Chinese and English-speaking players to personalize function menus. 1. Access the function menu (By pressing “Exit” and “Enter” buttons simultaneously and holding them down for one second), the Language select function will be chosen. 2.
  • Page 12: End Point Adjuster "Epa

    End Point Adjuster "EPA" Use this when performing left and right steering angle adjustments, throttle high side/brake side operation amount adjustment, and channel 3 servo up side/down side operation amount adjustment during linkage. Correct the maximum steering angle and left and right steering angles when there is a difference in the turning radius due to the characteristics, etc.
  • Page 13: Steering Exp "Stexp

    button to select the desired setting item , press “Enter” key the initial value of your selected setting item will blink, then you can press “Dec(-)” or “Inc(+)” button to adjust the value of your selected setting item. (Note: In the interface of adjusting the value, return to the initial value "120" by pressing “Dec(-)”...
  • Page 14: Steering Speed "Stspd

    3. Press “Enter” button, the adjusted value of the rate stops blinking, now the value of the rate has been set. 4.Return to the initial screen by pressing“ Exit ” button twice. Note: the Vertical cursor shown in the figure moves in step with steering wheel operation.
  • Page 15: Throttle Exp "Thexp

    4. Press “Enter”button, the adjusted value of the selected setup item stops blinking, now the value of the selected setup item has been set. 5.Return to the initial screen by pressing “Exit” button twice. Throttle EXP "THEXP" This function makes the throttle high side and brake side direction servo operation quicker or milder.
  • Page 16 “FWD-VTR” function. 2. Press “Dec(-)” or “Inc(+)” button to select RATE for forward side adjustment that you want, when the “MODE” value is “INT” the VTR will not work, only the “MODE” value set to “ACT” the VTR function is available. From the graph you will clearly see the changes you have made on TG.P and RATE.
  • Page 17: Throttle Speed "Thspd

    side when you want to make the rise milder. (Note: In the interface of adjusting the value, return to the initial value"0" by pressing “Dec(-)” and “Inc(+)” buttons simultaneously for about 1 second.) (2). Press “Enter” button, the adjusted BRK value stops blinking, now the BRKvalue has been set.
  • Page 18 function. 2. Press “Enter” button to get into THSPD function interface. 3.If initial MODE setup item is SPEED1,{ if initial MODE setup item is SPEED 2 or OFF, you need to select SPEED 1 by pressing “Dec(-)” or “ Inc(+) ” button to select MODE setup item , then press “Enter”...
  • Page 19: A.b.s. Function "A.b.s

    3.If initial MODE setup item is SPEED 2,{ if initial MODE setup item is SPEED 1, you need to select SPEED 2 by pressing “Dec(-)” or “Inc(+)” button to select MODE setup item , then press “Enter” key, SPEED 1 or OFF will blink, press “Dec(-)” or “Inc(+)”...
  • Page 20 DLY:Delay amount CYC: Cycle speed TGP:Operation point DTY:Cycle duty ratio STM:Steering mixing -ABP : Amount of brake returnSets the rate at which the ser-vo returns versus trigger oper-ation for brake release. When set to 0%, the ABS function is not performed.
  • Page 21 Select the setting item "ABP" by pressing “Dec(-)” or “Inc(+)” button,then press “Enter” key and the initial value of “ABP” will blink. Use “Dec(-)” or “Inc(+)” button to adjust the return amount. (Note: In the interface of adjusting the value, return to the initial value "50" by pressing “Dec(-)”...
  • Page 22 3. (Pulse speed adjustment) Select setting item "CYC" by pressing “Dec(-)” or “Inc(+)” button, then press “Enter” key and the initial value of “CYC” will blink. Use “Dec(-)” or “Inc(+)” button to adjust the pulse speed (cycle). (Note: In the interface of adjusting the value, return to the initial value "5"by pressing “Dec(-)”...
  • Page 23 (Note: In the interface of adjusting the value, return to the initialvalue"0"by pressing “Dec(-)” and “Inc(+)” buttons simultaneously for about 1 second.) Press “Enter” button, the adjusted value stops blinking, now the value has been set. "-3":Brake application time becomes shortest. (Brakes lock with difculty) "+3":Brake application time becomes longest (Brakes lock easily) (Remark) For low grip, set at the - side and for high grip, set at the + side.
  • Page 24: Throttle Acceleration "Accel

    7. When ending setting, return to the initial screen by pressing “Exit” button twice. Throttle Acceleration "ACCEL" Function which adjusts the movement characteristic from the throttle neutral position The servo will jump to the input position at its maximum possible speed. Unlike exponential, which adjusts the whole throttle movement into a curve, throttle acceleration simply "jumps"...
  • Page 25: Idle-Up "Idlup

    Initial value: 0 2. (Brake side acceleration amount adjustment) Press “Dec(-)” or “Inc(+)” button to select “ BRAK ”, press“Enter”key to confirm and the initial value of “BRAK” will blink,then use“Dec(-)”or“Inc(+)”button adjust the acceleration amount. (Note: In the interface of adjusting the value, return to the initial value"0" by pressing “Dec(-)”...
  • Page 26: Subtrim "Subtr

    1.Enter the function menu and use “Dec(-)” or “Inc(+) ” button to access IDLUP function. 2.Press “Enter” button to get into IDLUP function interface. 3.Press “Enter” key, and the initial value of RATE will blink. Use “ Dec(-)” or “Inc(+)” button to adjust the value. (Note: In the interface of adjusting the value,return to the initial value "...
  • Page 27: Servo Reverse "Rev

    3. Use “Dec(-)” or “Inc(+)” button to select ST channel, press “Enter” key,and the initial value of ST will blink. Use “Dec(-)” or “Inc(+)” button to adjust the center. (Note: In the interface of adjusting the value, return to the initial value"0"bypressing “Dec(-)”...
  • Page 28: Steering Dual Rate/Throttle Dual Rate "D/R

    Dual rate The steering left and right servo travels are adjusted simultaneously.When you want to increase the servo travel, adjust the + side.When you want to decrease the servo travel, adjust the – side. Setup Item Steering D/R RATE Throttle D/R RATE Steering D/R rate (RATE) 0~100%...
  • Page 29: Atl Function "Atl

    Brake side adjustment This function decreases the set value when the braking effect is strongand increases the set value when the braking effect is weak. Setup Item RATE:Brake amount Brake amount (RATE) 0~100% Initial value: 100% 1.Enter the function menu and use “Dec(-)”...
  • Page 30 MXMD:Mix mode Enter the function menu and use “ Dec(-)” or “Inc(+)” button to access PMIX function, then press “Enter” button to get into PMIX function interface. 1.(Master channel) Channel selection (MST) ST, TH, CH3 Initial value: ST Select setup item"MST" by pressing “Dec(-)” or “Inc(+)” button, press “ Enter ” button, the initial master channel will blink.
  • Page 31 “Dec(-)” and “Inc(+)” buttons simultaneously for about 1 second.) Press “Enter” key, the adjusted value stops blinking,the selected mixing amount has been adjusted. 4.(Right, brake or down side mixing amount adjustment) Mixing amount -100~0~+100 Select the setting item "RGHT", "BRAK", or "DOWN"(These setup items are different depend on the master channel.ST:"RGHT ";...
  • Page 32: Channel 3 Position "Aux

    The channel 3 and channel 4 servo position can be set from the transmitter.When CH3is assignedto the 3rd channel key,this setting is linked to the key.When CH3 and CH4 is not assigned to the 3 channel key, it can be set with this screen. You can also set the CH3 and CH4 as VR at the same time, or SW.
  • Page 33: Low Voltage Alarm

    3.After accomplish ment of naming,all characters of current name will stop blinking, the new namewill be stored automatically. 4.When ending setting,return to the initial screenby pressing“Exit” button twice.(the new setting model name will appear on the initial screen) Low battery voltage alarm depands battery, The transmitter’s low voltage alarm...
  • Page 34: Fai L   Saf E

    4.Press the button key Enter, the value stops flashing, the setting is finished now. 5."Mode"and "Rate" can also be set by the same step. 6.Press button key Exit to be back to initial screen. Remind: the above mentioned function GYRO SENSITIVITY is for RC4G only and cannot use for RC3S Fai...
  • Page 35: Reset Function "Reset

    Reset function "RESET" REST- Data reset function: All the data for any model memory can be reset to original factory defaults.Often this function is done to get a “fresh start” and clear the memory before inputting new model settings. 1.Enter the function menu and use “Dec(-)”...
