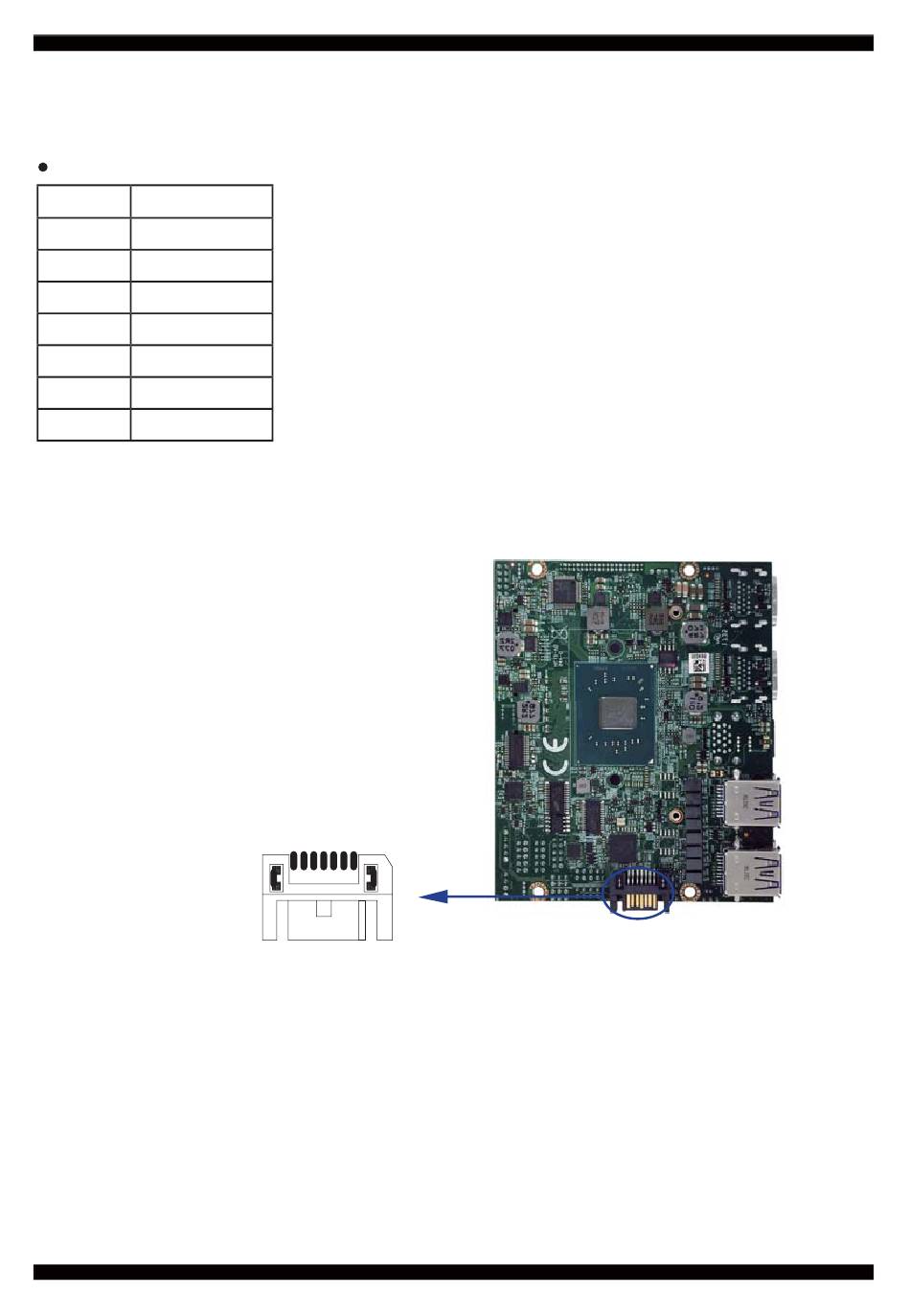

3-15 SATA Interface
SATA1: SATA Port 1x7pin connector
PIN NO. Description
1
GND
2
TX+
3
TX-
4
GND
5
RX-
6
RX+
7
GND
Note:
1. SATA1 support SATA 2.0 spec update 3Gb/sec.
2. CPO1 provide SATA HDD power +12V, GND, +5V
SATA1
57
