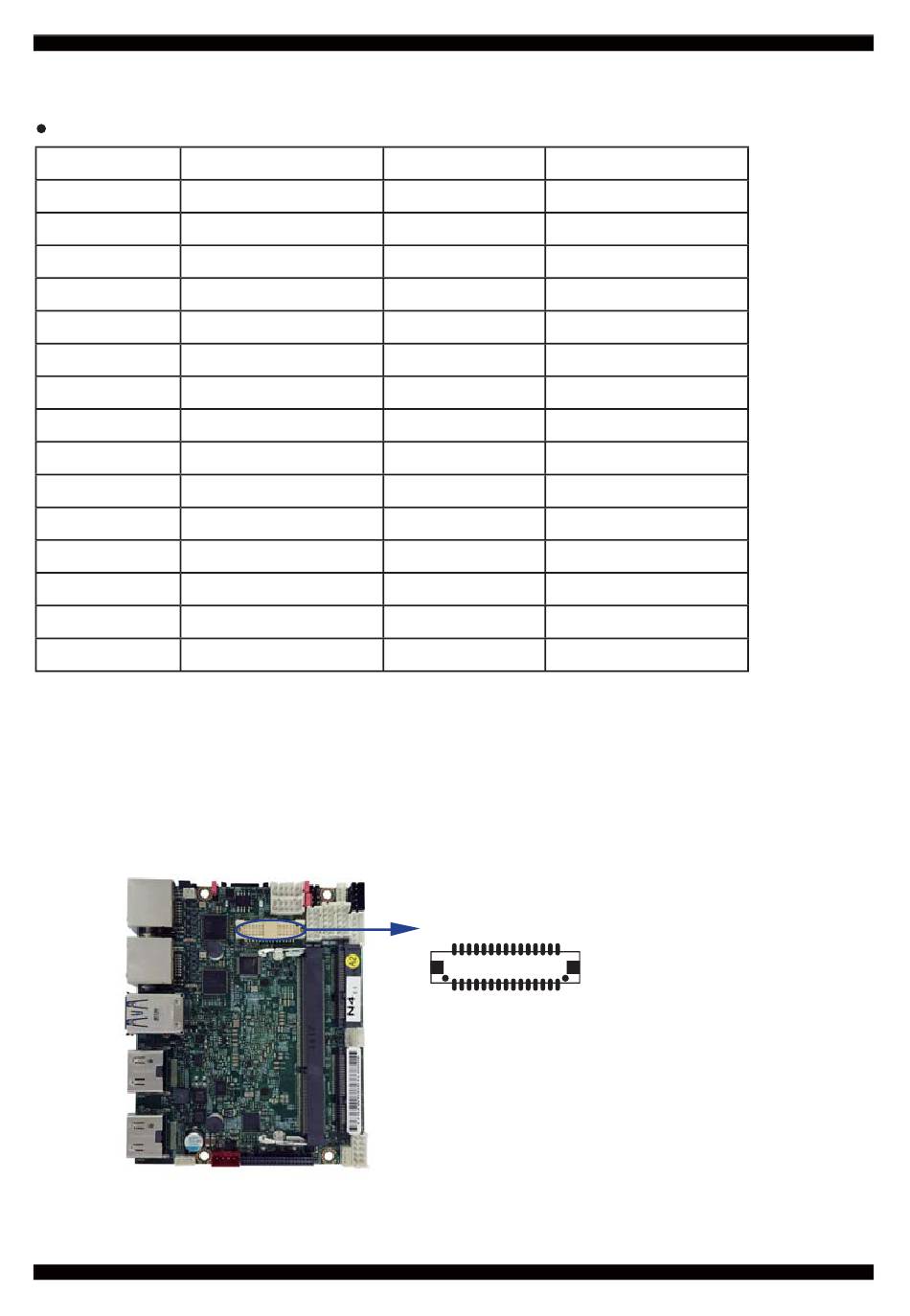

LVDS1: LVDS interface (2x15 pin 1.25mm wafer)
PIN NO. DESCRIPTION
1 PWM dimming
3 +LCD(5V or 3.3V)
5 Channel-1-DATA3+
7 Channel-1-DATA3-
9 Channel-0-DATA2+
11 Channel-0-DATA2-
13 GND
15 Channel-0-DATA1+
17 Channel-0-DATA1-
19 GND
21 +LCD(5V or 3.3V)
23 Channel-1-DATA2+
25 Channel-1-DATA2-
27 Channel-1-DATA1+
29 Channel-1-DATA1-
Note:
1. LVDS interface support 18 / 24bits two channel.
2. JVL1: LVDS panel +5V / +3.3V (default) Voltage select.
3. LVDS1 PIN 1 for panel backlight dimming control.
4. Pin 1 back light dimming control. Provided 200Hz / 275Hz / 380 Hz / 20KHz / 25KHz / 100Hz
and adjust PWM duty cycle by software program.
PIN NO. DESCRIPTION
2 +5V
4 +LCD(5V or 3.3V)
6 Channel-0-DATA3+
8 Channel-0-DATA3-
10 Channel-0-CLK+
12 Channel-0-CLK-
14 GND
16 Channel-0-DATA0+
18 Channel-0-DATA0-
20 GND
22 +LCD(5V or 3.3V)
24 Channel-1-CLK+
26 Channel-1-CLK-
28 Channel-1-DATA0+
30 Channel-1-DATA0-
LVDS1
pin1
54
