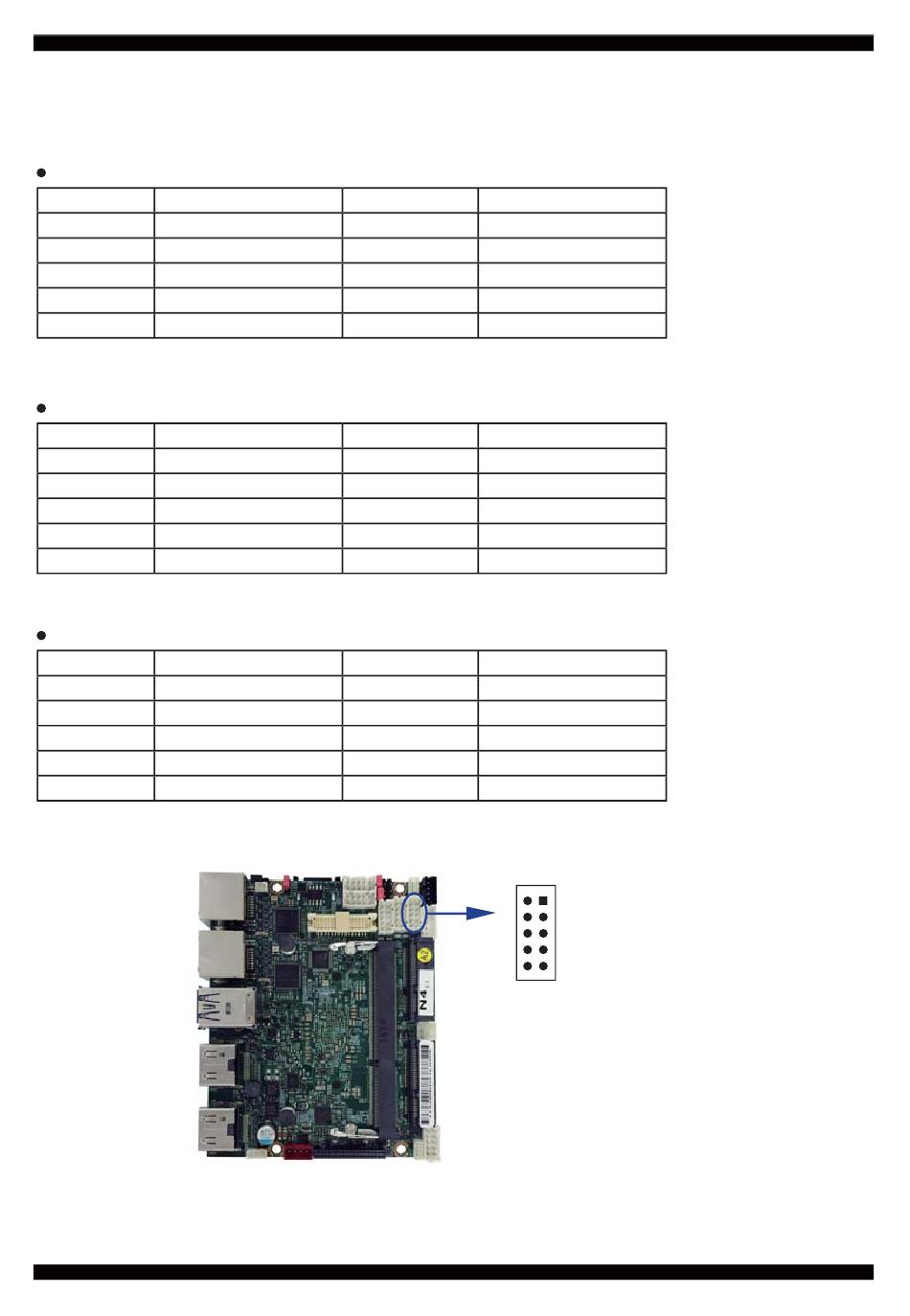

3-14 CT1: Touch screen (2x5 pin 2.0mm wafer) USB interface

For 8-wire type pin defi ne
PIN NO. DESCRIPTION
1 Bottom
3 Top Sense
5 Right
7 Left
9 GND
Note: 1. For eight wire type cable Pin 3 and Pin4 need short.
For 4-wire type pin defi ne
PIN NO. DESCRIPTION
1 Bottom
3 N/A
5 Right
7 Left
9 GND
Note: 1. For four wire type cable Pin 3 and Pin4 need short.
For 5-wire type pin defi ne
PIN NO. DESCRIPTION
1 UR(H)
3 Sense
5 LR(X)
7 LL(L)
9 GND
PIN NO. DESCRIPTION
2 Bottom Sense
4 Top
6 Right Sense
8 Left Sense
10 NC
PIN NO. DESCRIPTION
2 N/A
4 Top
6 N/A
8 N/A
10 NC
PIN NO. DESCRIPTION
2 N/A
4 UL(Y)
6 N/A
8 N/A
10 NC
CT1
10
56
pin1
