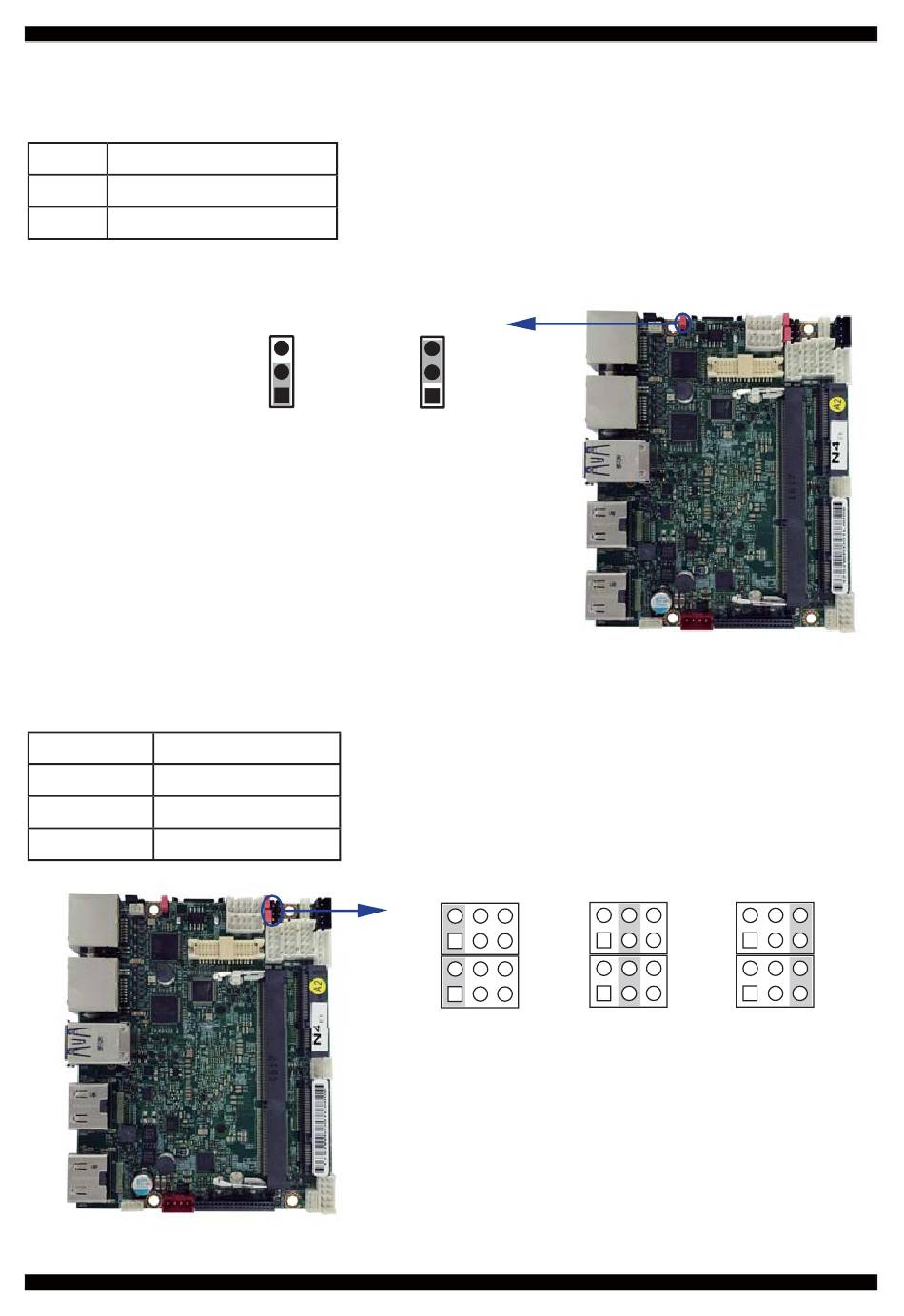

2-10 JVL1: LCD panel power select
JVL1 DESCRIPTION
1-2 +5V
*2-3 +3.3V
Note: Attention! Check Panel Power in spec
2-11 JVC1/JVC2: COM1/2 RI & power select
JVC1/JVC2 DESCRIPTION
*1-2 RI
3-4 +5V
5-6 +12V
JVL1
3
3
2
2
1
1
*+3.3V
+5V
JVC2
2 4 6 2
1 3 5
1 3 5
JVC1
*RI Signal
24
4 6 2 4 6
1 3 5
+5V
+12V
