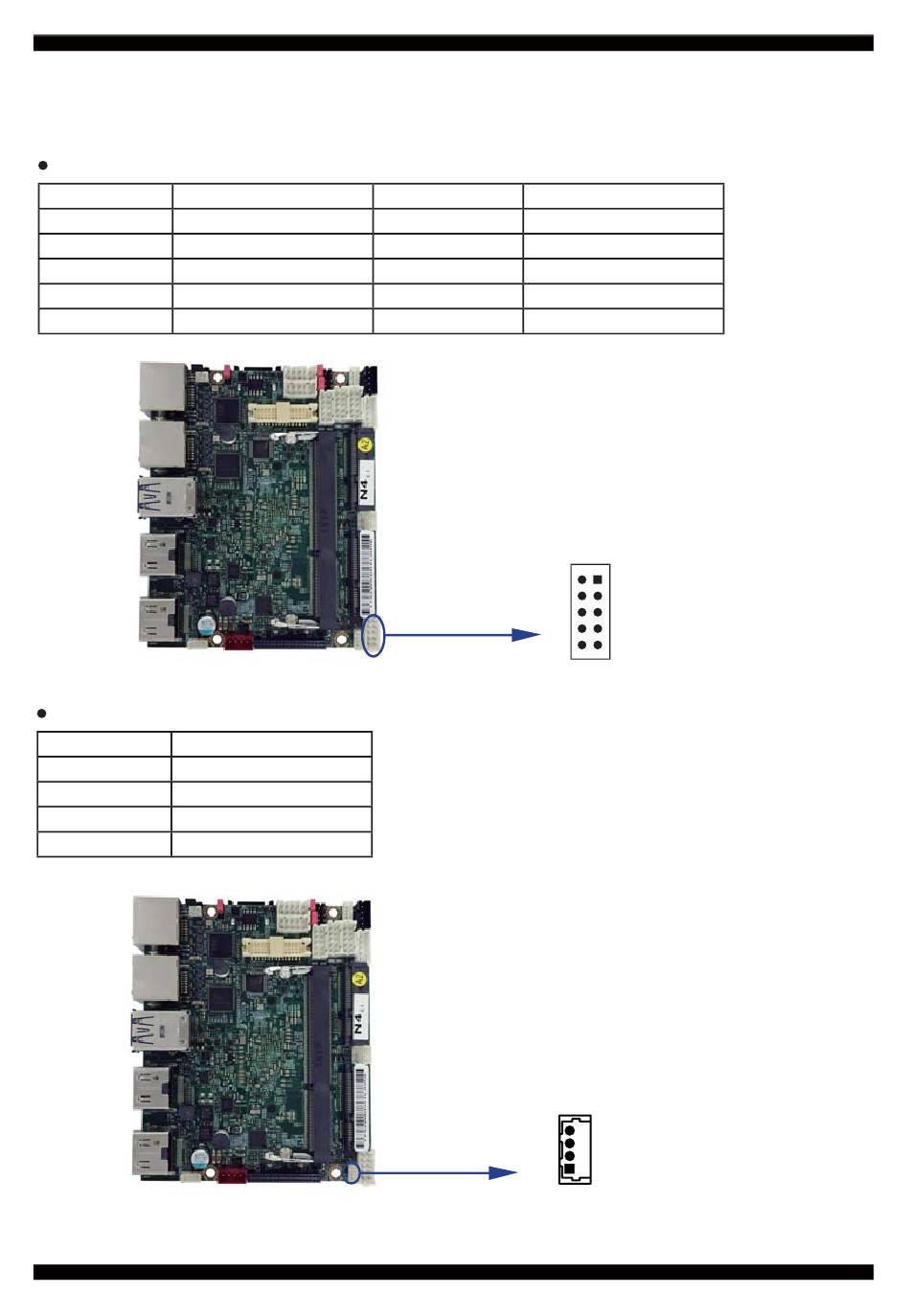

3-3 Audio interface

CA3: Line-out / Line-in / Mic-in wafer connector (2x5pin 2.0mm)
PIN NO. DESCRIPTION
1 Line-out-R
3 Line-in-R
5 GND
7 Line-in-L
9 Line-out-L
CALR1: Amplifi er wafer connector (1x4pin 1.25mm wafer)
PIN NO. DESCRIPTION
1 L_OUT+
2 L_OUT-
3 R_OUT-
4 R_OUT+
PIN NO. DESCRIPTION
2 MIC-IN
4 GND
6 GND
8 +5V
10 MIC-IN
CA3
10
CALR1
pin1
27
pin1
