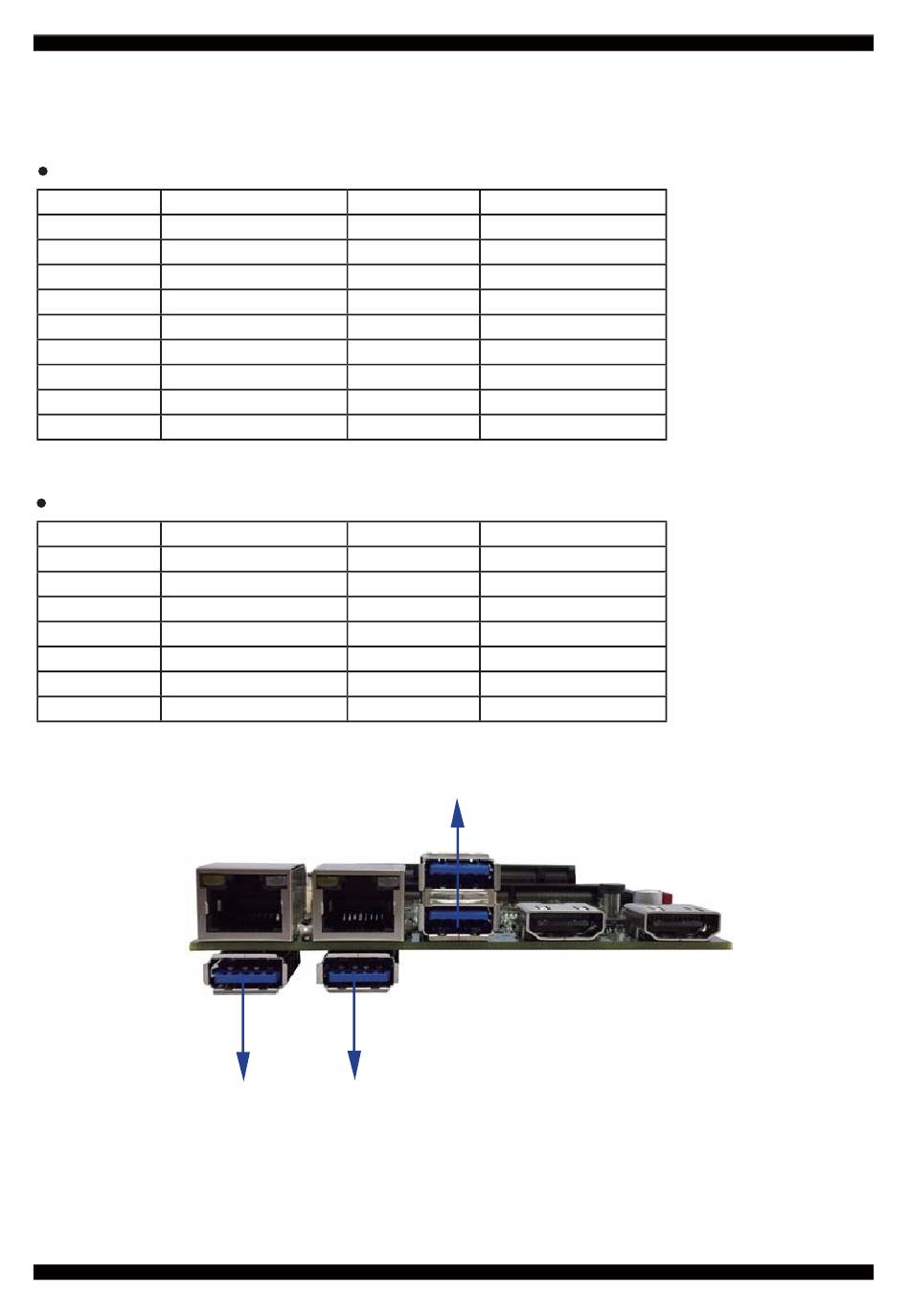

3-11 USB Interface

CU12: Dual-USB3.0 / 2.0 Type A Connector
PIN NO. DESCRIPTION
1
2 USB 2.0 D-(UP)
3 USB 2.0 D+(UP)
4
5 USB3.0 RX-(UP)
6 USB3.0 RX+(UP)
7
8 USB3.0 TX-(UP)
9 USB3.0 TX+(UP)
CU3 / CU4: USB3.0 / 2.0 Type A Connector
PIN NO. DESCRIPTION
1
2 USB 2.0 D-
3 USB 2.0 D+
4
PIN NO.
+5V
GND
GND
PIN NO.
+5V
GND
CU4 CU3
DESCRIPTION
10 +5V
11 USB 2.0 D-(DOWN)
12 USB 2.0 D+(DOWN)
13 GND
14 USB3.0 RX-(DOWN)
15 USB3.0 RX+(DOWN)
16 GND
17 USB3.0 TX-(DOWN)
18 USB3.0 TX+(DOWN)
DESCRIPTION
10 GND
9 USB3.0 TX+
8 USB3.0 TX-
7 GND
6 USB3.0 RX+
5 USB3.0 RX-
CU12
