Coms Battery Connector - Lex System 2I392CW Manual

HDMI1: HDMI connector
HDMI2: HDMI connector
EIO1: eIO port 2x20pin (1.27mm) Wafer

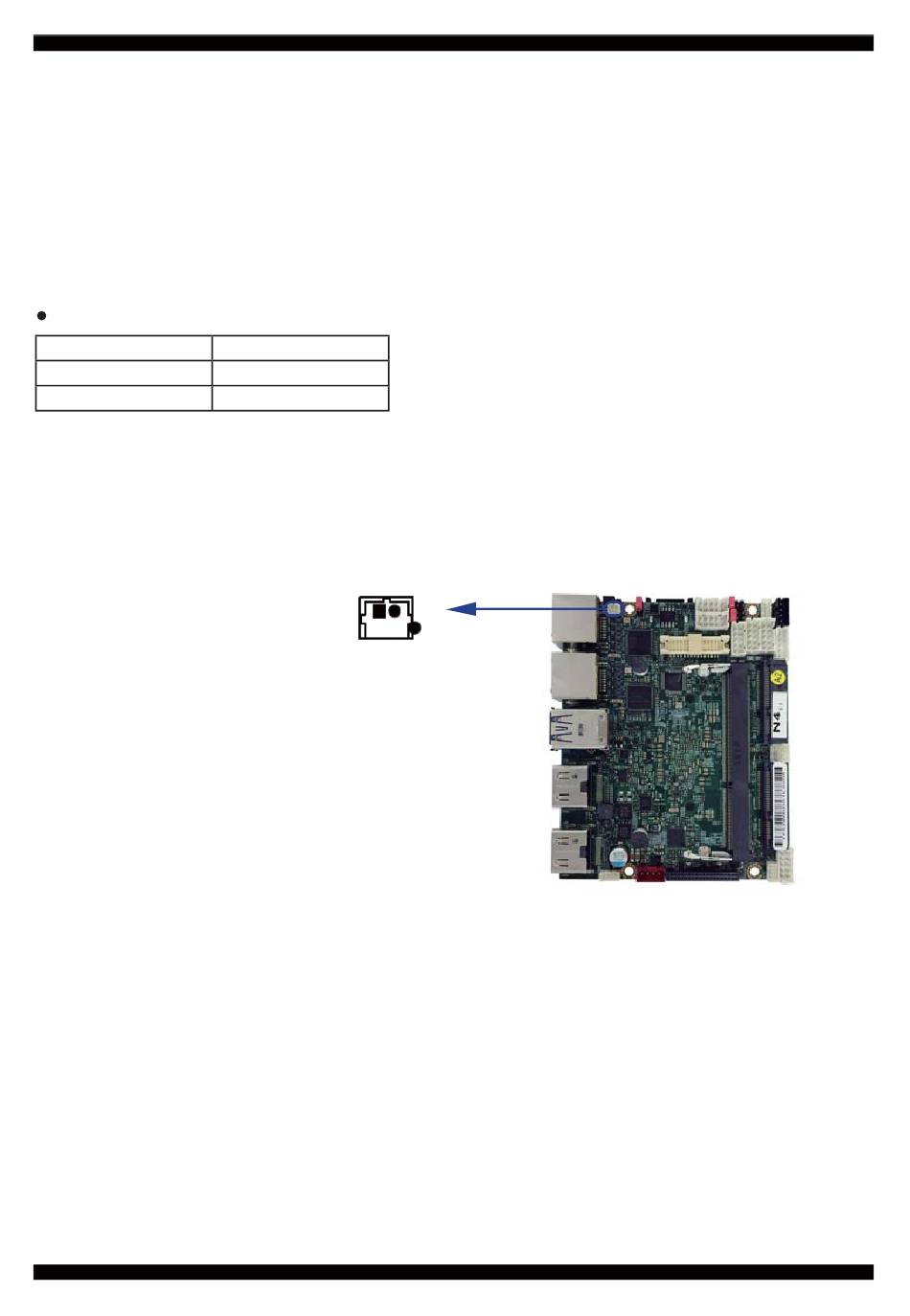

3-2 CMOS battery connector
CBT1: 3V Battery wafer connector (1x2pin 1.25mm)
PIN NO.
1
2
* Batter use Li 3V / 220mA (CR2032)
Note:
1. When the board without Adaptor plug in, this board power RTC consumption about 2.7uA
2. If adaptor always plug in RTC power consumption about 0.1uA
DESCRIPTION
GND
+3V
CBT1
pin1
26
