LVDS Panel resolution table list
Item Resolution
1 640 x 480
2 800 x 600
3 1024 x 768
4 800 x 480
5 1024 x 600
6 1280 x 800
7 1366 x 768
8 800 x 600
9 1024 x 768
10 1280 x 800
11 1366 x 768
12 1280 x 1024
13 1440 x 900
14 1600 x 1200
15 1920 x 1080
The item 3 is default resolution.

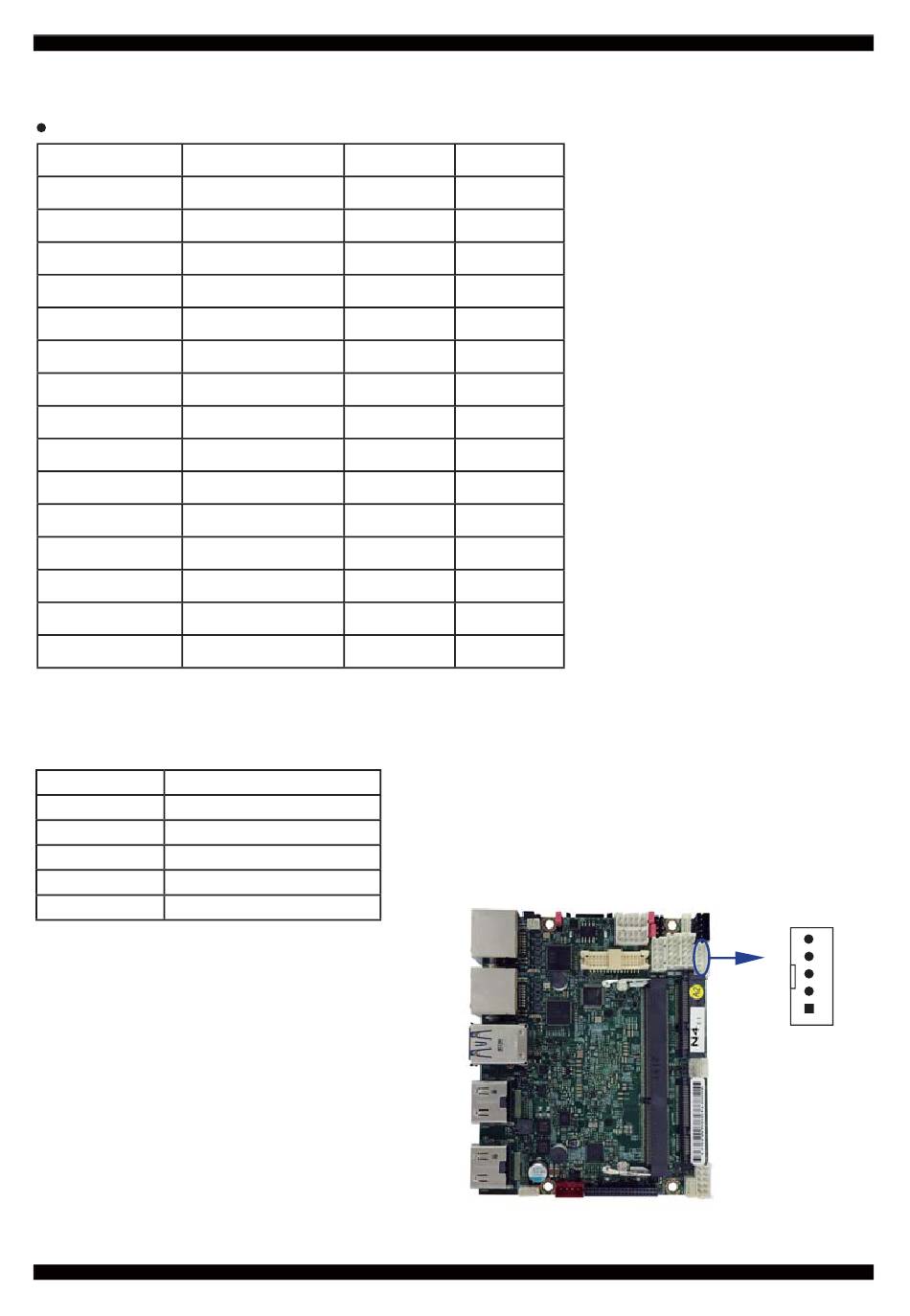

3-13 CPP1: Panel Inverter power (1x5pin 2.0mm wafer)

PIN NO. DESCRIPTION
1 +12V
2 GND
3 PWM dimming
4 ENBKL (3.3V)
5 ENBKL ( 5V )
Note:
1. CPP1 PIN 3 and LVDS1 PIN1 is same signal.
2. Pin 3 back light dimming controls, provided
200Hz / 275Hz / 380Hz / 20KHz / 25KHz
/ 100Hz and adjust PWM duty cycle by software
program.
Channel bits
1 18
1 18
1 18
1 18
1 18
1 18
1 18
1 24
1 24
1 24
1 24
2 24
2 24
2 24
2 24
55
CPP1
pin1
